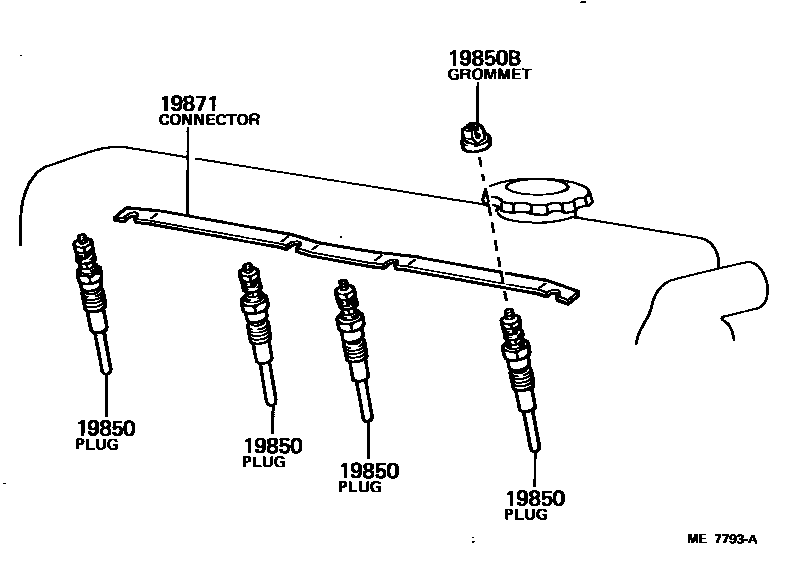

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-48010i2J..JY30197903-198008

*12V-10.5V

sub19850-68010

sub90189-04024

main19850-54010iL..LY20,30197903-198004

*12V-11V

sub19850-54090

sub90179-04019

main19850-54030iL,2L..LY20,3#198004-198409

*12V-11V

sub19850-54031

main19850-54030i2J..JY30197909-198004

HONG KONG SPEC,*12V-11V

sub19850-54031

main19850-54031i2L..LY31198409-198507

*BV-GV=12V-11V

main19850-68010i2J..JY30198008-198308

*BV-GV=12V-10.5V,*12V-10.5V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024iL..LY20,30197909-198004

HONG KONG SPEC

main90189-04024iL,2L..LY20,3#198004-198507

main90189-05011i2J..JY30197903-198008

NO.4

main90189-06004iL..LY20,30197903-198004

main90189-06004i2J..JY30197903-198008

NO.1,NO.2,NO.3

19871CONNECTOR, GLOW PLUG NO.1

main19871-48010i2J..JY30197903-198308

main19871-54010iL,2L..LY20,3#197903-198507

sub19871-54011

3 parts on this diagram · 3 diagrams in section
