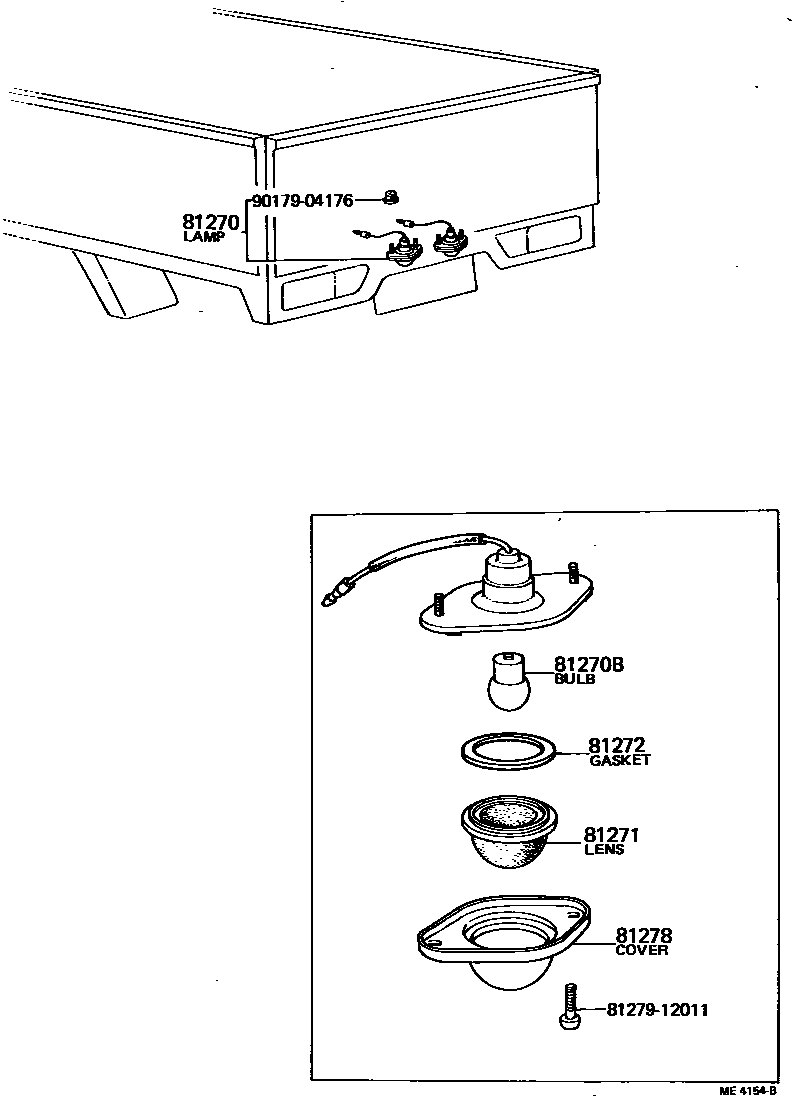

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-19015iJY16,RY1#197109-197402

sub81270-29255

main81270-29255iJY16,RY1#197402-197902

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11100iJY16,RY1#197109-197902

12V 10W,12V 10W

81271LENS, LICENSE PLATE LAMP

main81271-10010iJY16,RY1#197109-197902

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010iJY16,RY1#197109-197902

81278COVER, LICENSE PLATE LAMP

main81278-10011iJY16,RY1#197109-197902

8127912011WASHER, SIDE TURN SIGNAL LAMP

main81279-12011

9017904176

main90179-04176

7 parts on this diagram · 2 diagrams in section
