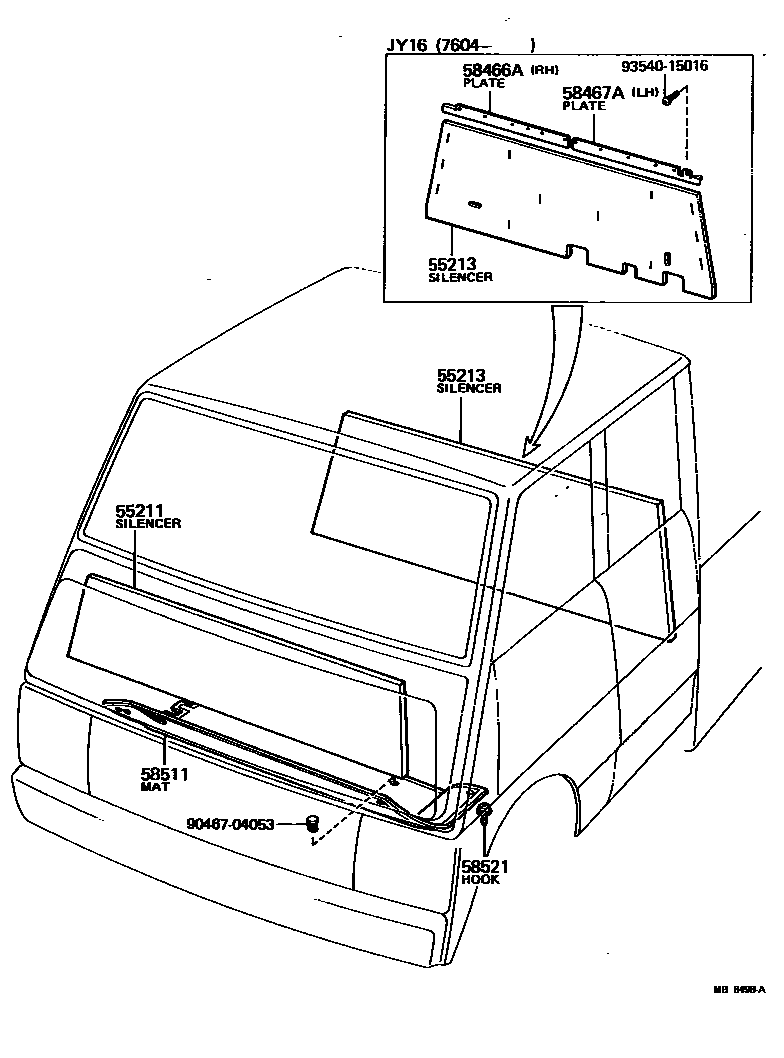

FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95010iJY16..RHD197109-197902

FOR ARCTIC COUNTRY

55213SILENCER, BACK PANEL

main55206-95010iJY16197309-197604

main55207-95010iJY16197604-197902

main55213-95010iJY16..RHD197109-197902

FOR ARCTIC COUNTRY

58466APLATE, BACK PANEL SILENCER, NO.1 RH

main58466-95010iJY16..RHD197604-197902

main58468-95010iJY16..LHD197604-197902

58467APLATE, BACK PANEL SILENCER NO.1, LH

main58467-95010iJY16197604-197902

58511MAT, FLOOR, FRONT

main58510-95024iRY1#..RHD197109-197207

main58510-95025iRY1#..LHD197109-197207

main58510-95026iJY16,RY1#..RHD197207-197611

main58510-95027iRY1#..LHD197207-197611

main58510-95029iJY16..LHD197207-197902

main58510-95031iJY16,RY1#..RHD197611-197902

main58510-95032iRY1#..LHD197611-197902

58521HOOK, MALE, NO.1

main90530-04002×11iJY16,RY1#197702-197902

main90530-04004×11iJY16,RY1#197109-197702

sub90530-04001

9046704053

main90467-04053

9354015016

main93540-15016

8 parts on this diagram · 1 diagram in section
