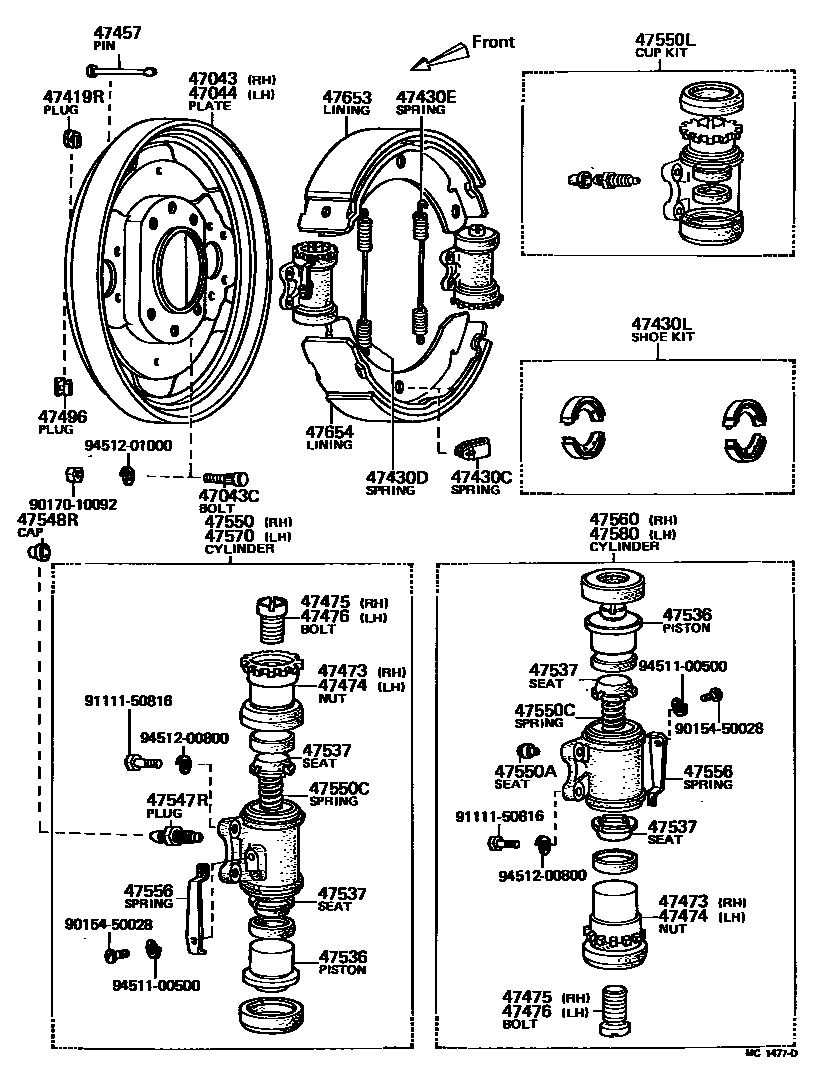

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-25020iRY10197109-197902

main47043-25030iJY16,RY12..15T197109-197902

main47043-36030iJY16,RY16..20T197207-197708

main47043-36050iJY16,RY16..20T197708-197902

sub47043-36051

sub47492-28010

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-35010×12iJY16,RY12..15T197109-197902

sub42184-35011

main90101-10061×12iJY16,RY16..20T197207-197709

10-1.25PX27-18

main90109-10024×12iJY16,RY16..20T197709-197902

10-1.25PX39-30

main90114-10010×12iRY10197109-197902

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47043-25020iRY10197109-197902

main47043-25030iJY16,RY12..15T197109-197902

main47043-36030iJY16,RY16..20T197207-197708

main47044-36010iJY16,RY16..20T197708-197902

sub47044-36011

sub47492-28010

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iRY10197708-197902

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-30010×4iRY10197708-197902

main90501-20012×4iJY16,RY16..20T197708-197902

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071×2iRY1#197109-197202

main90506-26372×2iRY10,12197202-197708

main90506-29216×2iJY16,RY16..20T197207-197708

sub90507-29006

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071×2iRY1#197109-197202

main90506-26372×2iRY10,12197202-197708

main90506-29216×2iJY16,RY16..20T197207-197708

sub90507-29006

47430LSHOE KIT, REAR BRAKE

main04494-25010iRY10,12197109-197311

main04494-25011iRY10,12197311-197902

sub04494-25012

main04494-36020iJY16,RY16..20T197207-197708

sub04494-36200

main04494-36040iJY16,RY16..20T197708-197902

sub04494-36041

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iJY16,RY16..20T197401-197708

main47447-30020×4iRY10,12197402-197902

main47447-35010×4iJY16,RY16197207-197401

main47447-36020×4iJY16,RY16..20T197708-197902

main47447-40010×4iRY10,12197202-197402

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36012×2iJY16,RY16..20T197610-197708

main47551-36071×2iJY16,RY16..20T197708-197710

main47552-25010×2iJY16,RY16197207-197410

main47552-25040×2iRY10,12197109-197710

main47552-36011×2iJY16,RY16..20T197410-197610

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47551-25010×2iJY16,RY16197207-197410

main47551-25040×2iRY10,12197109-197709

main47551-36011×2iJY16,RY16..20T197410-197610

main47552-36012×2iJY16,RY16..20T197610-197708

main47552-36071×2iJY16,RY1#197710-197902

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36011×2iJY16,RY16..20T197610-197708

main47553-36021×2iJY16,RY16..20T197708-197710

main47554-25010×2iRY10,12197109-197710

sub47554-25020

main47554-36010×2iJY16,RY16..20T197207-197610

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47553-25010×2iRY10,12197109-197710

sub47553-25020

main47553-36010×2iJY16,RY16..20T197207-197610

main47554-36011×2iJY16,RY16..20T197610-197708

main47554-36021×2iJY16,RY16..20T197708-197710

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20020×4iJY16,RY1#197503-197708

main47491-35021×4iJY16,RY1#197109-197503

main47491-36010×4iJY16,RY1#197810-197902

sub47491-36020

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-36060×4iJY16,RY16..20T197708-197902

main47531-25020×4iJY16,RY16..20T197207-197708

sub47536-36040

main47531-35030×4iRY10,12197109-197902

sub47531-35090

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-30011×8iJY16,RY1#197501-197902

main47533-35030×8iJY16,RY1#197109-197501

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iJY16,RY1#197109-197902

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iJY16,RY1#197109-197902

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29085iRY10,12197109-197902

sub47550-29215

main47550-29145iJY16,RY16197207-197410

main47550-29146iJY16,RY16..20T197410-197708

main47550-39235iJY16,RY16..20T197708-197902

sub47550-36050

47550ASEAT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90410-03015×2iJY16,RY1#197109-197708

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×4iRY10,12197109-197510

main90501-09483×4iJY16,RY16197207-197510

47550LCUP KIT, REAR WHEEL CYLINDER

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-35010×4iRY10,12197410-197710

main47555-36010×4iJY16,RY16..20T197410-197610

main47555-36011×4iJY16,RY16..20T197610-197708

main47555-36020×4iJY16,RY16..20T197708-197710

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-29015iRY10,12197109-197902

sub47560-29075

main47560-29025iJY16,RY16197207-197410

main47560-29026iJY16,RY16..20T197410-197708

main47560-39085iJY16,RY16..20T197708-197902

sub47560-36050

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-29015iRY10,12197109-197902

sub47570-29075

main47570-29025iJY16,RY16197207-197410

main47570-29026iJY16,RY16..20T197410-197708

main47570-39075iJY16,RY16..20T197708-197902

sub47570-36050

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-29015iRY10,12197109-197902

sub47580-29075

main47580-29025iJY16,RY16197207-197410

main47580-29026iJY16,RY16..20T197410-197708

main47580-39075iJY16,RY16..20T197708-197902

sub47580-36050

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-25010×2iRY10,12197109-197311

main47651-25011×2iRY10,12197311-197902

main47651-36020×2iJY16,RY16..20T197207-197708

sub47651-36040

main47651-36070×2iJY16,RY16..20T197708-197902

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-25010×2iRY10,12197109-197311

main47651-25011×2iRY10,12197311-197902

main47651-36020×2iJY16,RY16..20T197207-197708

sub47651-36040

main47651-36070×2iJY16,RY16..20T197708-197902

9015450028

main90154-50028

9017010092

main90170-10092

9111150816

main91111-50816

9451100500

main94511-00500

9451200800

main94512-00800

9451201000

main94512-01000

34 parts on this diagram · 5 diagrams in section
