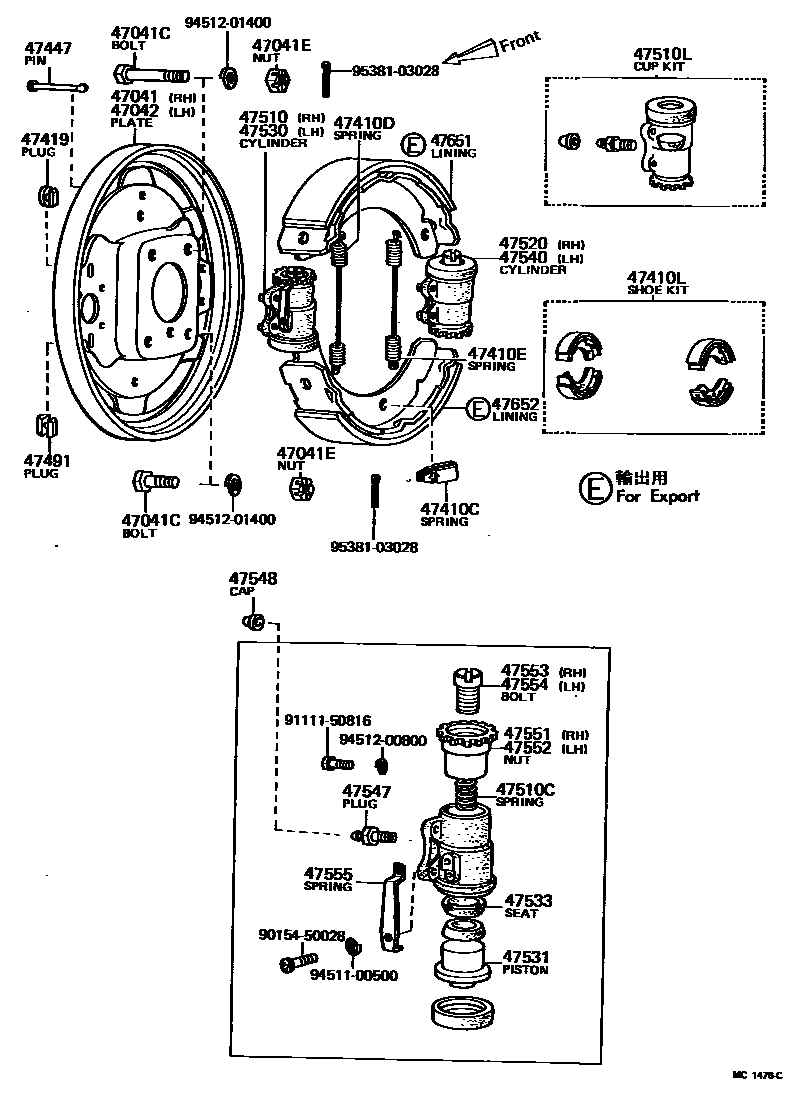

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-25010iRY10,12197109-197902

main47041-36030iJY16,RY16..20T197207-197708

main47041-36050iJY16,RY16..20T197708-197902

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90102-12038iJY16,RY16..20T197207-197708

main90102-14052iJY16..15T197109-197902

14-1.5PX106.5-21

main90102-14053iRY10,12197109-197902

14-1.5PX37.5-22

47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90171-12028iJY16,RY16..20T197207-197708

main94145-51400iRY10,12197109-197902

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47041-25010iRY10,12197109-197902

main47041-36030iJY16,RY16..20T197207-197708

main47042-36020iJY16,RY16..20T197708-197902

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main47446-30010iJY16,RY1#197109-197902

main90501-20012iJY16,RY16..20T197708-197902

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26071iRY1#197109-197202

main90506-26372iJY16..15T197202-197902

main90506-29216iJY16,RY16..20T197207-197708

sub90507-29006

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26071iRY1#197109-197202

main90506-26372iJY16..15T197202-197902

main90506-29216iJY16,RY16..20T197207-197708

sub90507-29006

47410LSHOE KIT, FRONT BRAKE

main04494-25010iRY10,12197109-197311

sub04494-25011

main04494-25011iRY10,12197311-197902

sub04494-25012

main04494-36020iJY16,RY16..20T197207-197708

sub04494-36200

main04494-36040iJY16,RY16..20T197708-197902

sub04494-36041

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iJY16,RY1#197109-197902

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20010iJY16,RY16..20T197401-197708

main47447-30020iJY16..15T197402-197902

main47447-35010iRY1#197109-197401

main47447-35020iJY16,RY16..20T197708-197902

main47447-40010iRY10,12197202-197402

sub47447-30020

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020iJY16,RY1#197503-197810

main47491-35021iJY16,RY1#197109-197503

sub47491-36010

main47491-36010iJY16,RY1#197810-197902

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-29085iJY16..15T197109-197710

sub47510-39126

main47510-29135iJY16,RY16..20T197410-197708

sub47510-39047

main47510-39046iJY16,RY16197207-197410

sub47510-39047

main47510-39125iJY16,RY16..20T197708-197710

sub47510-39126

main47510-39126iJY16,RY1#197710-197902

sub47510-69055

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122iRY10,12197109-197309

main90501-10759iJY16,RY1#197312-197902

main90502-10052iJY16,RY16197207-197312

sub04499-25010

47510LCUP KIT, FRONT WHEEL CYLINDER

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-29085iJY16..15T197109-197710

sub47510-39126

main47510-39126iJY16..15T197710-197902

sub47510-69055

main47520-29055iJY16,RY16..20T197410-197708

sub47520-39038

main47520-39037iJY16,RY16197207-197410

sub47520-39038

main47520-39095iJY16,RY16..20T197708-197902

sub47520-69015

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-29085iRY10,12197109-197710

sub47530-39126

main47530-29135iJY16,RY16..20T197410-197708

sub47530-39047

main47530-39046iJY16,RY16197207-197410

sub47530-39047

main47530-39125iJY16,RY16..20T197708-197710

sub47530-39126

main47530-39126iJY16,RY1#197710-197902

sub47530-69045

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47051-36021iJY16,RY16197207-197410

sub47051-36022

main47051-36022iJY16,RY16..20T197410-197708

main47531-60010iRY10,12197109-197902

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-25010iJY16,RY1#197312-197902

main47533-26010iRY10,12197109-197309

sub04499-25010

main47533-36020iJY16,RY16197207-197312

sub04499-25010

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-29085iRY10,12197109-197710

sub47530-39126

main47530-39126iJY16..15T197710-197902

sub47530-69045

main47540-29055iJY16,RY16..20T197410-197708

sub47540-39037

main47540-39036iJY16,RY16197207-197410

sub47540-39037

main47540-39095iJY16,RY16..20T197708-197902

sub47540-69015

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iJY16,RY1#197109-197902

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iJY16,RY1#197109-197902

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-36012iJY16,RY16..20T197610-197708

LH.SCREW

main47551-36041iJY16,RY16..20T197708-197902

LH.SCREW

main47552-25030iJY16..15T197309-197710

LH.SCREW

main47552-35010iRY10,12197109-197309

LH.SCREW

main47552-36010iJY16,RY16197207-197410

LH.SCREW

sub47552-36011

main47552-36011iJY16,RY16..20T197410-197610

LH.SCREW

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47551-25030iJY16..15T197309-197710

RH.SCREW

main47551-35010iRY10,12197109-197309

RH.SCREW

main47551-36010iJY16,RY16197207-197410

RH.SCREW

sub47551-36011

main47551-36011iJY16,RY16..20T197410-197610

RH.SCREW

main47552-36012iJY16,RY16..20T197610-197708

RH.SCREW

main47552-36041iJY16,RY16..20T197708-197902

RH.SCREW

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36011iJY16,RY16..20T197610-197708

LH.SCREW

main47553-36021iJY16,RY1#197708-197902

LH.SCREW

main47554-25010iRY10,12197109-197710

LH.SCREW

sub47554-25020

main47554-36010iJY16,RY16..20T197207-197610

LH.SCREW

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47553-25010iJY16..15T197109-197710

RH.SCREW

sub47553-25020

main47553-36010iJY16,RY16..20T197207-197610

RH.SCREW

main47554-36011iJY16,RY16..20T197610-197708

RH.SCREW

main47554-36021iJY16,RY16..20T197708-197902

RH.SCREW

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-35010iRY10,12197109-197710

main47555-36010iJY16,RY16..20T197410-197610

main47555-36011iJY16,RY16..20T197610-197708

main47555-36020iJY16,RY16..20T197708-197902

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-25010iRY10,12197109-197311

main47651-25011iJY16..15T197311-197902

main47651-36020iJY16,RY16..20T197207-197708

sub47651-36040

main47651-36070iJY16,RY16..20T197708-197902

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-25010iRY10,12197109-197311

main47651-25011iRY10,12197311-197902

main47651-36020iJY16,RY16..20T197207-197708

sub47651-36040

main47651-36070iJY16,RY16..20T197708-197902

9015450028

main90154-50028

9111150816

main91111-50816

9451100500

main94511-00500

9451200800

main94512-00800

9451201400

main94512-01400

9538103028

main95381-03028

34 parts on this diagram · 5 diagrams in section
