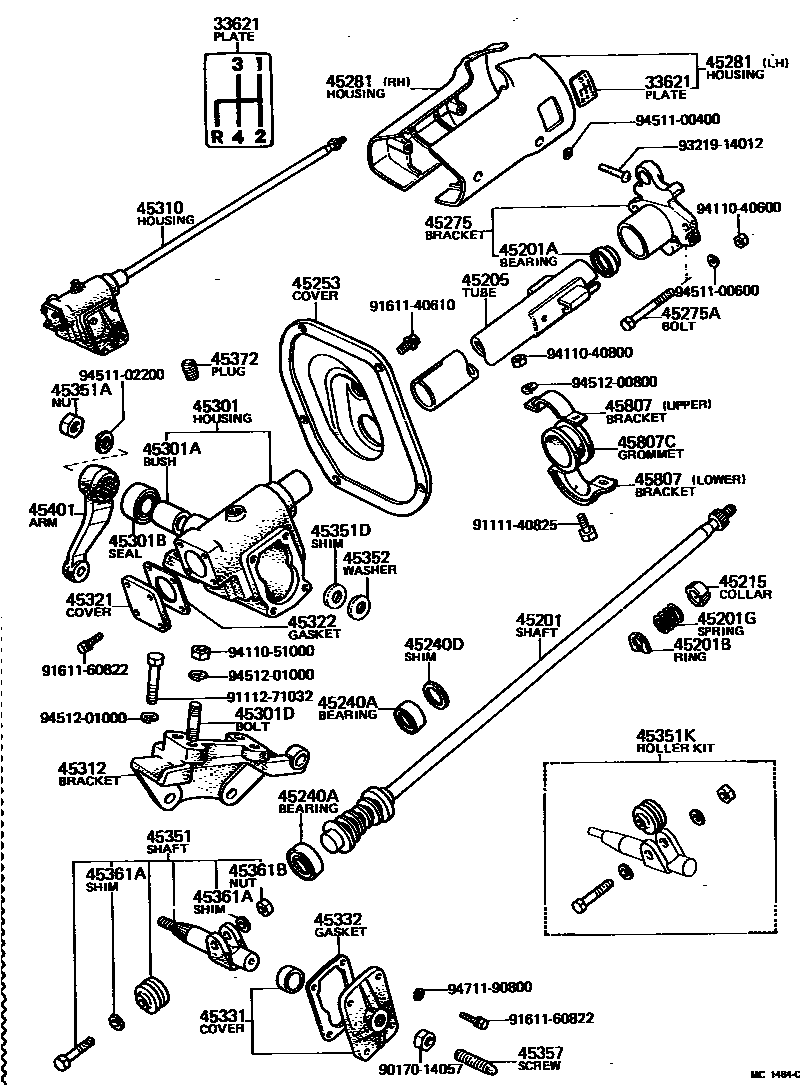

STEERING COLUMN & SHAFT
33621PLATE, CONTROL LEVER CAUTION
45201SHAFT SUB-ASSY, STEERING MAIN
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45215COLLAR, MAIN SHAFT BEARING THRUST
45240DSHIM(FOR STEERING WORM BEARING ADJUST)
T=0.5
T=0.2
T=0.1
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
RH.
LH.
LH.
45301HOUSING SUB-ASSY, STEERING GEAR
45301ABUSH OR BEARING, SECTOR SHAFT, NO.1
45301BSEAL, OIL(FOR SECTOR SHAFT)
sub90310-32005
45301DBOLT, STUD(FOR STEERING GEAR HOUSING)
45312BRACKET, STEERING GEAR HOUSING
45322GASKET, GEAR HOUSING END COVER
T=0.5
T=0.2
T=0.3
45332GASKET, SECTOR SHAFT END COVER
T=0.5
45351SHAFT, STEERING SECTOR
45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45351DSHIM(FOR STEERING SECTOR ADJUSTING)
T=0.50
T=0.30
T=1.00
45351KROLLER KIT, STEERING SECTOR
45352WASHER, SECTOR SHAFT THRUST
T=2.00,T=2.00
T=2.33
T=2.05,T=2.05
T=2.10,T=2.10
T=2.15,T=2.15
T=2.20,T=2.20
45357SCREW, SECTOR SHAFT ADJUSTING
45361ASHIM(FOR STEERING SECTOR ROLLER ADJUST)
45361BNUT(FOR STEERING SECTOR ROLLER SETTING)
45372PLUG, STEERING GEAR HOUSING OIL
ISO
45401ARM SUB-ASSY, PITMAN
45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
UPPER
UPPER
LOWER
LOWER
45807CGROMMET(FOR STEERING COLUMN CLAMP)
9017014057
main90170-14057
9111140825
main91111-40825
9111271032
main91112-71032
9161140610
main91611-40610
9161160822
main91611-60822
9321914012
main93219-14012
9411040600
main94110-40600
9411040800
main94110-40800
9411051000
main94110-51000
9451100400
main94511-00400
9451100600
main94511-00600
9451102200
main94511-02200
9451200800
main94512-00800
9451201000
main94512-01000
9471190800
main94711-90800
51 parts on this diagram · 3 diagrams in section
