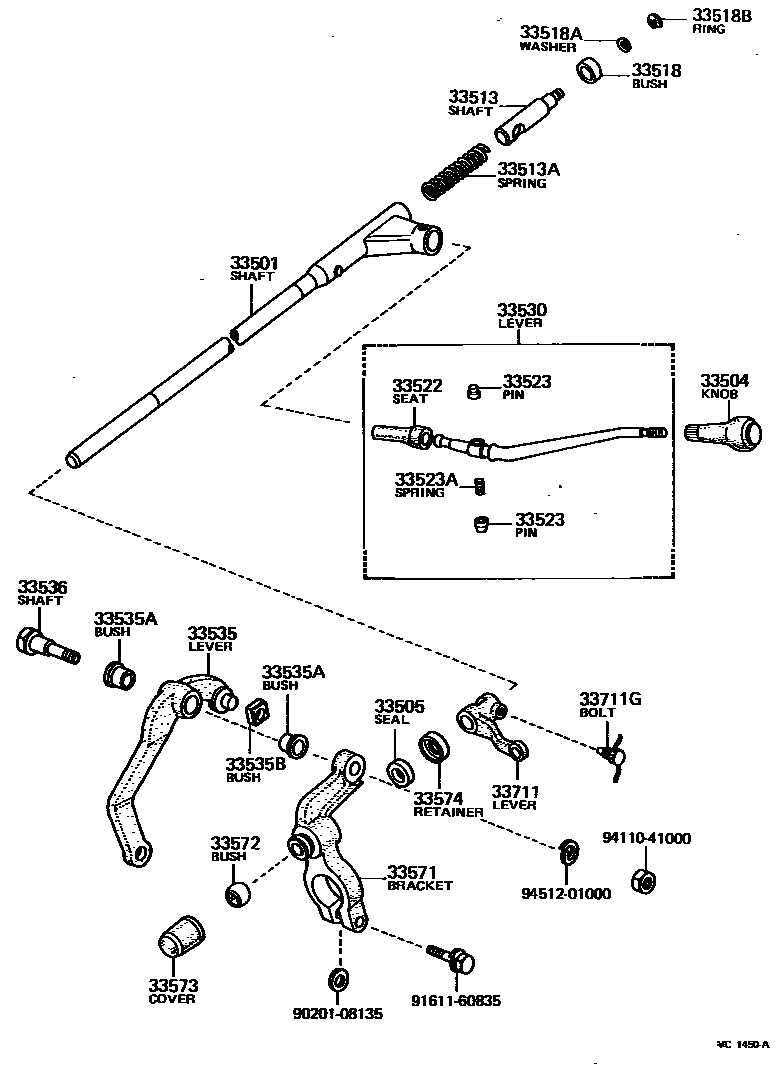

CONTROL SHAFT & CROSSSHAFT
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
sub33504-30110
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
WD=1.4,CW=11
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ASPRING, COMPRESSION
WD=0.4,CW=15
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33535BBUSH, CONTROL SHIFT LEVER
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33573COVER, CONTROL SHAFT DUST, LOWER
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711GBOLT, CONTROL SHAFT LEVER LOCK
9020108135
main90201-08135
9161160835
main91611-60835
9411041000
main94110-41000
9451201000
main94512-01000
26 parts on this diagram · 7 diagrams in section
