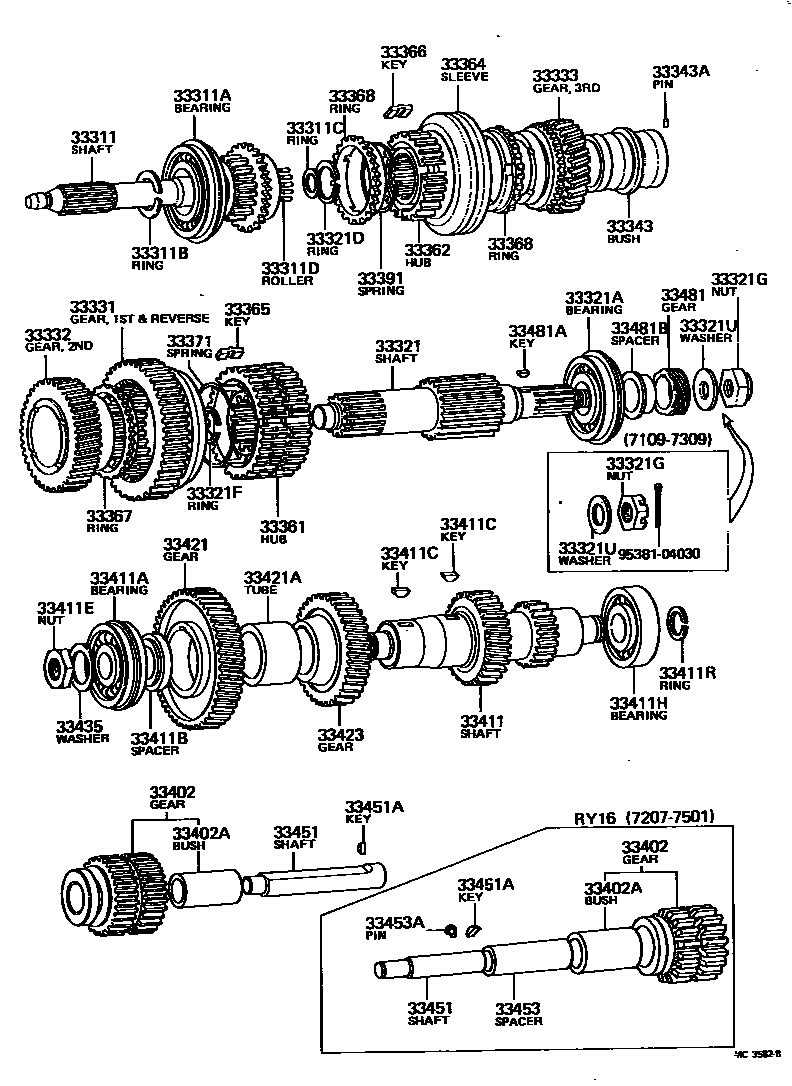

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
N=18
N=18
33311ABEARING (FOR INPUT SHAFT FRONT)
B35 68 C3
6306ZNRC3
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.25-2.35
T=2.35-2.45
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.40,MARK 13,T=2.40-2.45
T=2.50,MARK 15,T=2.50-2.55
T=2.35-2.40,MARK 12,T=2.35-2.40
T=2.45,MARK 14,T=2.45-2.50
T=2.55,MARK 16,T=2.55-2.60
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33321ABEARING (FOR OUTPUT SHAFT REAR)
6207NX1R
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.40-2.45,T=2.40
T=2.45-2.50,T=2.45
T=2.50-2.55,T=2.50
T=2.55-2.60,T=2.55
T=2.60-2.65,T=2.60
T=2.65-2.70,T=2.65
33321FRING, SHAFT SNAP (FOR CLUTCH HUB TO 1ST GEAR)
33331GEAR, REVERSE
N=34
N=38
N=38
N=38
N=38
33333GEAR, 3RD
N=25
N=28
N=28
33343APIN OR BALL (FOR 3RD & 2ND GEAR BUSH)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
N=20
N=27
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411COUNTERSHAFT
N=24,14
N=38,30,21,13,14
N=38,30,21,13,14
N=38,30,21,13,14
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411ENUT(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.1
33421GEAR, COUNTER
N=39
33421ATUBE(FOR COUNTER GEAR)
33423GEAR, COUNTERSHAFT 3RD SPEED
N=32
33435WASHER, COUNTER GEAR CASE SIDE THRUST
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33453SPACER, REVERSE IDLER GEAR SHAFT
33453APIN, W/HEAD
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=4
N=4
N=5
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9538104030
main95381-04030
46 parts on this diagram · 2 diagrams in section
