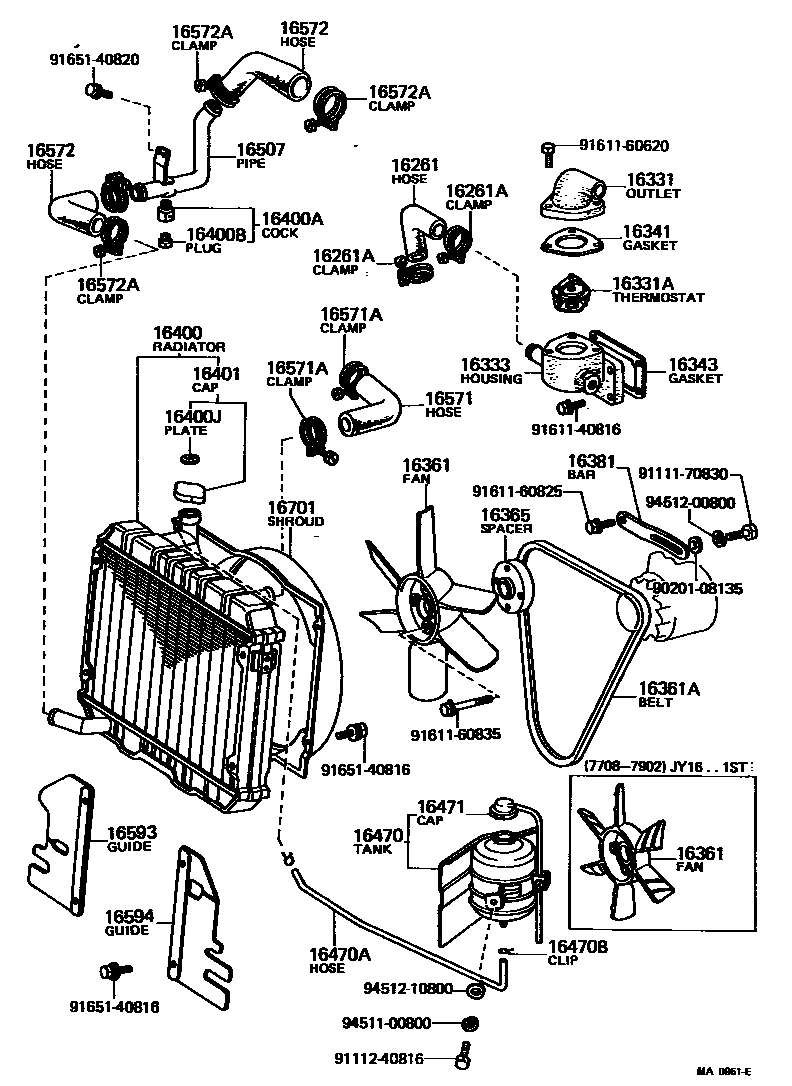

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261HOSE, WATER BY-PASS

main16261-31010i12R..RY10,12197109-197511

main16261-44010i5R..RY16197207-197902

main16261-48010i2J..JY16197207-197902

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-23022i12R,5R..RY1#197109-197411

main96112-10240i2J..JY16197207-197902

16331OUTLET, WATER

main16331-31010i12R..RY10,12197109-197511

sub16331-26030

main16331-31020i12R..RY10,12197109-197309

CAST IRON BODY

main16331-31031i12R..RY10,12197511-197902

main16331-44011i5R..RY16197207-197304

sub16331-44020

main16331-44020i5R..RY16197405-197902

main16331-44021i5R..RY16197304-197405

sub16331-44020

main16331-46010i2J..JY16197207-197902

16331ATHERMOSTAT

main90916-03016i12R..RY10,12197109-197208

WAX 82-95 FUJI-THOMSON

sub90916-03033

main90916-03020i12R..RY10,12197207-197708

WAX 82-95 FUJI-THOMSON

main90916-03021i12R..RY10,12197109-197309

WAX 82-95 KUZEH

sub90916-03038

main90916-03024i5R..RY16197109-197708

WAX 75-85 KUZEH

main90916-03034i2J..JY16197309-197902

WAX 82-95 FUJI-THOMSON

main90916-03037i12R,5R..RY1#197307-197902

WAX 82-95 KUZEH

sub90916-03083

16333HOUSING, WATER OUTLET

main16333-44010i5R..RY16197207-197511

sub16333-44011

main16333-44011i5R..RY16197511-197701

sub16333-44012

main16333-44012i5R..RY16197701-197902

main16333-48010i2J..JY16197207-197708

sub16333-48011

main16333-48011i2J..JY16197708-197902

main16333-48020i2J..JY16197207-197708

TROPICAL

sub16333-48021

main16333-48021i2J..JY16197708-197902

TROPICAL

16341GASKET, WATER OUTLET

main16341-38010i12R,5R..RY1#197809-197902

sub16341-38012

main16341-40010i5R..RY16197207-197701

main16341-46010i2J..JY16197207-197902

sub16341-46011

main16341-49010i12R,5R..RY1#197109-197809

sub16341-38010

16343GASKET, WATER OUTLET HOUSING

main16343-44010i5R..RY16197207-197902

sub16343-44011

main16343-46010i2J..JY16197207-197902

sub16343-46011

16361FAN

main16361-31020i12R..RY1#197109-197206

4 BLADES

sub16361-31021

main16361-31021i12R..RY10,12197206-197902

4 BLADES

main16361-40010i5R..RY16197207-197504

4 BLADES

main16361-44020i5R..RY16197504-197902

6 BLADES

main16361-44030i5R..RY16..LHD197507-197510

CHINA,4 BLADES

sub16361-44031

main16361-44031i5R..RY16..LHD197510-197902

CHINA,5 BLADES

main16361-48020i2J..JY16197207-197708

6 BLADES

main16361-48030i2J..JY16..20T197708-197902

main16361-56030i2J..JY16..15T197708-197902

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02045i2J..JY16..15T197708-197902

sub99343-11070

main90916-02052i12R..RY10,12197511-197612

L=890

sub90916-02060

main90916-02060i12R..RY10,12197612-197804

L=890

sub99332-00890

main90916-02073i2J..JY16..20T197708-197902

main99322-00910i5R..RY16197809-197902

L=910

sub99332-00910

main99332-00890i12R..RY10,12197804-197902

L=890

main99512-10900i5R..RY16197207-197504

L=900

sub99522-10901

main99521-10873i12R..RY1#197109-197206

L=873

sub99321-00870

main99521-10887i12R..RY10,12197312-197511

L=887

sub99321-00885

main99521-10897i12R..RY10,12197206-197312

L=897

sub99321-00895

main99522-10901i5R..RY16197504-197512

L=901

sub99322-00895

main99522-10911i5R..RY16197512-197809

L=911

sub99322-00910

main99523-11037i2J..JY16197207-197708

L=1037

sub90916-02073

16365SPACER, FAN

main16365-60030i2J..JY16197207-197708

16381BAR, FAN BELT ADJUSTING

main16381-31011i12R..RY10,12197109-197511

sub16381-31012

main16381-31012i12R..RY10,12197511-197902

main16381-44021i5R..RY16197207-197512

sub16381-44022

main16381-44022i5R..RY16197512-197902

main16381-48011i2J..JY16197207-197902

16400RADIATOR ASSY

main16400-29025i12R..RY10,12197109-197505

sub16400-29026

main16400-29026i12R..RY10,12197505-197511

main16400-31200i12R..RY10,12197511-197902

main16400-44120i5R..RY16197207-197902

main16400-48051i2J..JY16197601-197708

sub16400-48052

main16400-48052i2J..JY16197708-197710

sub16400-48053

main16400-48053i2J..JY16197710-197902

main16400-49285i2J..JY16197207-197601

sub16400-48051

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main96431-03833i12R..RY10,12197109-197902

sub96431-53828

16400BPLUG, RADIATOR DRAIN COCK

main96431-23814i12R..RY10,12197109-197902

16400JPLATE, RADIATOR CAP CAUTION

main16595-48020i2J..JY16197207-197601

16401CAP SUB-ASSY, RADIATOR

main16401-23070i12R,5R..RY1#197109-197902

sub16401-41021

main16401-41020i2J..JY16197601-197810

sub16401-41021

main16401-41021i2J..JY16197810-197902

main16401-49015i2J..JY16197207-197601

16470TANK ASSY, RADIATOR RESERVE

main16470-48030i2J..JY16197207-197902

main16470-48060i2J..JY16..15T197708-197902

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12867i2J..JY16197311-197902

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2J..JY16197207-197902

16471CAP SUB-ASSY, RESERVE TANK

main16471-41060i2J..JY16197207-197902

sub16471-26020

16507PIPE SUB-ASSY, RADIATOR

main16507-31010i12R..RY10,12197407-197902

main16507-48020i2J..JY16197207-197902

main16577-23010i12R..RY10,12197109-197407

sub16507-31010

main16577-44060i5R..RY16197207-197902

16571HOSE, RADIATOR, INLET

main16572-31010i12R..RY10,12197109-197407

main16572-31030i12R..RY10,12197407-197511

main16572-31031i12R..RY10,12197511-197902

main90916-01051i2J..JY16197207-197902

main90916-01119i5R..RY16197207-197812

sub90916-01144

main90916-01144i5R..RY16197812-197902

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-43005i12R,5R..RY1#197109-197411

sub96111-10430

main90460-48056i2J..JY16197207-197611

sub96111-10480

main90467-37001i5R..RY16197812-197902

WATER OUTLET SIDE

sub90467-37003

main96111-10430i12R,5R..RY1#197411-197902

main96111-10440i5R..RY16197812-197902

RADIATOR SIDE

main96111-10460i2J..JY16197611-197902

16572HOSE, RADIATOR, OUTLET

main16573-48010i2J..JY16197207-197902

PUMP SIDE

main90916-01048i5R..RY16197207-197902

PUMP SIDE

main90916-01110i12R..RY10,12197109-197511

PUMP SIDE

main90916-01111i12R..RY10,12197109-197902

RADIATOR SIDE

main90916-01118i5R..RY16197207-197902

RADIATOR SIDE

main90916-01145i12R..RY10,12197511-197902

PUMP SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i12R..RY10,12197109-197411

ID=47

main90460-48056i5R..RY16197207-197611

ID=48

sub96111-10480

main90460-55021i2J..JY16197207-197902

ID=55

main96111-10460i5R..RY16197411-197902

ID=46

16593GUIDE, RADIATOR AIR, NO.1

main16593-48010i2J..JY16..RHD197207-197902

main16593-48020i2J..JY16..LHD197207-197902

main16593-48020i5R..RY16..LHD197507-197902

CHINA

16594GUIDE, RADIATOR AIR, NO.2

main16594-44010i5R..RY16..LHD197507-197902

CHINA

main16594-48010i2J..JY16..RHD197207-197902

main16594-48020i2J..JY16..LHD197207-197902

16701SHROUD SUB-ASSY, FAN

main16711-31010i12R..RY10,12197109-197902

main16711-48010i2J..JY16197207-197902

main16711-48020i2J..JY16..15T197708-197710

sub16711-48021

main16711-48021i2J..JY16..15T197710-197902

9020108135

main90201-08135

9111170830

main91111-70830

9111240816

main91112-40816

9161140816

main91611-40816

9161160620

main91611-60620

9161160825

main91611-60825

9161160835

main91611-60835

9165140816

main91651-40816

9165140820

main91651-40820

9451100800

main94511-00800

9451200800

main94512-00800

9451210800

main94512-10800

40 parts on this diagram · 4 diagrams in section
