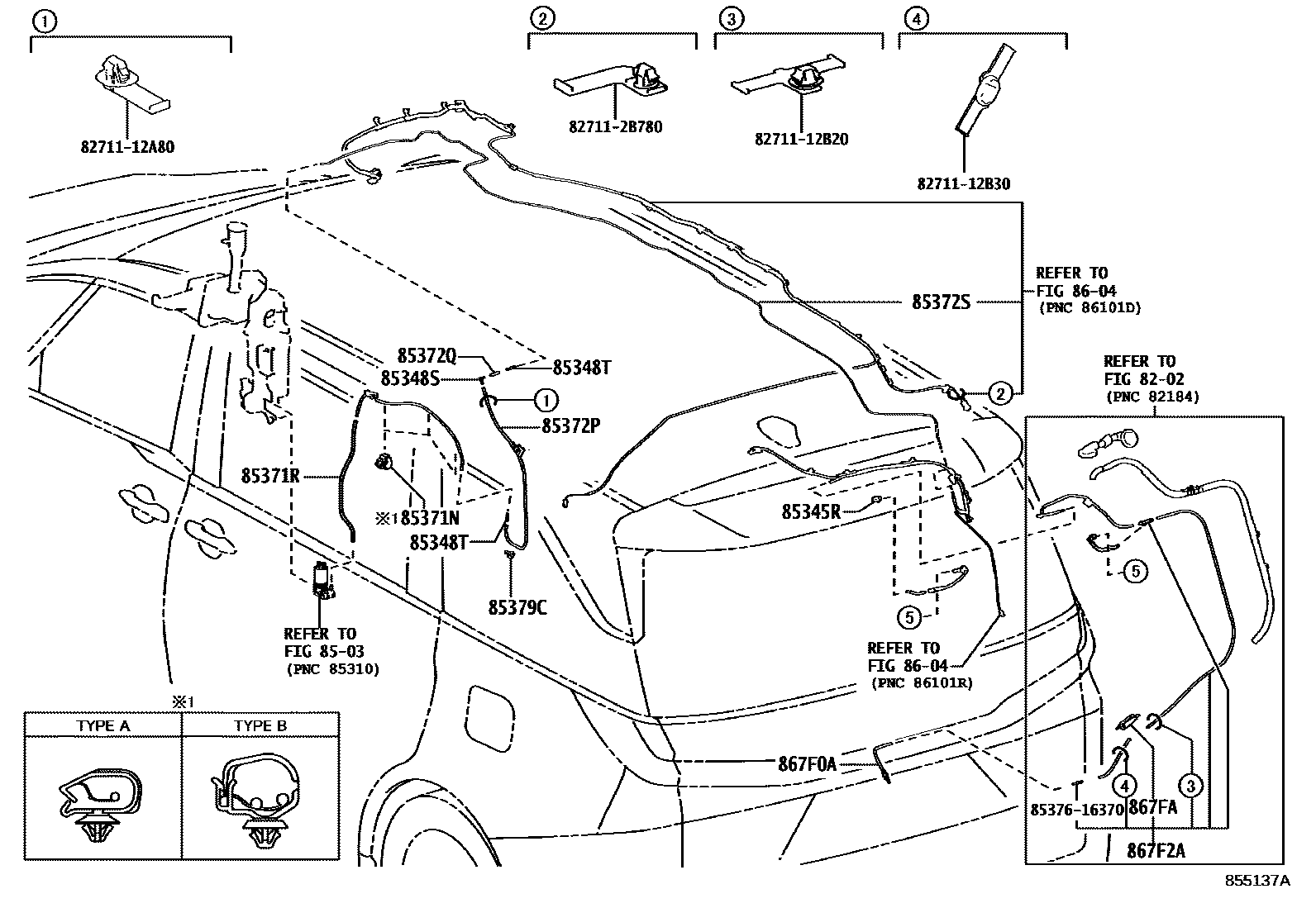

REAR WASHER

8202

8503

85345RNOZZLE, REAR WASHER

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85371NCLAMP, REAR WASHER HOSE

TYPE A

TYPE B

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

L=420

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

L=1000(*H,L=759.5)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

L=1000(*H,L=40.5)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

L=5000(*H,L=4190)

85379CGROMMET, REAR WASHER HOSE NO.1

8604

867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1

867F2AHOSE ASSY, CAMERA CLEANER

867FAFILTER, CLEANER HOSE

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8537616370PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

20 parts on this diagram · 2 diagrams in section
