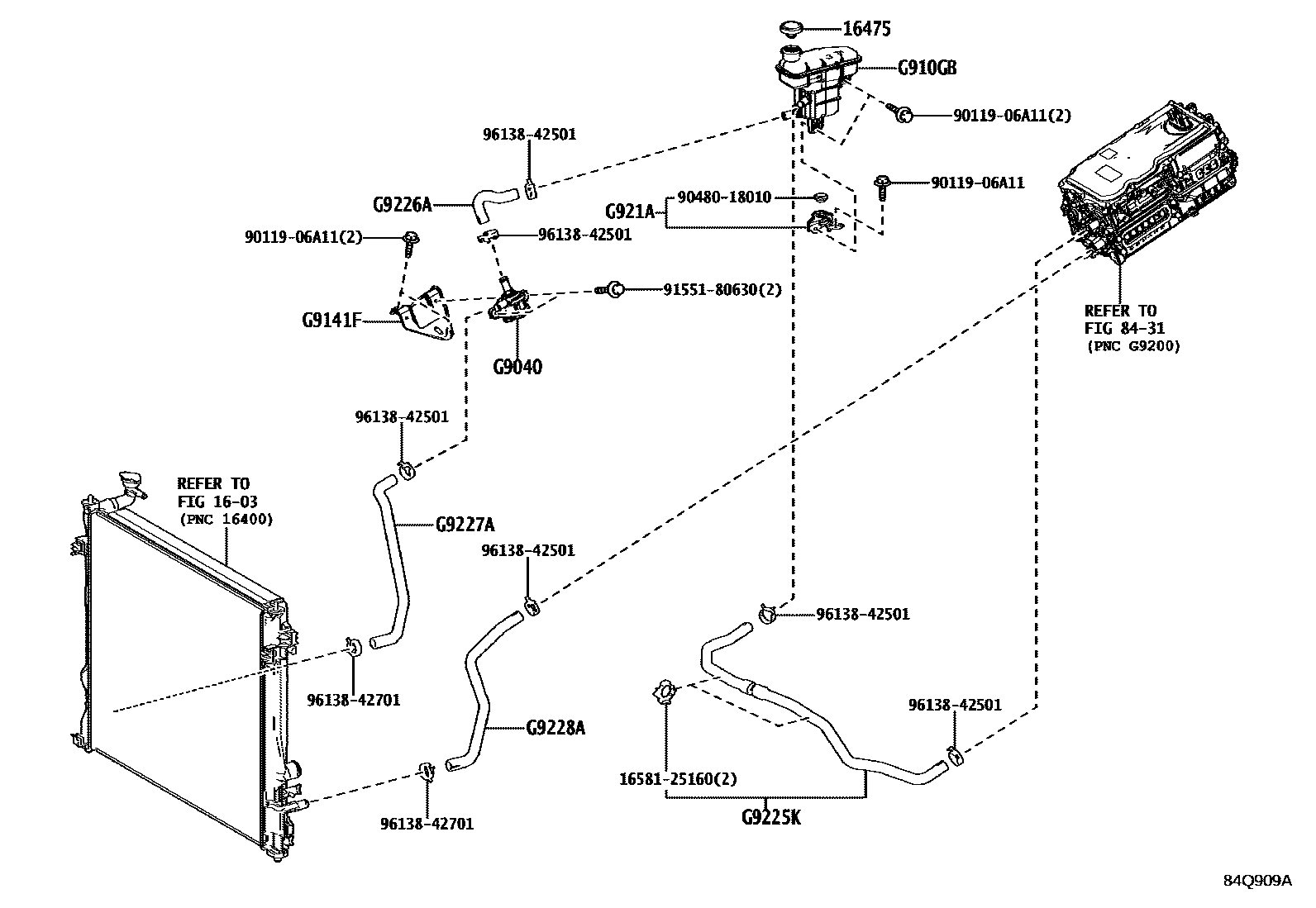

INVERTER COOLING

0001 1 0002 1FRONT HOSE 0003 1REAR HOSE

1603

16475CAP, RESERVE TANK

main16475-28140iA25..AAWH1#202306

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048030iTAWH15202311

mainG904048060iAAWH1#202306

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910GV2010iAAWH1#202306

G9141FBRACKET, HV WATER PUMP

mainG914148040iTAWH15202311

mainG9141V2010iAAWH1#202306

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAAWH1#202306

G9225KHOSE, INVERTER COOLING, NO.1

mainG9225V2010iAAWH1#202306

G9226AHOSE, INVERTER COOLING, NO.2

mainG9226V2010iAAWH1#202306

mainG9226V2020iTAWH15202311

G9227AHOSE, INVERTER COOLING, NO.3

mainG922748070iTAWH15202311

mainG9227V2010iAAWH1#202306

G9228AHOSE, INVERTER COOLING, NO.4

mainG9228V2010iAAWH1#202306

mainG9228V2020iTAWH15202311

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9048018010

main90480-18010

9155180630

main91551-80630

9613842501

main96138-42501

9613842701

main96138-42701

17 parts on this diagram · 3 diagrams in section
