ABS & VSC

4102

8202

8488

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iAAWH1#,TAWH15202306

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-V2010iAAWH1#,TAWH15202306

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-V2020iAAWH1#,TAWH15202306

89542SENSOR, SPEED, FRONT RH

main89542-78041iAAWH1#,TAWH15202306

89543SENSOR, SPEED, FRONT LH

main89543-78041iAAWH1#,TAWH15202306

89544DSENSOR, SKID CONTROL, REAR RH

main89544-48051iAAWH15,TAWH15202306

89544ESENSOR, SKID CONTROL, REAR LH

main89544-48051iAAWH15,TAWH15202306

9011908868

main90119-08868

9167180616

main91671-80616

91673A0616

main91673-A0616

9415180600

main94151-80600

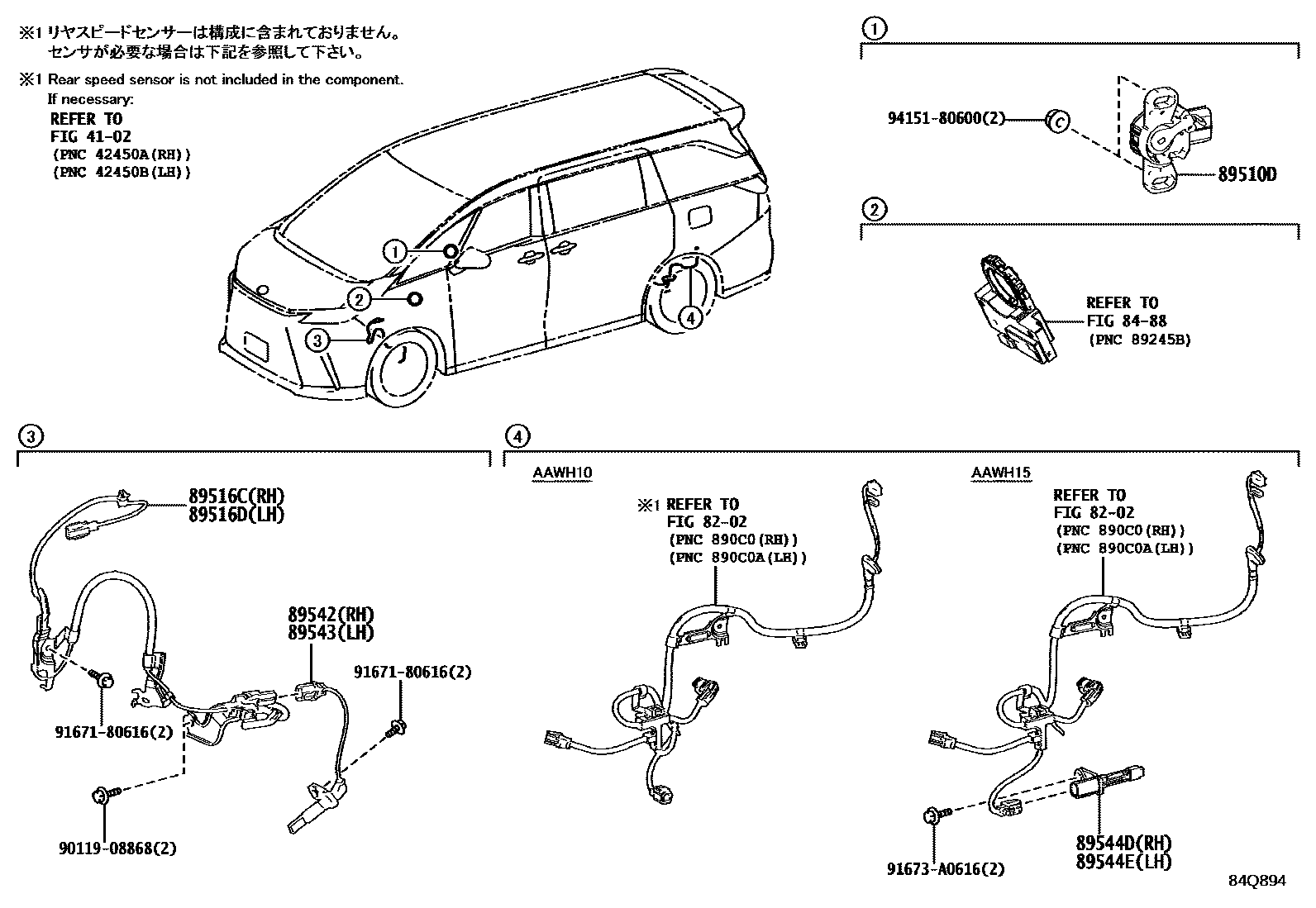

14 parts on this diagram · 1 diagram in section
