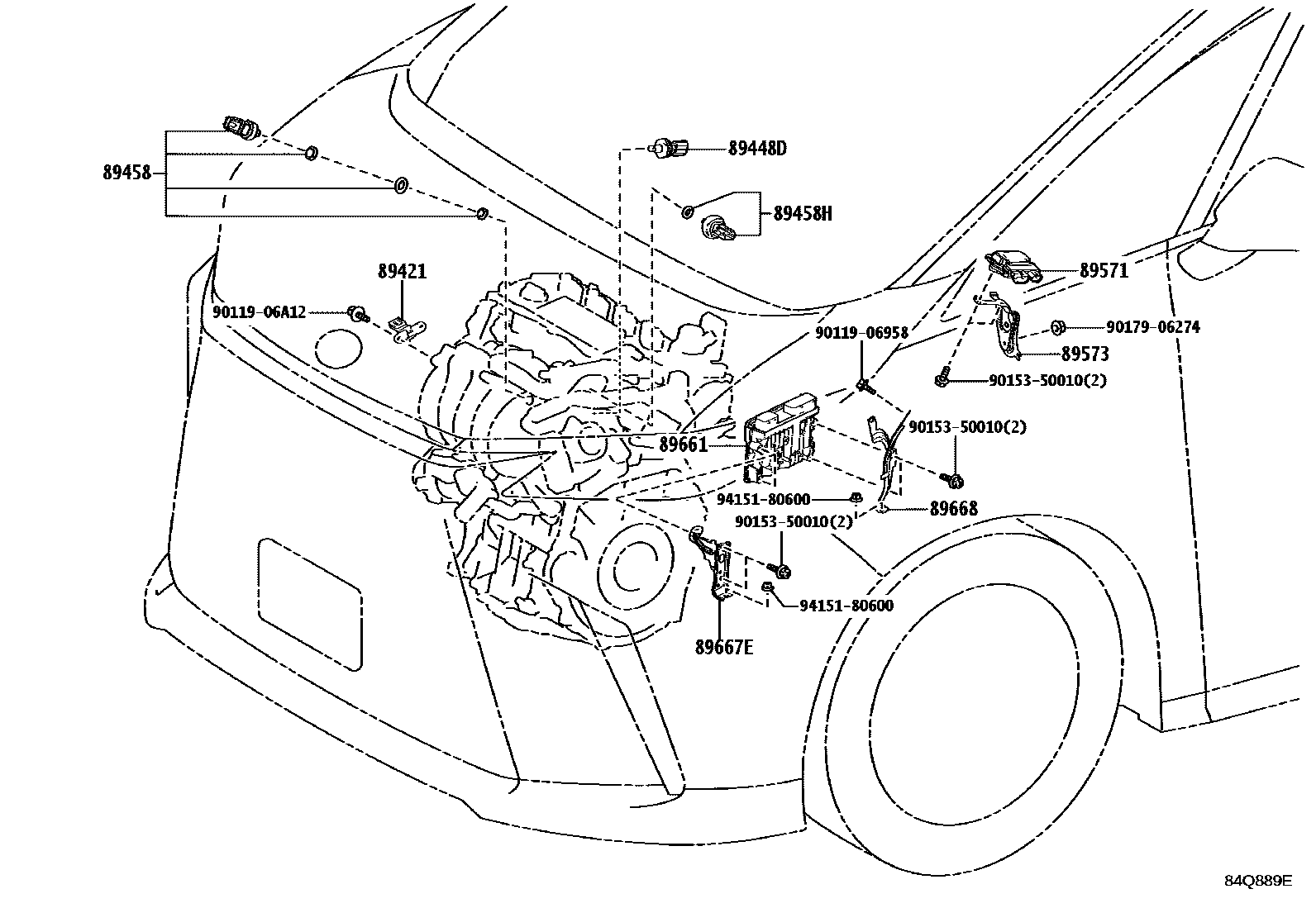

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAAWH1#202306

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAAWH1#202306

89458SENSOR, FUEL PRESSURE

main89458-33030iAAWH1#202306

main89458-78030iTAWH15202311

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iAAWH1#,TAWH15202306

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAAWH1#202306

main89571-58020iTAWH15202311

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-58010iAAWH1#,TAWH15202306

89661COMPUTER, ENGINE CONTROL

main89661-58C10iAAWH1#..ARL,EUR,GEN,PHL,RUS,TWN202306

DENSO,*614

main89661-58C20iAAWH15..CHI202306

DENSO,*614

main89661-58C30iTAWH15202311

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42080iAAWH1#202306-202406

main89667-42081iAAWH1#202407

main89667-58120iTAWH15202311

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48170iAAWH1#,TAWH15202306

9011906958

main90119-06958

9011906A12

main90119-06A12

9015350010

main90153-50010

9017906274

main90179-06274

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
