SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0007 1COWL 0009 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0013 1CONSOLE BOX 0015 1CONSOLE BOX 0017 1CONSOLE BOX 0019 1CONSOLE BOX 0021 1STEERING 0023 1SEAT 0025 1SEAT 0027 1DOOR & ROOF 0029 1FLOOR & BACK DOOR 1/2 0031 1FLOOR & BACK DOOR 2/2 0033 1FLOOR RELAY BLOCK

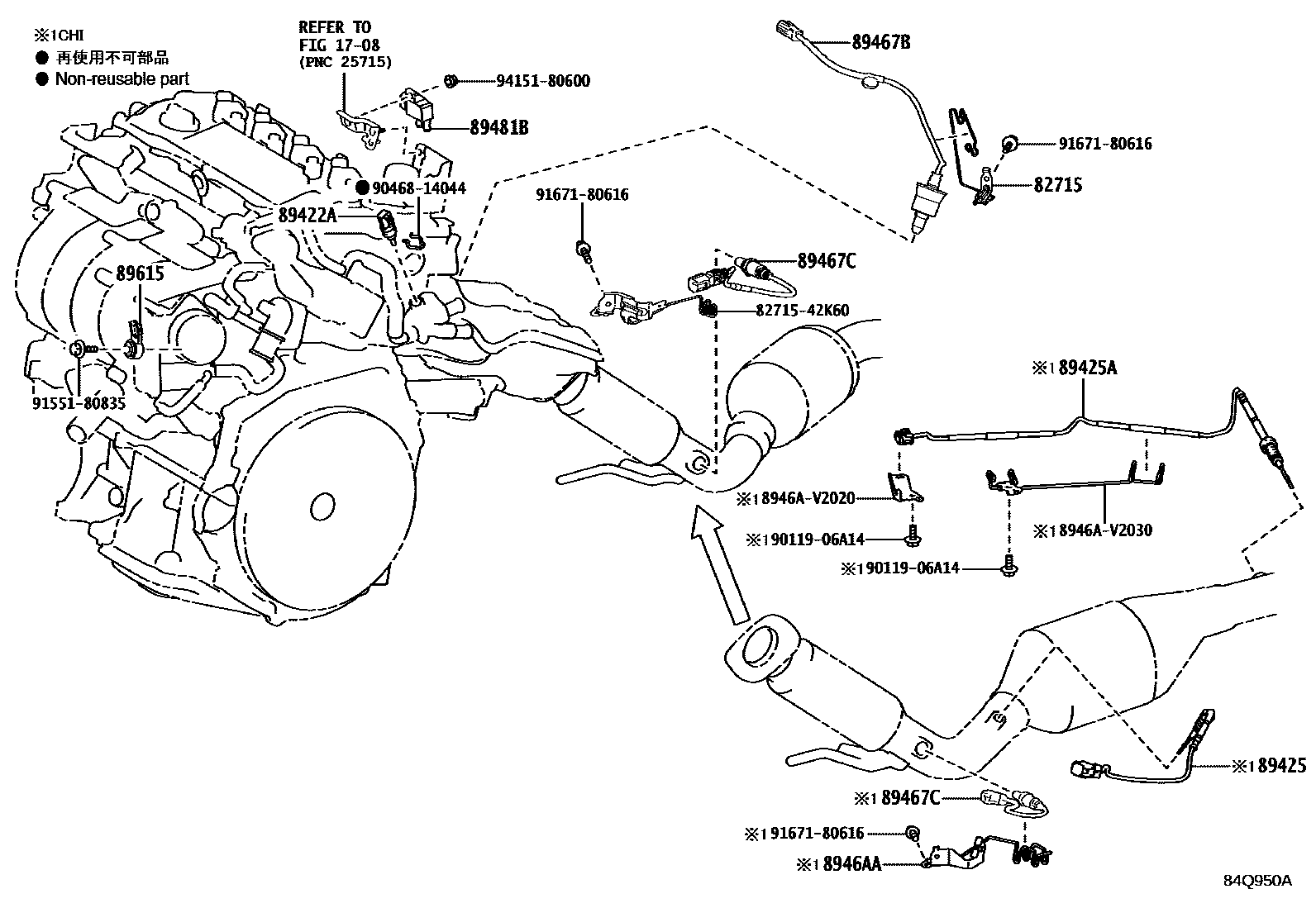

1708

82715BRACKET,WIRING HARNESS CLAMP

main82715-33V10iAAWH1#202306

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAAWH1#,TAWH15202306

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-48010iTAWH15..CHI202311

main89425-V2030iAAWH15..CHI202306

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-48050iTAWH15..CHI202311

main89425-V2040iAAWH15..CHI202306

89467BSENSOR, AIR FUEL RATIO

main89467-30130iAAWH1#202306

main89467-78040iTAWH15202311

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48360iAAWH15..CHI202306

main89467-58100iAAWH1#..ARL,EUR,GEN,PHL,RUS,TWN202306

main89467-78050iTAWH15202311

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-78030iTAWH15202311

main8946A-V2010iAAWH15..CHI202306

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-48010iTAWH15..CHI202311

main89481-K0010iAAWH1#..CHI,EUR202306

89615SENSOR, KNOCK CONTROL

main89615-20090iAAWH1#202306

main89615-78010iTAWH15202311

8271542K60BRACKET,WIRING HARNESS CLAMP

main82715-42K60

8946AV2020BRACKET, EXHAUST SENSOR CLAMP

main8946A-V2020

8946AV2030BRACKET, EXHAUST SENSOR CLAMP

main8946A-V2030

9011906A14

main90119-06A14

9046814044

main90468-14044

9155180835

main91551-80835

9167180616

main91671-80616

9415180600

main94151-80600

18 parts on this diagram · 19 diagrams in section
