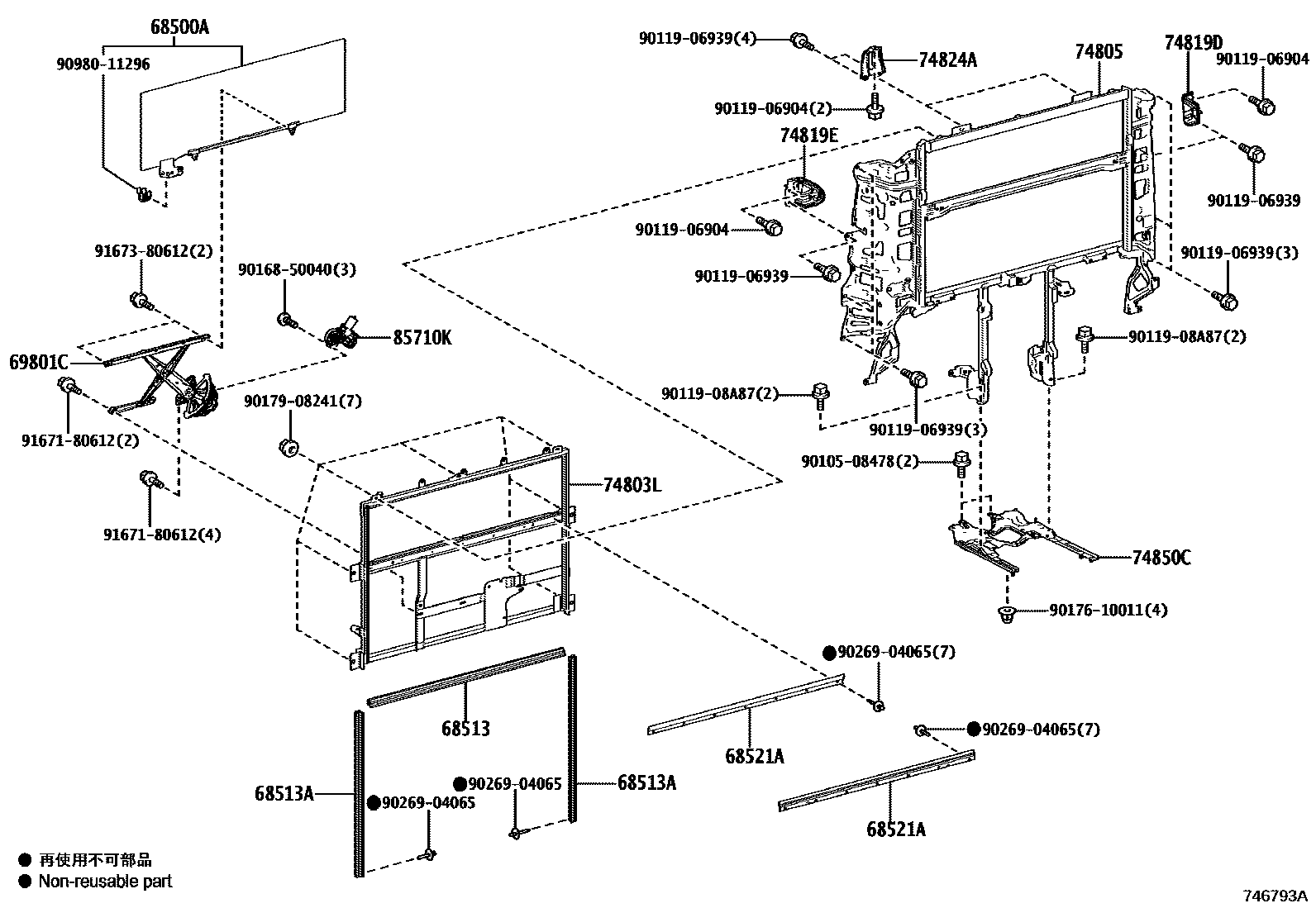

SEPARATOR & SEPARATOR CURTAIN

0001 1FRAME & GLASS 0002 1TRIM BOARD(FRONT) 0003 1TRIM BOARD(REAR)

68500AWINDOW ASSY, SEPARATION

main68500-V2010iAAWH1#,TAWH15..X202306

68513RUN, SEPARATION WINDOW

main68513-58010iAAWH1#,TAWH15..X202306

68513ARUN, SEPARATION WINDOW, NO.2

main68513-V2010iAAWH1#,TAWH15..X202306

68521AWEATHERSTRIP, SEPARATION DOOR WINDOW

main68521-V2010iAAWH1#,TAWH15..X202306

69801CREGULATOR SUB-ASSY, SEPARATOR WINDOW

main69801-52140iAAWH1#,TAWH15..X202306

74803LGUARD SUB-ASSY, SEPARATOR WINDOW

main74803-V2010iAAWH1#,TAWH15..X202306

74805SEPARATOR SUB-ASSY

main74805-V2010iAAWH1#,TAWH15..X202306

74819DBRACKET, SEPARATOR BOARD, RH

main74819-V2010iAAWH1#,TAWH15..X202306

74819EBRACKET, SEPARATOR BOARD, LH

main74819-V2020iAAWH1#,TAWH15..X202306

74824APLATE, SEPARATOR BOARD

main74824-V2020iAAWH1#,TAWH15..X202306

74850CBAR ASSY, SEPARATOR

main74850-V2010iAAWH1#,TAWH15..X202306

85710KMOTOR ASSY, POWER WINDOW REGULATOR

main85710-58070iAAWH1#,TAWH15..X202306

9010508478

main90105-08478

9011906904

main90119-06904

9011906939

main90119-06939

9011908A87

main90119-08A87

9016850040

main90168-50040

9017610011

main90176-10011

9017908241

main90179-08241

9026904065

main90269-04065

9098011296

main90980-11296

9167180612

main91671-80612

9167380612

main91673-80612

23 parts on this diagram · 3 diagrams in section
