REAR SEAT & SEAT TRACK

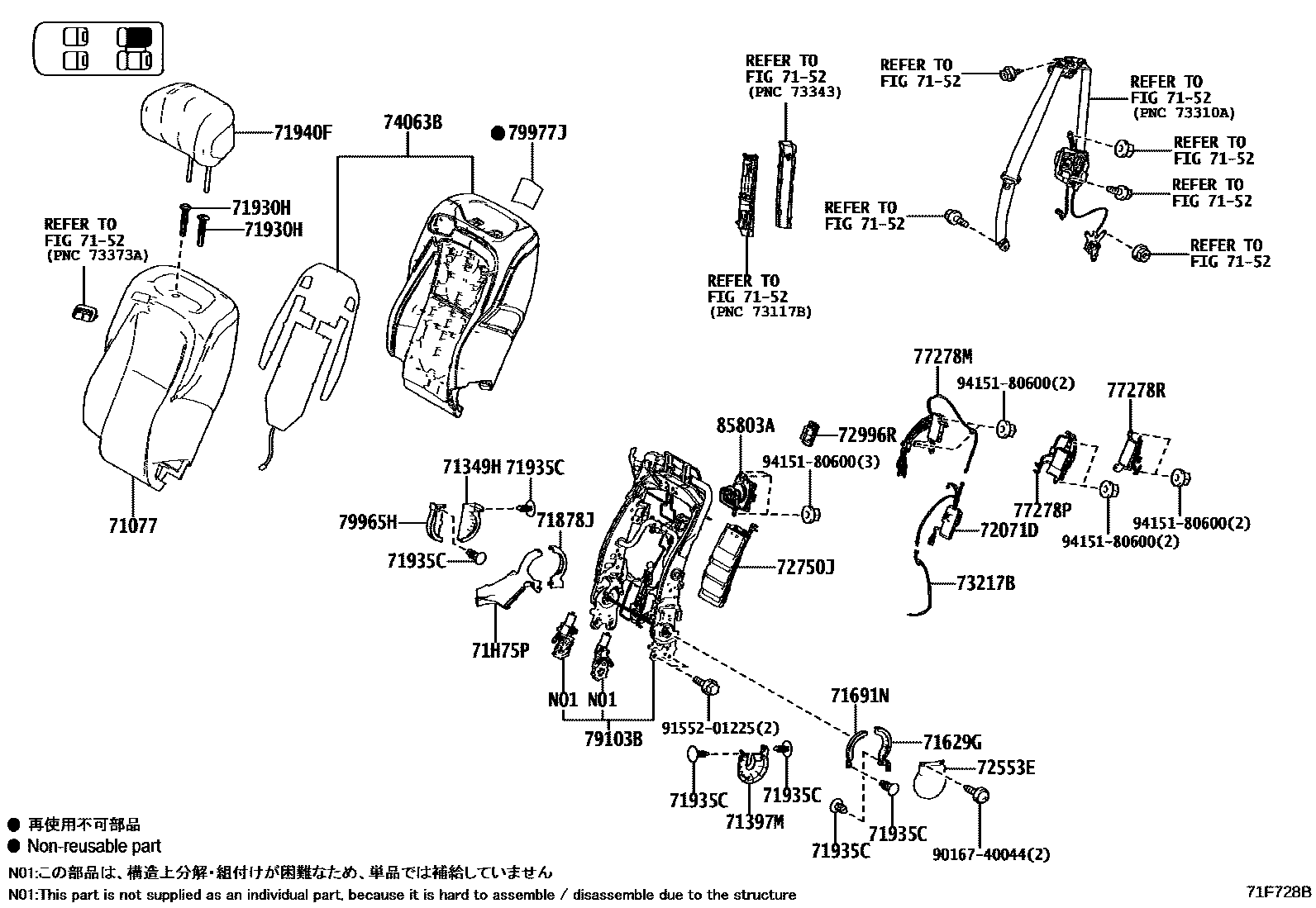

Parts diagram
71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH
main71077-V2100-C4i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71077-V2100-C4i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71077-V2100-C4i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71077-V2100-C4i202306
BLACK,TRIM2#
main71077-V2110-C4i202306
BLACK,TRIM2#
main71077-V2120-C4i202306
BLACK,TRIM2#
main71077-V2130-C3i202306
BLACK,TRIM2#
main71077-V2140-C2i202311
BLACK,TRIM2#
main71077-V2150-C2i202306
BLACK,TRIM2#
main71077-V2250-C2i202311
BLACK,TRIM2#
71349HCOVER, NO.1 SEATBACK STAY, RH
main71349-V2010-A0i202306
FROMAGE,TRIM0#
main71349-V2010-A0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71349-V2010-A0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71349-V2010-A0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71349-V2010-A0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71349-V2010-A0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71349-V2010-A0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71349-V2010-C0i202306
BLACK,TRIM2#
main71349-V2010-C0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71349-V2010-C0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71349-V2010-C0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71349-V2010-C0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71349-V2010-C0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71349-V2010-C0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71349-V2020-A0i202306
FROMAGE,TRIM0#
main71349-V2020-C0i202306
BLACK,TRIM2#
main71349-V2040-C0i202306
BLACK,TRIM0#,2#
main71349-V2050-A0i202306
FROMAGE,TRIM0#
main71349-V2050-C0i202306
BLACK,TRIM2#
71397MCOVER, CENTER SEAT HINGE, UPPER RH
main71397-V2010-A0i202306
FROMAGE,TRIM0#
main71397-V2010-C0i202306
BLACK,TRIM2#
main71397-V2020-A0i202306
FROMAGE,TRIM0#
main71397-V2020-A0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71397-V2020-A0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71397-V2020-A0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71397-V2020-A0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71397-V2020-A0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71397-V2020-A0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71397-V2020-C0i202306
BLACK,TRIM0#,2#
main71397-V2020-C0i202306
BLACK,TRIM2#
main71397-V2020-C0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71397-V2020-C0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71397-V2020-C0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71397-V2020-C0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71397-V2020-C0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71397-V2020-C0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
7152
71629GCOVER, REAR SEAT CUSHION HINGE
main71629-V2010-A0i202306
FROMAGE,TRIM0#
main71629-V2010-A0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71629-V2010-A0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71629-V2010-A0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71629-V2010-A0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71629-V2010-A0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71629-V2010-A0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71629-V2010-C0i202306
BLACK,TRIM0#,2#
main71629-V2010-C0i202306
BLACK,TRIM2#
main71629-V2010-C0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71629-V2010-C0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71629-V2010-C0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71629-V2010-C0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71629-V2010-C0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71629-V2010-C0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71629-V2020-A0i202306
FROMAGE,TRIM0#
main71629-V2020-C0i202306
BLACK,TRIM2#
71691NCOVER, REAR SEAT CUSHION HINGE, UPPER RH NO.1
main71691-V2050-A0i202306
FROMAGE,TRIM0#
main71691-V2050-A0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71691-V2050-A0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71691-V2050-A0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71691-V2050-A0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71691-V2050-A0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71691-V2050-A0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71691-V2050-C0i202306
BLACK,TRIM0#,2#
main71691-V2050-C0i202306
BLACK,TRIM2#
main71691-V2050-C0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71691-V2050-C0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71691-V2050-C0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71691-V2050-C0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71691-V2050-C0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71691-V2050-C0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71691-V2060-A0i202306
FROMAGE,TRIM0#
main71691-V2060-C0i202306
BLACK,TRIM2#
71878JCOVER, REAR NO.1 SEAT RECLINING, INNER RH
main71878-V2050-A0i202306
FROMAGE,TRIM0#
main71878-V2050-C0i202306
BLACK,TRIM2#
main71878-V2060-A0i202306
FROMAGE,TRIM0#
main71878-V2060-A0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71878-V2060-A0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71878-V2060-A0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71878-V2060-A0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71878-V2060-A0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71878-V2060-A0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71878-V2060-C0i202306
BLACK,TRIM0#,2#
main71878-V2060-C0i202306
BLACK,TRIM2#
main71878-V2060-C0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71878-V2060-C0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71878-V2060-C0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71878-V2060-C0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71878-V2060-C0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71878-V2060-C0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH
main71930-28050-A0i202306
W(LOCK),FROMAGE,TRIM01
main71930-28050-A0i202306
W(LOCK),FROMAGE,TRIM0#
main71930-28050-C0i202306
W(LOCK),BLACK,TRIM01,2#
main71930-28050-C0i202306
W(LOCK),BLACK,TRIM2#
main71931-28060-A0i202306
W/O(LOCK),FROMAGE,TRIM01
main71931-28060-A0i202306
W/O(LOCK),FROMAGE,TRIM0#
main71931-28060-C0i202306
W/O(LOCK),BLACK,TRIM01,2#
main71931-28060-C0i202306
W/O(LOCK),BLACK,TRIM2#
71935CCLIP
main90467-05161-C9i202306
BLACK,TRIM0#,2#
sub90467-05161¥90
main90467-05161-C9i202306
BLACK,TRIM2#
sub90467-05161¥90
main90467-05161-C9i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
sub90467-05161¥90
main90467-05161-C9i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
sub90467-05161¥90
main90467-05161-C9i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
sub90467-05161¥90
main90467-05161-C9i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
sub90467-05161¥90
main90467-05161-C9i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
sub90467-05161¥90
main90467-05161-C9i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
sub90467-05161¥90
71940FHEADREST ASSY, NO.1 SEAT, RH
main71940-V2120-A1i202306
FROMAGE,TRIM0#
main71940-V2120-C1i202306
BLACK,TRIM2#
main71940-V2130-A3i202306
FROMAGE,TRIM0#
main71940-V2130-C3i202306
BLACK,TRIM2#
main71940-V2180-A0i202306
FROMAGE,TRIM0#
main71940-V2180-C0i202306
BLACK,TRIM2#
71H75PCOVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEATBACK)
main71875-V2200-A0i202306
FROMAGE,TRIM0#
main71875-V2200-A0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71875-V2200-A0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71875-V2200-A0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71875-V2200-A0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71875-V2200-A0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71875-V2200-A0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main71875-V2200-C0i202306
BLACK,TRIM2#
main71875-V2200-C0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71875-V2200-C0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71875-V2200-C0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71875-V2200-C0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71875-V2200-C0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71875-V2200-C0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main71875-V2210-A0i202306
FROMAGE,TRIM0#
main71875-V2210-C0i202306
BLACK,TRIM2#
main71875-V2220-A0i202306
FROMAGE,TRIM0#
main71875-V2220-C0i202306
BLACK,TRIM2#
main71875-V2280-C0i202306
BLACK,TRIM0#,2#
72071DPUMP SUB-ASSY, LUMBER SUPPORT, RH
main72071-V2010i¥30,700202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main72071-V2010i¥30,700202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main72071-V2010i¥30,700202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main72071-V2010i¥30,700202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main72071-V2010i¥30,700202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main72071-V2010i¥30,700202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main72071-V2020i¥30,700202306
main72071-V2030i¥30,700202306
72553EPROTECTOR, RECLINING COVER, RH NO.1
main72553-V2030-A0i202306
FROMAGE,TRIM0#
main72553-V2030-C0i202306
BLACK,TRIM2#
main72553-V2040-C0i202306
BLACK,TRIM0#,2#
72750JADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-V2010i¥35,600202306
72996RCOVER, REAR NO.1 SEATBACK, RH
main72996-V2010-A0i202306
FROMAGE,TRIM0#
main72996-V2010-A0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main72996-V2010-A0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main72996-V2010-A0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main72996-V2010-A0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main72996-V2010-A0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main72996-V2010-A0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),FROMAGE,TRIM0#
main72996-V2010-C0i202306
BLACK,TRIM2#
main72996-V2010-C0i202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main72996-V2010-C0i202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main72996-V2010-C0i202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main72996-V2010-C0i202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main72996-V2010-C0i202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
main72996-V2010-C0i202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT),BLACK,TRIM2#
73217BTUBE, REAR SEAT ADJUSTER
main73217-V2010i¥5,200202306
main73217-V2030i¥430202306
74063BBAG SUB-ASSY, SEATBACK PAD, RH
main74063-V2230i¥20,100202306
REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main74063-V2240i¥20,100202306
main74063-V2250i202306
main74063-V2260i¥22,800202306
77278MVALVE, CHECK W/HOSE, RH NO.1(FOR SEATBACK)
main77278-V2010i¥11,400202306
main77278-V2060i¥32,300202306
77278PVALVE, CHECK W/HOSE, RH NO.2(FOR SEATBACK)
main77278-V2020i¥40,400202306
main77278-V2100i¥32,300202306
77278RVALVE, CHECK W/HOSE, RH NO.3(FOR SEATBACK)
main77278-V2080i¥32,300202306
79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH
main79103-V2090i¥64,800202306
main79103-V2100i¥57,900202306
CAMBODIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main79103-V2100i¥57,900202306
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main79103-V2100i¥57,900202306
HONG KONG SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main79103-V2100i¥57,900202306
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main79103-V2100i¥57,900202306
INDIA SPEC&BLIGHT INTERIOR PACKAGE&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main79103-V2100i¥57,900202306
INDIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
main79103-V2110i¥59,200202306
79965HCOVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)
main79965-V2020-C0i202306
BLACK,TRIM0#,2#
79977JFELT, SEATBACK
main79977-V2050i¥160202306
85803ABLOWER SUB-ASSY, SEATBACK CLIMATE, RH
main85803-V2010i¥15,700202306
9016740044
main90167-40044¥70
9155201225
main91552-01225¥160
9415180600
main94151-80600¥60

27 parts on this diagram · 24 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
