E
EPC Data

SEAT BELT

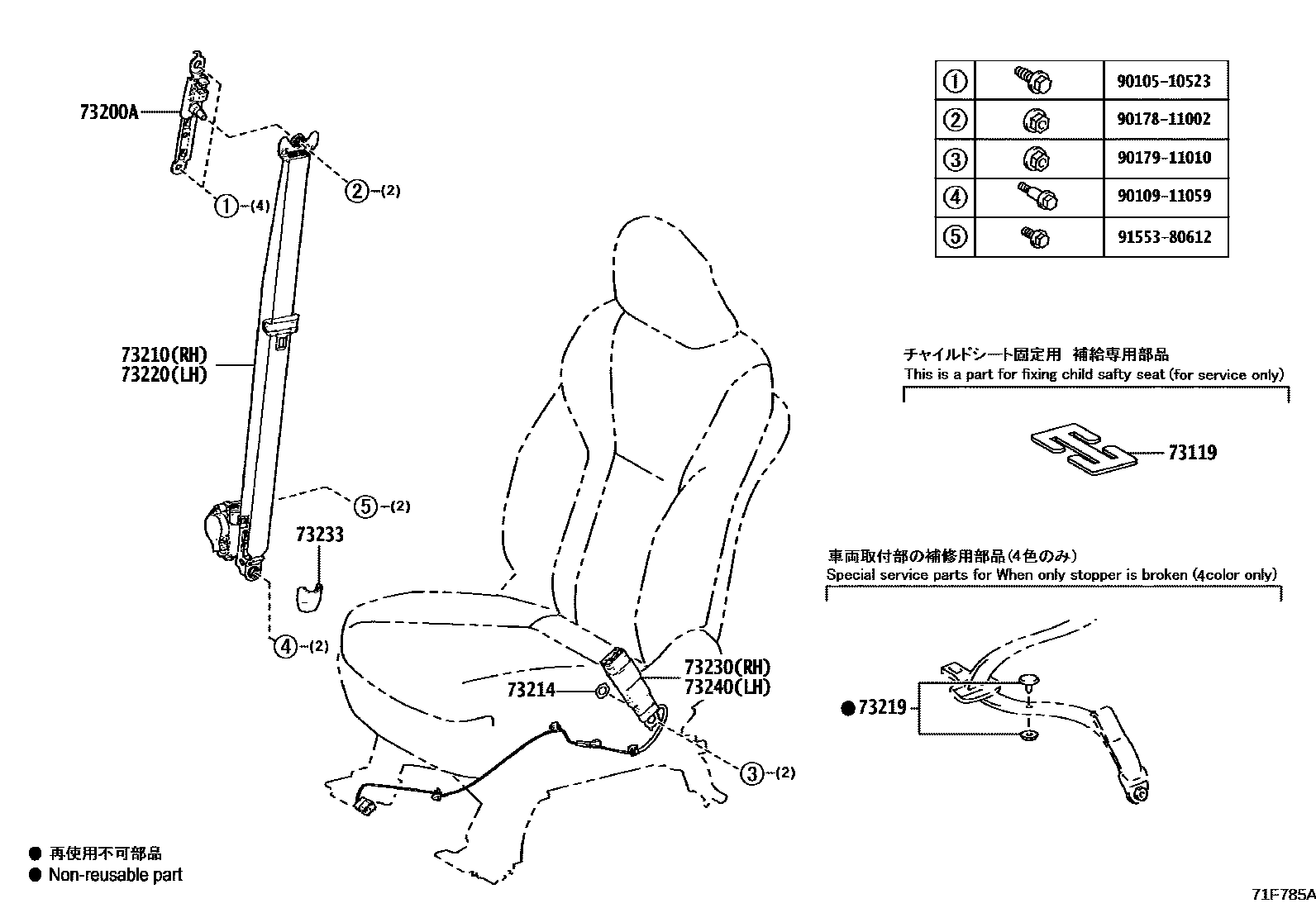

Parts diagram
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i202306
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i202306
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-V2040-C0i202306
BLACK,TRIM2#
main73210-V2040-E0i202306
GREGE,TRIM0#
main73210-V2050-C0i202306
BLACK,TRIM2#
main73210-V2050-E0i202306
GREGE,TRIM0#
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010i202306
73219STOPPER, TONGUE PLATE
main73219-33010i202306
BLACK
main73219-33020i202306
GRAY
main73219-33030i202306
BEIGE
main73219-50010i202306
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-V2040-C0i202306
BLACK,TRIM2#
main73220-V2040-E0i202306
GREGE,TRIM0#
main73220-V2050-C0i202306
BLACK,TRIM2#
main73220-V2050-E0i202306
GREGE,TRIM0#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-V2030-A0i202306
FROMAGE,TRIM0#
main73230-V2030-C0i202306
BLACK,TRIM2#
main73230-V2040-A0i202306
FROMAGE,TRIM0#
main73230-V2040-C0i202306
BLACK,TRIM2#
main73230-V2050-A0i202306
FROMAGE,TRIM0#
main73230-V2050-C0i202306
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-A8i202306
FROMAGE,TRIM0#
sub73233-60020
sub73233-35010
main73233-60020-C1i202306
BLACK,TRIM2#
sub73233-60020
sub73233-35010
main73233-60020-C1i202306
BLACK,TRIM0#,2#
sub73233-60020
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-V2020-A0i202306
FROMAGE,TRIM0#
main73240-V2020-C0i202306
BLACK,TRIM2#
main73240-V2030-A0i202306
FROMAGE,TRIM0#
main73240-V2030-C0i202306
BLACK,TRIM2#
main73240-V2050-A0i202306
FROMAGE,TRIM0#
main73240-V2050-C0i202306
BLACK,TRIM2#
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

14 parts on this diagram · 4 diagrams in section
