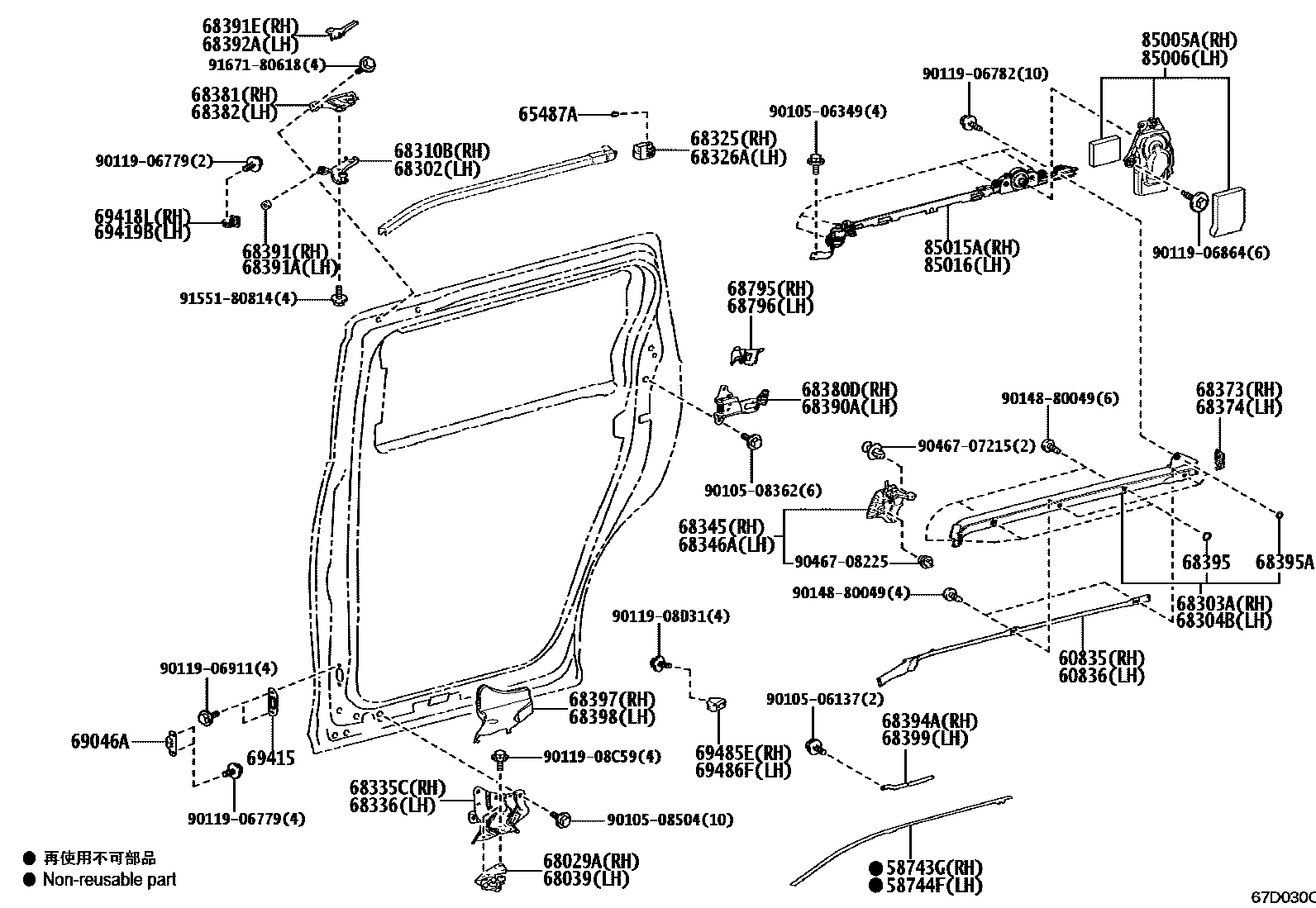

SLIDE ROLLER & RAIL

58743GPROTECTOR, SLIDE DOOR PANEL, RH

main58743-V2010iAAWH1#,TAWH15202306

58744FPROTECTOR, SLIDE DOOR PANEL, LH

main58744-V2010iAAWH1#,TAWH15202306

60835COVER SUB-ASSY, SLIDE DOOR CTR RAIL, RH

main60835-V2020iAAWH1#,TAWH15202306

60836COVER SUB-ASSY, SLIDE DOOR CTR RAIL, LH

main60836-V2020iAAWH1#,TAWH15202306

65487ACLIP, CORNER PROTECTOR

main65487-28010iAAWH1#,TAWH15202306

68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main68029-V2010iAAWH1#,TAWH15202306

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-V2010iAAWH1#,TAWH15202306

68302ROLLER SUB-ASSY, SLIDE DOOR, UPPER LH

main68302-V2010iAAWH1#,TAWH15202306

68303ARAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-V2010iAAWH1#,TAWH15202306

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-V2010iAAWH1#,TAWH15202306

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68301-V2010iAAWH1#,TAWH15202306

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-V2010iAAWH1#,TAWH15202306

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-V2010iAAWH1#,TAWH15202306

68335CARM, SLIDE DOOR LOWER ROLLER, RH

main68335-V2020iAAWH1#,TAWH15202306

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-V2020iAAWH1#,TAWH15202306

68345COVER, SLIDE DOOR CENTER RAIL

main68345-V2010iAAWH1#,TAWH15202306

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main68346-V2010iAAWH1#,TAWH15202306

68373MOULDING, SLIDE RAIL END, RH

main68373-V2020iAAWH1#,TAWH15202306

68374MOULDING, SLIDE RAIL END, LH

main68374-V2020iAAWH1#,TAWH15202306

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-V2020iAAWH1#,TAWH15202306

68381ARM, SLIDE DOOR UPPER ROLLER, RH

main68381-V2020iAAWH1#,TAWH15202306

68382ARM, SLIDE DOOR UPPER ROLLER, LH

main68382-V2020iAAWH1#,TAWH15202306

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-V2020iAAWH1#,TAWH15202306

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iAAWH1#,TAWH15202306

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iAAWH1#,TAWH15202306

68391EPROTECTOR, SLIDE DOOR UPR RAIL, RH

main68391-V2010iAAWH1#,TAWH15202306

68392APROTECTOR, SLIDE DOOR UPR RAIL, LH

main68392-V2010iAAWH1#,TAWH15202306

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-V2010iAAWH1#,TAWH15202306

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-52020iAAWH1#,TAWH15202306

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-52050iAAWH1#,TAWH15202306

68397COVER, SLIDE DOOR LOWER ROLLER, RH

main68397-V2060iAAWH1#,TAWH15202306

68398COVER, SLIDE DOOR LOWER ROLLER, LH

main68398-V2060iAAWH1#,TAWH15202306

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-V2010iAAWH1#,TAWH15202306

68795COVER, DOOR HINGE, NO.1 RH

main68795-V2020iAAWH1#,TAWH15202306

68796COVER, DOOR HINGE, NO.1 LH

main68796-V2020iAAWH1#,TAWH15202306

69046ASTOPPER SUB-ASSY, SLIDE DOOR DOWN MALE

main69046-V2010iAAWH1#,TAWH15202306

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-V2010iAAWH1#,TAWH15202306

69418LSTOP, SLIDE DOOR OPEN, RH

main69418-V2010iAAWH1#,TAWH15202306-202401

sub69418-V2011

main69418-V2011iAAWH1#,TAWH15202402

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-V2010iAAWH1#,TAWH15202306-202401

sub69419-V2011

main69419-V2011iAAWH1#,TAWH15202402

69485ESTRIKER, SLIDE DOOR OPEN, RH

main69485-V2010iAAWH1#,TAWH15202306

69486FSTRIKER, SLIDE DOOR OPEN, LH

main69486-V2010iAAWH1#,TAWH15202306

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-V2020iAAWH1#,TAWH15202306

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-V2020iAAWH1#,TAWH15202306

85015ACABLE SUB-ASSY, POWER SLIDE DOOR, RH

main85015-V2010iAAWH1#,TAWH15202306

85016CABLE SUB-ASSY, POWER SLIDE DOOR, LH

main85016-V2010iAAWH1#,TAWH15202306

9010506137

main90105-06137

9010506349

main90105-06349

9010508362

main90105-08362

9010508504

main90105-08504

9011906779

main90119-06779

9011906782

main90119-06782

9011906864

main90119-06864

9011906911

main90119-06911

9011908C59

main90119-08C59

9011908D31

main90119-08D31

9014880049

main90148-80049

9046707215

main90467-07215

9046708225

main90467-08225

9155180814

main91551-80814

9167180618

main91671-80618

60 parts on this diagram · 1 diagram in section
