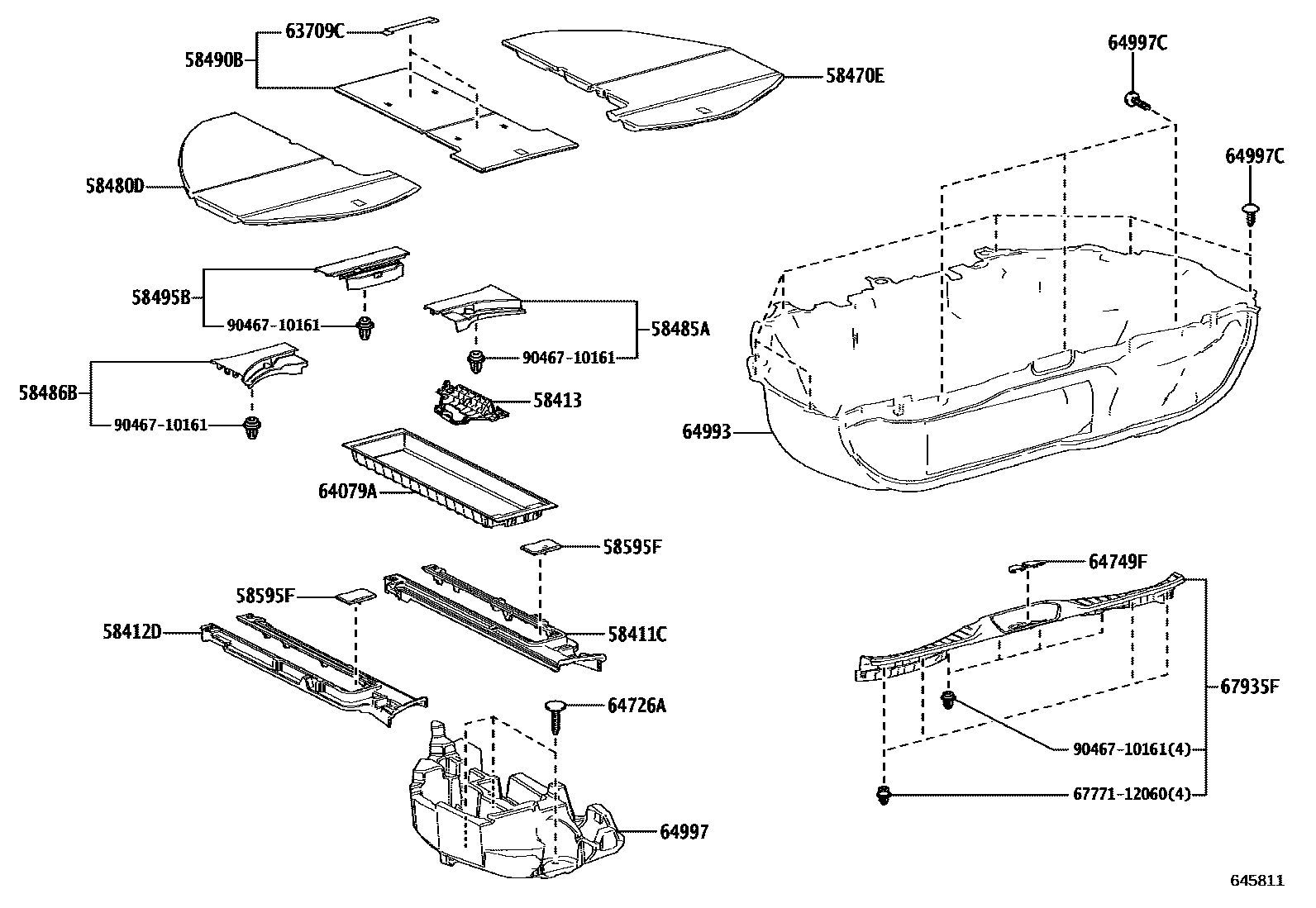

DECK BOARD & DECK TRIM COVER
58411CCOVER, DECK RAIL, NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58412DCOVER, DECK RAIL, NO.2
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58413COVER, DECK RAIL
BLACK,TRIM0#,2#
58470EBOARD ASSY, REAR FLOOR, NO.1
BLACK,TRIM0#,2#
58480DBOARD ASSY, REAR FLOOR, NO.2
BLACK,TRIM0#,2#
58485APLATE, REAR FLOOR BOARD, UPPER NO.1
BLACK,TRIM0#,2#
58486BPLATE, REAR FLOOR BOARD, UPPER NO.2
BLACK,TRIM0#,2#
58490BBOARD ASSY, REAR FLOOR, NO.3
BLACK,TRIM0#,2#
58495BPLATE, REAR FLOOR BOARD, UPPER NO.3
BLACK,TRIM0#,2#
58595FMOULDING, FLOOR CARPET, NO.3
BLACK,TRIM0#,2#
63709CBAND SUB-ASSY, ROOM RACK
64079ABOX SUB-ASSY, UTILITY
BLACK,TRIM0#,2#
64726ACLIP, LUGGAGE TRIM, REAR
BLACK
64749FCOVER, BACK DOOR STRIKER
BLACK,TRIM0#,2#
64993BOX, DECK FLOOR, REAR
64997BOX, DECK FLOOR, LH
64997CCLIP(FOR DECK FLOOR BOX)
67935FPLATE, BACK DOOR SCUFF
BLACK,TRIM0#,2#
6777112060WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12060
9046710161
main90467-10161
20 parts on this diagram · 2 diagrams in section
