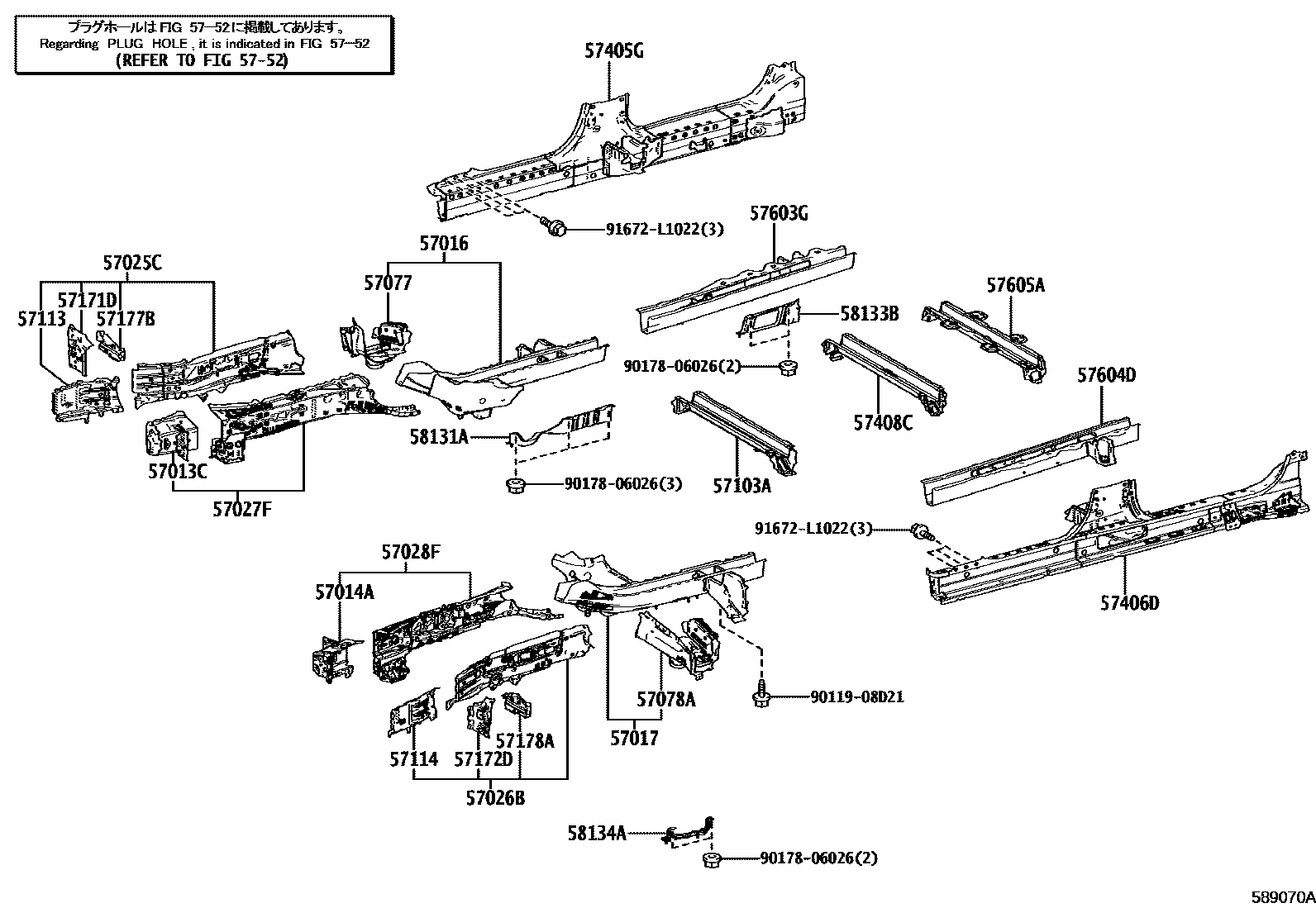

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR MEMBER 0004 1FLOOR MEMBER 0005 1FLOOR PANEL 0006 1FLOOR PANEL 0007 1FLOOR PANEL 0008 1FLOOR PANEL 0009 1FLOOR PANEL 0010 1FLOOR PANEL 0011 1FLOOR PANEL 0012 1FLOOR PANEL

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-V2010iAAWH1#,TAWH15¥4,290202306

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-V2010iAAWH1#,TAWH15¥4,290202306

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-V2010iAAWH1#,TAWH15¥22,400202306

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-V2010iAAWH1#,TAWH15¥22,600202306

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-V2010iAAWH1#,TAWH15¥13,000202306-202408

main57025-V2011iAAWH1#,TAWH15¥11,800202409

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-V2010iAAWH1#,TAWH15¥11,800202306

57027FBRACKET SUB-ASSY, CONVERTER SUPPORT, RH

main57027-V2010iAAWH1#,TAWH15¥27,900202306

57028FBRACKET SUB-ASSY, CONVERTER SUPPORT, LH

main57028-V2011iAAWH1#,TAWH15¥29,500202306

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-V2020iAAWH1#,TAWH15¥12,100202306

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-V2020iAAWH1#,TAWH15¥7,000202306

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-V2010iAAWH1#¥8,100202306

main57103-V2060iTAWH15¥10,100202311

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-V2010iAAWH1#,TAWH15¥3,170202306

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-V2010iAAWH1#,TAWH15¥3,170202306

57171DPLATE, FRONT SIDE MEMBER TO FLOOR, RH

main57171-V2010iAAWH1#,TAWH15¥1,580202306-202408

main57171-V2011iAAWH1#,TAWH15¥1,430202409

57172DPLATE, FRONT SIDE MEMBER TO FLOOR, LH

main57172-V2010iAAWH1#,TAWH15¥1,490202306

57177BSEAL, FRONT SIDE MEMBER, RH

main57177-V2010iAAWH1#,TAWH15¥1,320202306

57178ASEAL, FRONT SIDE MEMBER, LH

main57178-V2010iAAWH1#,TAWH15¥1,320202306

57405GRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-V2030iAAWH1#,TAWH15¥21,000202306

57406DRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-V2030iAAWH1#,TAWH15¥21,400202306

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-V2010iAAWH1#,TAWH15..V¥8,100202306

main57408-V2070iAAWH1#,TAWH15..X¥12,100202306

5752

57603GEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH

main57603-V2010iAAWH1#,TAWH15¥17,800202306

57604DEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH

main57604-V2010iAAWH1#,TAWH15¥19,200202306

57605AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-V2010iAAWH1#,TAWH15..V¥9,800202306

main57605-V2070iAAWH1#,TAWH15..X¥12,100202306

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-V2010iAAWH1#,TAWH15¥2,600202306

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-V2020iAAWH1#,TAWH15¥1,320202306

58134ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.4

main58134-V2010iAAWH1#,TAWH15¥1,080202306

9011908D21

main90119-08D21¥80

9017806026

main90178-06026¥80

91672L1022

main91672-L1022¥100

30 parts on this diagram · 12 diagrams in section
