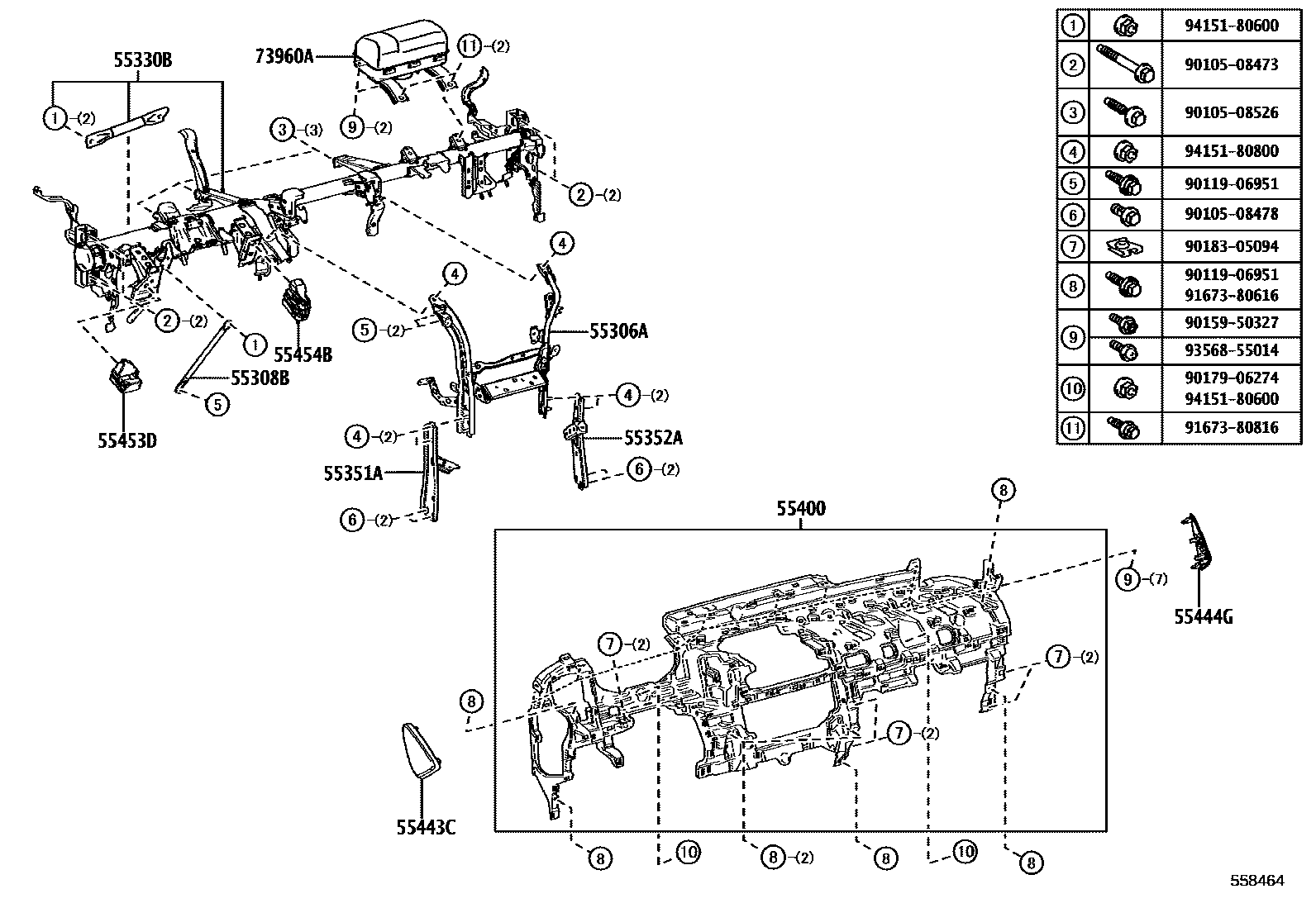

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-V2030iAAWH1#,TAWH15..RHD202306

main55306-V2040iAAWH15,TAWH15..LHD202306

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-V2030iAAWH1#,TAWH15..RHD202306

main55308-V2040iAAWH15,TAWH15..LHD202306

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-V2010iAAWH1#,TAWH15..RHD202306

main55330-V2020iAAWH15,TAWH15..LHD202306

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-V2010iAAWH1#,TAWH15..RHD202306

main55351-V2020iAAWH15,TAWH15..LHD202306

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-V2010iAAWH1#,TAWH15..RHD202306

main55352-V2020iAAWH15,TAWH15..LHD202306

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-V2030iAAWH1#,TAWH15..RHD202306

main55400-V2040iAAWH15,TAWH15..LHD202306

55443CPLATE, INSTRUMENT PANEL SAFETY PAD

main55443-V2010-A0iAAWH15..LHD..EUR;AAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,RUS,TWN202306

FROMAGE,TRIM0#

main55443-V2010-C0iAAWH15..LHD..EUR;AAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,RUS,TWN202306

BLACK,TRIM2#

main55443-V2030-A0iAAWH1#..RHD..EUR202306

FROMAGE,TRIM0#

main55443-V2030-C0iAAWH1#..RHD..EUR202306

BLACK,TRIM2#

55444GPLATE, INSTRUMENT PANEL SAFETY PAD, NO.2

main55444-V2010-A0iAAWH10,TAWH15;AAWH15..RHD..EUR;AAWH15..ARL,CHI,GEN,PHL,RUS,TWN202306

FROMAGE,TRIM0#

main55444-V2010-C0iAAWH10,TAWH15;AAWH15..RHD..EUR;AAWH15..ARL,CHI,GEN,PHL,RUS,TWN202306

BLACK,TRIM2#

main55444-V2060-A0iAAWH15..LHD..EUR202306

FROMAGE,TRIM0#

main55444-V2060-C0iAAWH15..LHD..EUR202306

BLACK,TRIM2#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-V2030iAAWH1#,TAWH15..RHD202306

main55453-V2040iAAWH15,TAWH15..LHD202306

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-V2030iAAWH1#,TAWH15..RHD202306

main55454-V2040iAAWH15,TAWH15..LHD202306

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-V2010iAAWH1#,TAWH15..RHD202306

main73960-V2030iAAWH15,TAWH15..LHD202306

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9015950327

main90159-50327

9017906274

main90179-06274

9018305094

main90183-05094

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

23 parts on this diagram · 10 diagrams in section
