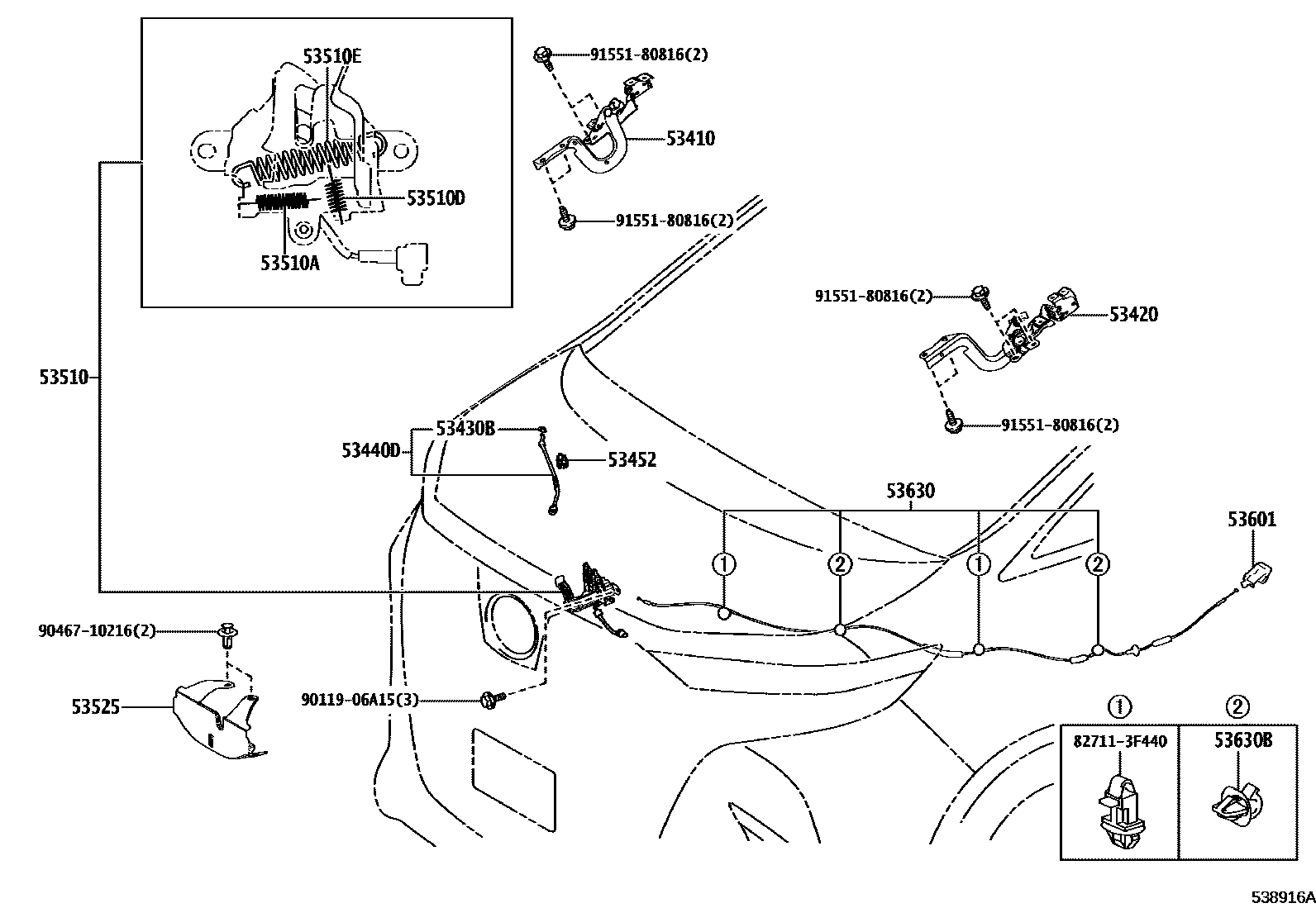

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-V2050iAAWH1#,TAWH15202306

53420HINGE ASSY, HOOD, LH

main53420-V2050iAAWH1#,TAWH15202306

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15025iAAWH1#,TAWH15202306

53440DSUPPORT ASSY, HOOD

main53440-V2030iAAWH1#,TAWH15202306

53452HOLDER, HOOD STAY

main53452-V2010iAAWH1#,TAWH15202306

53510LOCK ASSY, HOOD

main53510-V2030iAAWH1#,TAWH15..RHD202306

main53510-V2040iAAWH15,TAWH15..LHD202306

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAAWH1#,TAWH15202306

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAAWH1#,TAWH15202306

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAAWH1#,TAWH15202306

WD=1.8,CW=13

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-V2030iAAWH1#,TAWH15202306

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iAAWH1#,TAWH15202306

BLACK,TRIM0#,2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-V2030iAAWH1#,TAWH15..RHD202306

main53630-V2040iAAWH15,TAWH15..LHD202306

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iAAWH1#,TAWH15..RHD202306

827113F440WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F440

9011906A15

main90119-06A15

9046710216

main90467-10216

9155180816

main91551-80816

17 parts on this diagram · 2 diagrams in section
