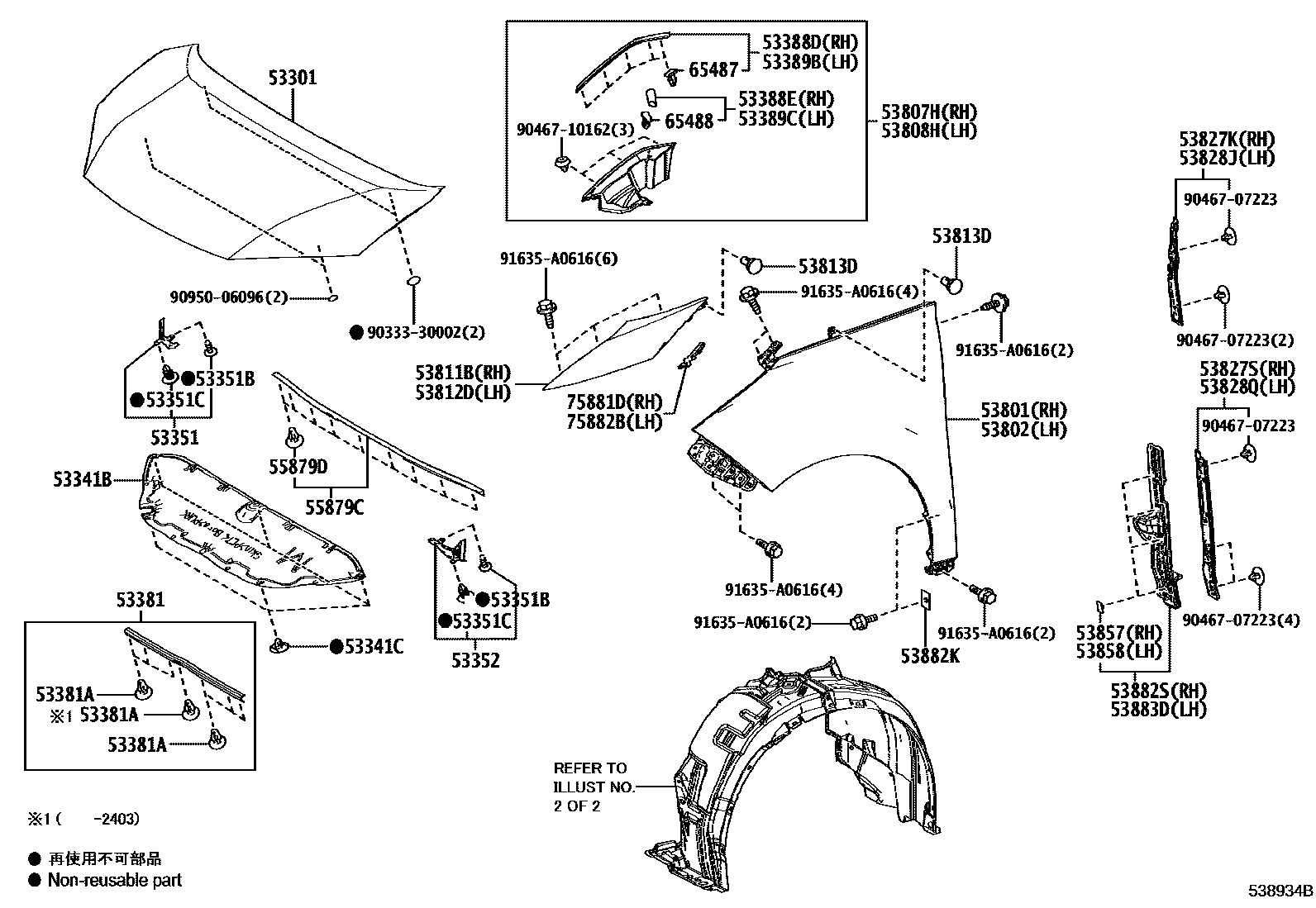

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53351PANEL, HOOD SIDE, RH
53351BCLIP, HOOD SIDE PANEL, NO.1
53351CCLIP, HOOD SIDE PANEL, NO.2
53352PANEL, HOOD SIDE, LH
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53388ESEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53389CSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807HPROTECTOR SUB-ASSY, FRONT FENDER, UPPER RH
53808HPROTECTOR SUB-ASSY, FRONT FENDER, UPPER LH
53811BPANEL, FRONT FENDER, RH
53812DPANEL, FRONT FENDER, LH
53813DEXTENSION, FRONT FENDER
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53827SPROTECTOR, FRONT FENDER SIDE PANEL, RH NO.2
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53828QPROTECTOR, FRONT FENDER SIDE PANEL, LH NO.2
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882KSEAL, FRONT FENDER
53882SSEAL, FRONT FENDER, RH
53883DSEAL, FRONT FENDER, LH
55879CSEAL, COWL VENT
55879DCLIP(FOR COWL VENT SEAL)
65487CLIP, CORNER PROTECTOR
65488CLIP, CORNER PROTECTOR
75881DRETAINER, FRONT FENDER MOULDING, NO.1
75882BRETAINER, FRONT FENDER MOULDING, NO.2
9033330002
9046707223
9046710162
9095006096
91635A0616
40 parts on this diagram · 2 diagrams in section
