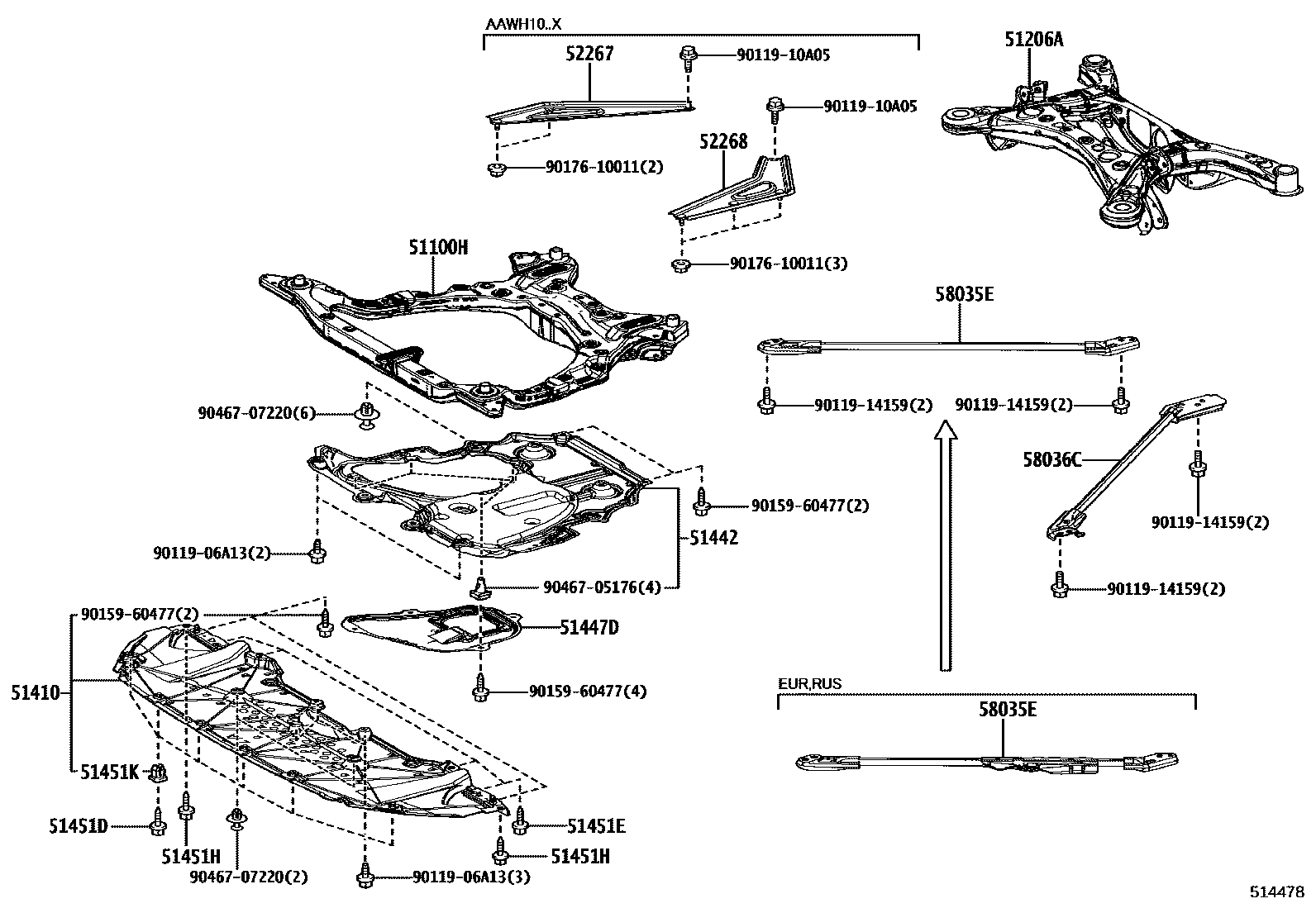

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51100HFRAME ASSY, FRONT

main51100-V2020iAAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,TWN202306

ISRAEL SPEC

main51100-V2030iAAWH1#..EUR,RUS202306

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-V2010iAAWH10202306

main51206-V2030iAAWH15202306

main51206-V2040iTAWH15202311

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-V2010iAAWH1#,TAWH15202306

51442COVER, ENGINE UNDER, NO.2

main51442-V2020iAAWH1#,TAWH15202306-202508

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-V2020iAAWH1#202306

51451DSCREW, NO.1

main90159-60477iAAWH1#,TAWH15202306

51451ESCREW, NO.2

main90159-60477iAAWH1#,TAWH15202306

51451HSCREW, NO.3

main90159-60477iAAWH1#,TAWH15202306

51451KGROMMET, SCREW, NO.1

main90189-06237iAAWH1#,TAWH15202306

52267REINFORCE, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52267-V2010iAAWH1#,TAWH15..X202306

52268REINFORCE, REAR SUSPENSION MEMBER LOWER STOPPER, LH

main52268-V2010iAAWH1#,TAWH15..X202306

58035EBRACE SUB-ASSY, REAR FLOOR PANEL, RH

main58035-V2010iAAWH1#..ARL,CHI,GEN,PHL,TWN202306

main58035-V2020iTAWH15202311

main58035-V2030iAAWH1#..EUR,RUS202306

58036CBRACE SUB-ASSY, REAR FLOOR PANEL, LH

main58036-V2010iAAWH1#202306

main58036-V2020iTAWH15202311

9011906A13

main90119-06A13

9011910A05

main90119-10A05

9011914159

main90119-14159

9015960477

main90159-60477

9017610011

main90176-10011

9046705176

main90467-05176

9046707220

main90467-07220

20 parts on this diagram · 4 diagrams in section
