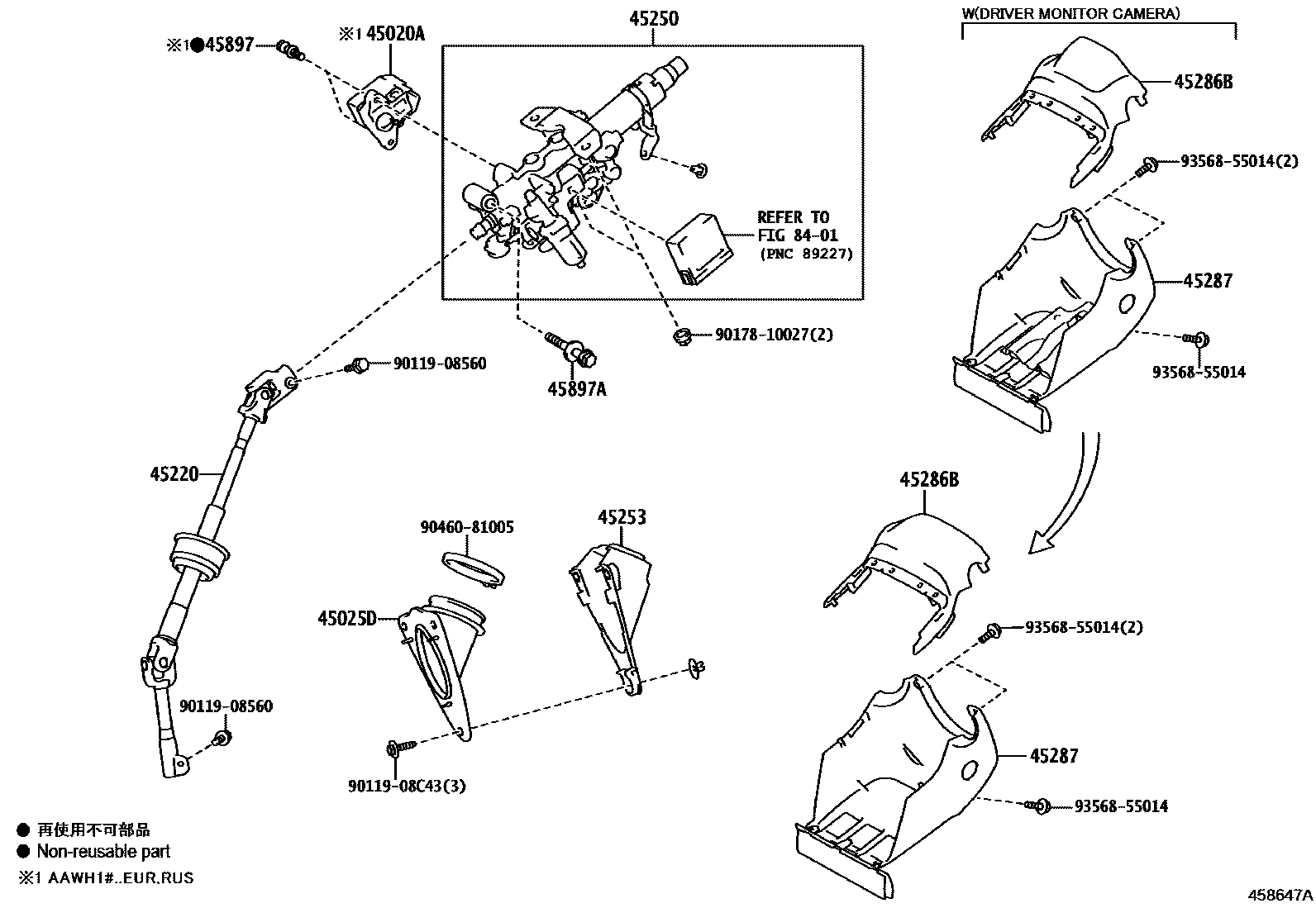

STEERING COLUMN & SHAFT

0001 1 0002 1

45020AACTUATOR ASSY, STEERING LOCK

main45020-60880iAAWH1#..EUR,RUS202306

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-V2020iAAWH1#,TAWH15202306

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-V2010iAAWH1#,TAWH15..RHD202306

main45220-V2020iAAWH15,TAWH15..LHD202306

45250COLUMN ASSY, STEERING

main45250-V2010iAAWH1#,TAWH15202306

45253COVER, STEERING COLUMN HOLE

main45253-V2010iAAWH1#,TAWH15202306

45286BCOVER, STEERING COLUMN, UPR

main45286-78030-C0iAAWH1#,TAWH15..CHI,GEN,KRE,PHL,RUS,TWN202306

BLACK,TRIM0#,2#

main45286-V2020-C0iAAWH1#,TAWH15..ARL,EUR202306

BLACK,TRIM0#,2#

main45286-V2020-C0iAAWH1#,TAWH15..ARL,EUR202306

UKRAINE SPEC,BLACK,TRIM0#,2#

main45286-V2020-C0iAAWH1#,TAWH15..ARL,EUR202306

ACTIVE SAFETY PACKAGE-AD,BLACK,TRIM0#,2#

45287COVER, STEERING COLUMN, LWR

main45024-60060-C0iAAWH1#,TAWH15..EUR,GEN,KRE,PHL,RUS,TWN202306

BLACK,TRIM0#,2#

main45024-V2020-C0iAAWH1#,TAWH15..ARL,CHI202306

BLACK,TRIM0#,2#

45897BOLT, STEERING LOCK SET

main45897-12020iAAWH1#..EUR,RUS202306

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iAAWH1#,TAWH15202306

8401

9011908560

main90119-08560

9011908C43

main90119-08C43

9017810027

main90178-10027

9046081005

main90460-81005

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
