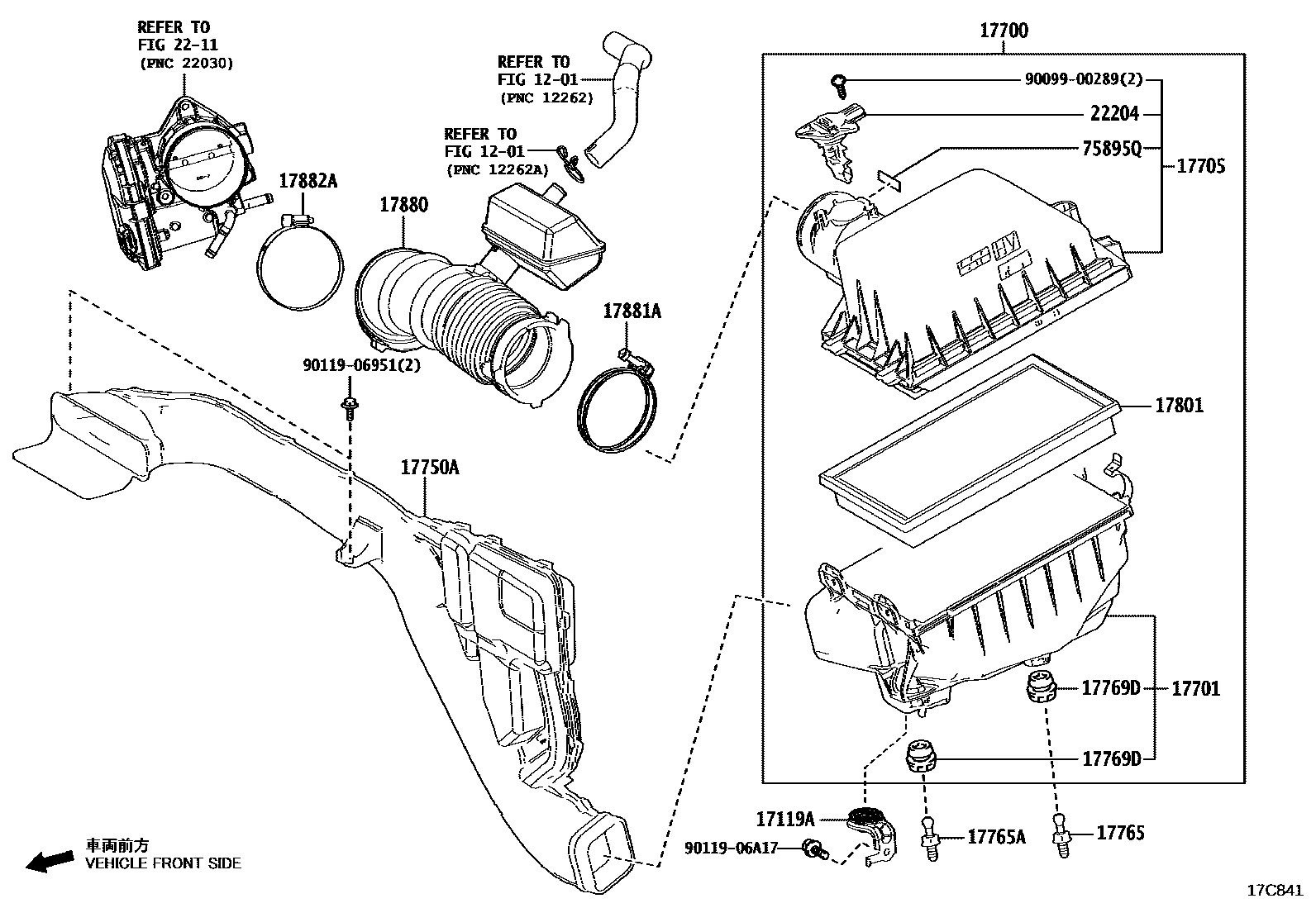

AIR CLEANER

0001 1 0002 1 0003 1

1201

17119ABRACKET, AIR CLEANER

main17119-25010iA25..AAWH1#202306

main17119-25050iT24..TAWH15202311

17700CLEANER ASSY, AIR

main17700-25171iA25..AAWH1#202306

main17700-25210iT24..TAWH15202311

17701CASE SUB-ASSY, AIR CLEANER

main17701-25111iA25..AAWH1#202306

main17701-25120iT24..TAWH15202311

17705CAP SUB-ASSY, AIR CLEANER

main17705-25070iA25..AAWH1#202306

main17705-25180iT24..TAWH15202311

17750AINLET ASSY, AIR CLEANER

main17750-V2030iA25..AAWH1#202306

main17750-V2040iT24..TAWH15202311

17765STAY, AIR CLEANER, NO.1

main17765-25010iT24..TAWH15202306

17765ASTAY, AIR CLEANER, NO.1

main17765-25010iA25..AAWH1#202306

17769SUPPORT, AIR CLEANER

main17769-25020iT24..TAWH15202311

17769DSUPPORT, AIR CLEANER, NO.2

main17769-25030iA25..AAWH1#202306

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15090iT24..TAWH15202311

main17801-77050iA25..AAWH1#202306

17880HOSE ASSY, AIR CLEANER

main17880-25040iA25..AAWH1#202306

main17880-25070iT24..TAWH15202311

17881HOSE, AIR CLEANER, NO.1

main17881-25080iT24..TAWH15202311-202403

sub17881-25081

main17881-25081iT24..TAWH15202404

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25..AAWH1#202306

main96111-10900iT24..TAWH15202311

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25..AAWH1#202306

main96111-10670iT24..TAWH15202311

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25..AAWH1#202306

75895QTAPE, MOULDING, NO.1

main75895-52050iAAWH1#202306

9009900289

main90099-00289

9011906951

main90119-06951

9011906A17

main90119-06A17

21 parts on this diagram · 3 diagrams in section
