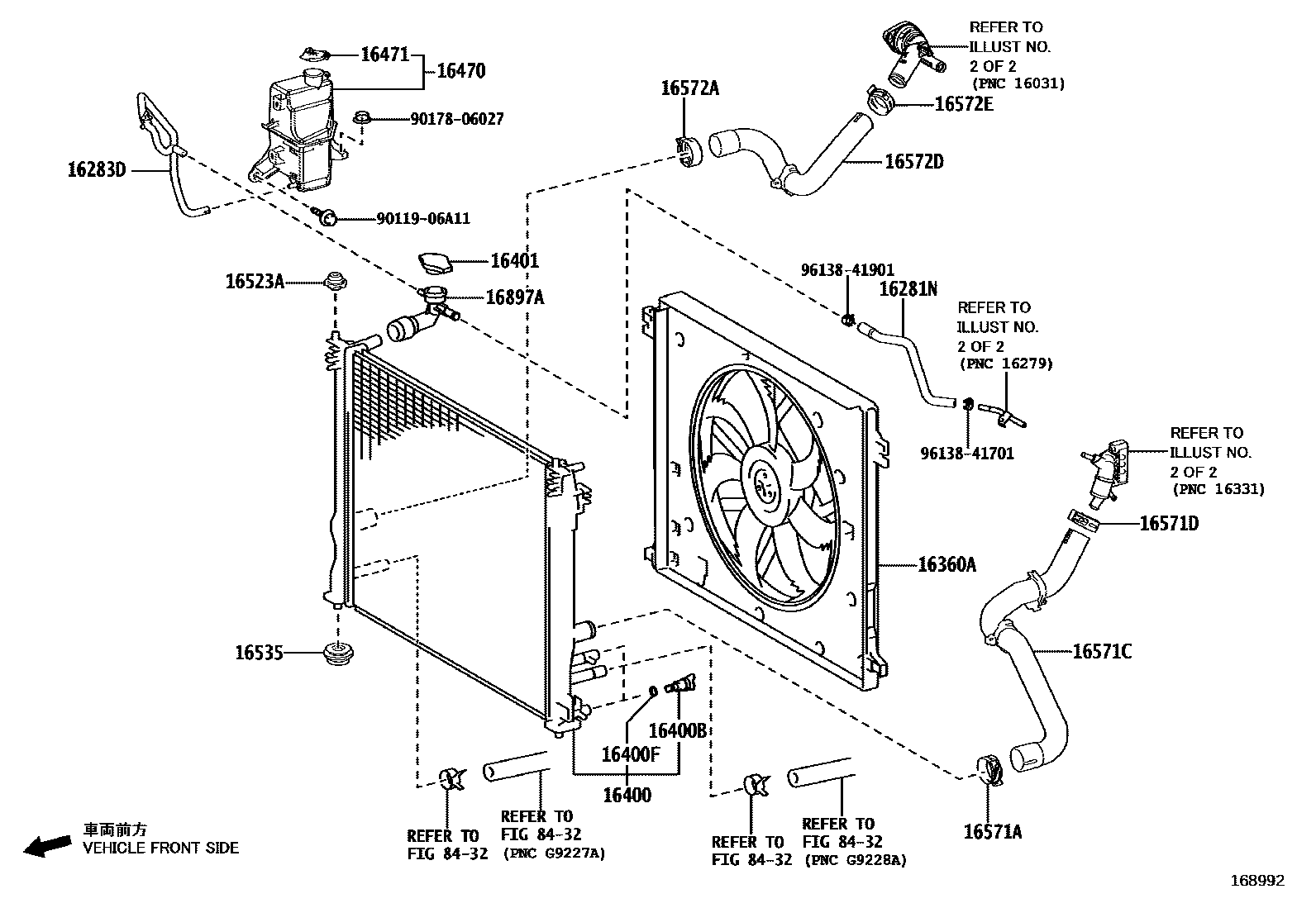

RADIATOR & WATER OUTLET
16283HOSE, WATER BY-PASS, NO.6
16283DHOSE, WATER BY-PASS, NO.6
16400RADIATOR ASSY
DESTINATION PACKAGE(ERP)-MOLDOVA SPEC
KAZAKHSTAN SPEC
UKRAINE SPEC
DESTINATION PACKAGE(ERP)-GEORGIA SPEC
DESTINATION PACKAGE(ERP)-ARMENIA SPEC
DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC
DESTINATION PACKAGE(ERP)-BELARUS SPEC
DESTINATION PACKAGE(ERP)-KYRGYZSTAN SPEC
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16897ANECK, FILLER
8432
9011906A11
main90119-06A11
9017806027
main90178-06027
9613841701
main96138-41701
9613841901
main96138-41901
25 parts on this diagram · 6 diagrams in section
