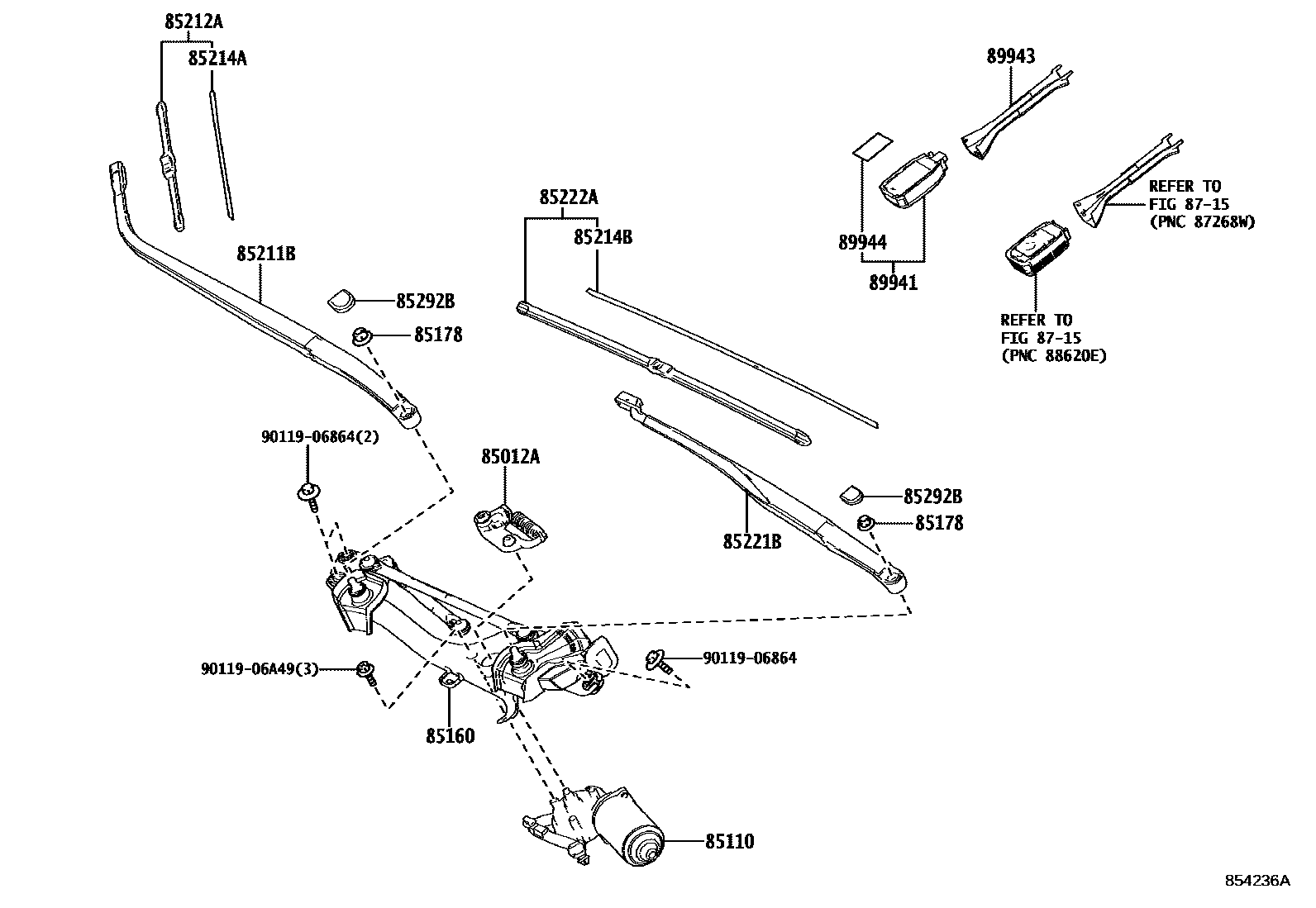

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58050iAYH36,GGH31..RHD202001

main85012-58070iAYH36,GGH31..LHD202001

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-58030iAYH36,GGH31..RHD202001

main85110-58050iAYH36,GGH31..LHD202001

85160LINK ASSY, WINDSHIELD WIPER

main85150-58040iAYH36,GGH31..LHD202001

main85150-58090iAYH36,GGH31..RHD202001

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAYH36,GGH31202001

85211BARM, FRONT WIPER, RH

main85211-58050iAYH36,GGH31..LHD202001

main85211-58070iAYH36,GGH31..RHD202001

85212ABLADE, FR WIPER, RH

main85212-58040iAYH36,GGH31..RHD202304

main85212-58052iAYH36,GGH31..LHD202001

main85212-58060iAYH36,GGH31..RHD202001-202303

sub85212-58040

85214ARUBBER, WIPER, RH

main85214-58030iAYH36,GGH31..RHD202304

main85214-58070iAYH36,GGH31..LHD202001

main85214-58080iAYH36,GGH31..RHD202001-202303

sub85214-58030

85214BRUBBER, WIPER, LH

main85214-28110iAYH36,GGH31..RHD202001-202303

sub85214-68030

main85214-58060iAYH36,GGH31..LHD202001

main85214-68030iAYH36,GGH31..RHD202304

85221BARM, FRONT WIPER, LH

main85221-58071iAYH36,GGH31..LHD202001

main85221-58090iAYH36,GGH31..RHD202001

85222ABLADE, FR WIPER, LH

main85222-28190iAYH36,GGH31..RHD202304

main85222-58054iAYH36,GGH31..LHD202001

main85222-58060iAYH36,GGH31..RHD202001-202303

sub85222-28190

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAYH36,GGH31202001

8715

89941SENSOR, RAIN

main89941-48080iAYH36,GGH31202001

89943COVER, RAIN SENSOR

main89943-58010iAYH36,GGH31202001

89944TAPE, RAIN SENSOR

main89944-42020iAYH36,GGH31202001

9011906864

main90119-06864

9011906A49

main90119-06A49

17 parts on this diagram · 2 diagrams in section
