BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY(1/2) 0004 1HV BATTERY(2/2)

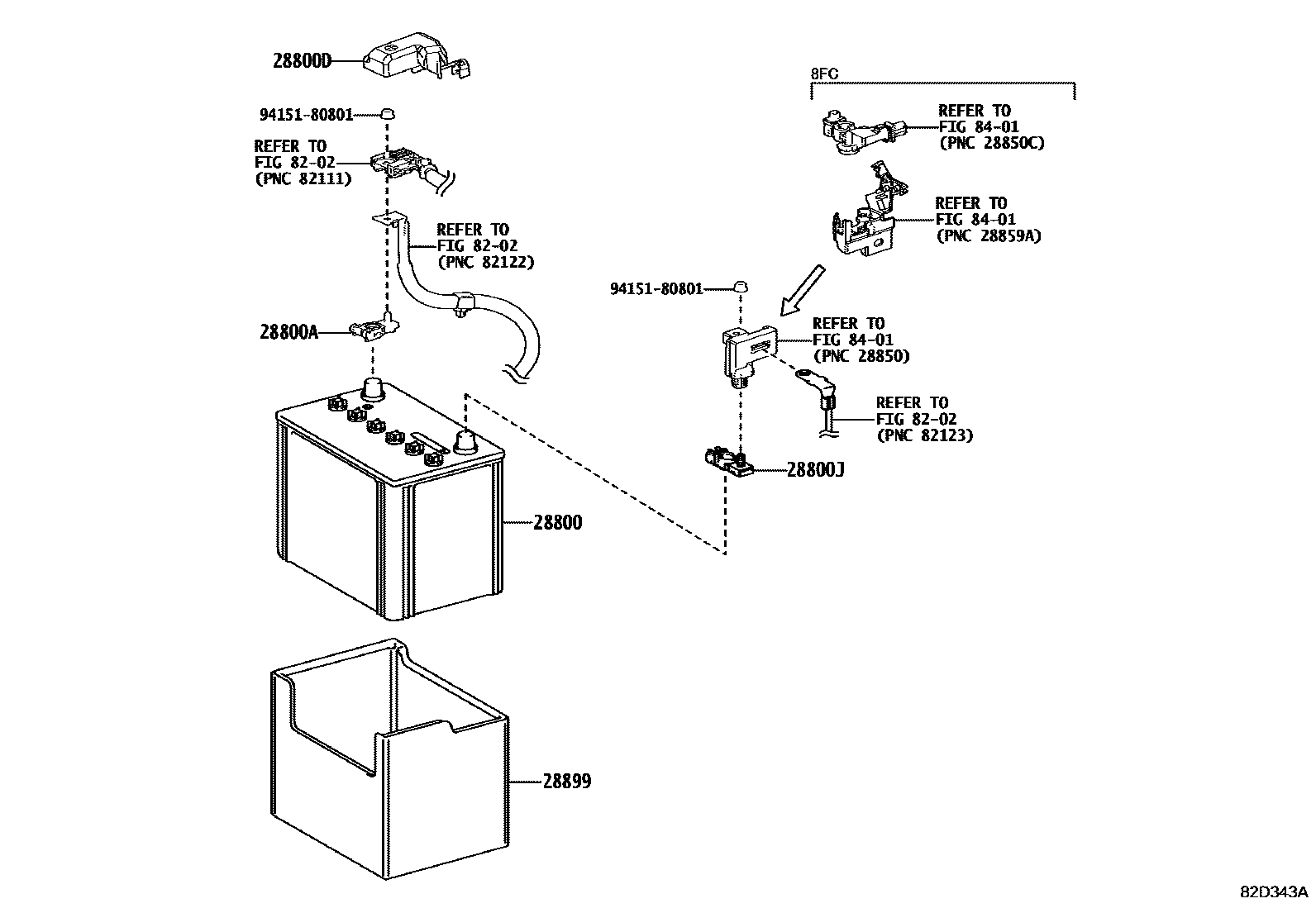

28800BATTERY

main28800-31490i2GR#..GGH31202103-202303

S-95

sub28800-31491

main28800-31491i2GR#..GGH31202304

S-95

main28800-36141i2GR#..GGH31202001-202102

S-95

sub28800-36142

main28800-37110i2ARFXE..AYH36202001-202303

LN2,PANASONIC

sub28800-37111

main28800-37111i2ARFXE..AYH36202304

LN2,PANASONIC

main28800-37120i2ARFXE..AYH36202001-202303

LN2,GS YUASA

sub28800-37121

main28800-37121i2ARFXE..AYH36202304

LN2,GS YUASA

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GR#..GGH31202001

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-58120i2GR#..GGH31202001

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2ARFXE,2GRFE..AYH36,GGH31202001

28899INSULATOR, BATTERY

main28877-36010i2ARFXE..AYH36202001

main28899-36080i2GR#..GGH31202001-202104

sub28899-V2030

main28899-V2030i2GR#..GGH31202105

8202

8401

9415180801

main94151-80801

8 parts on this diagram · 4 diagrams in section
