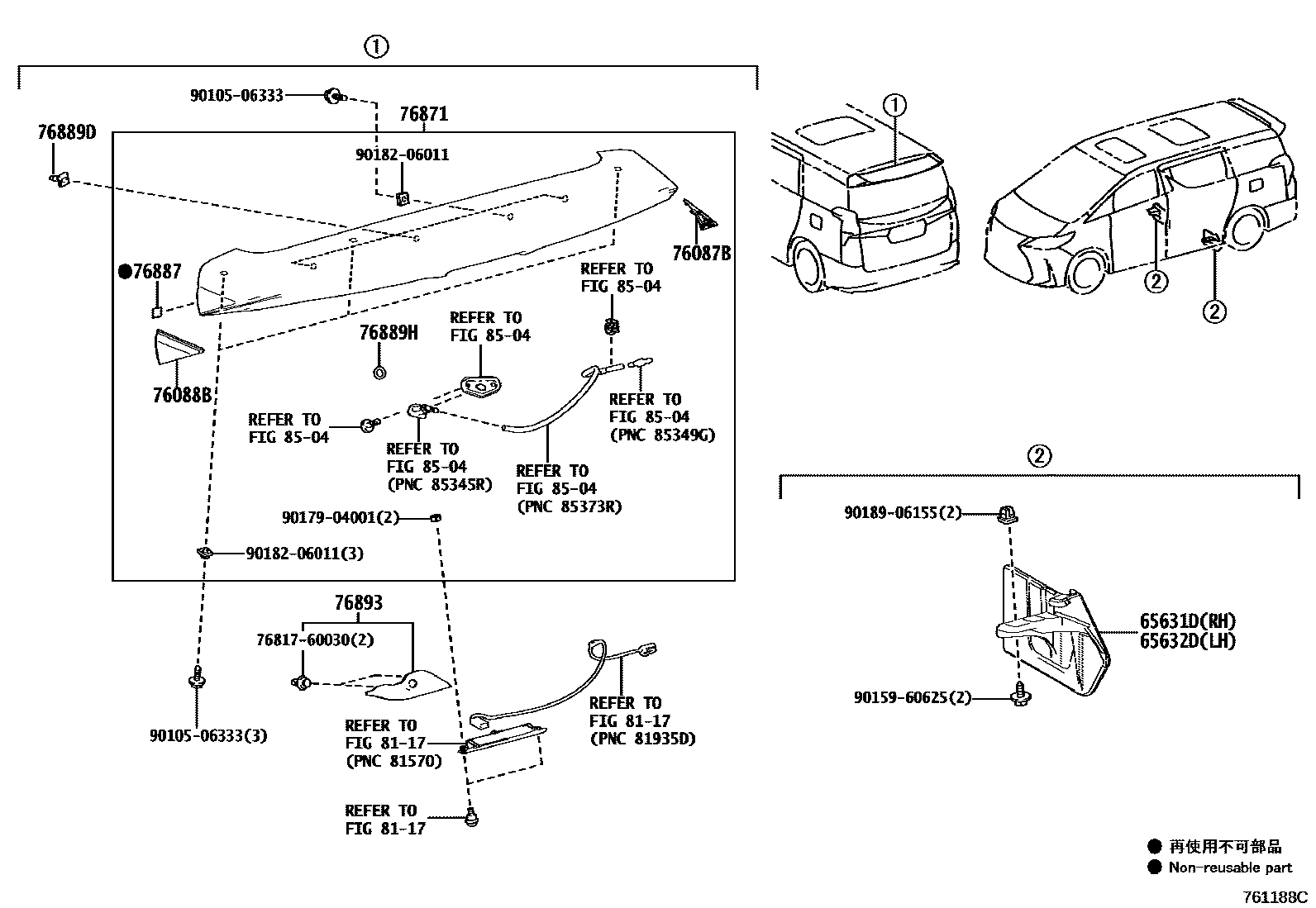

SPOILER & SIDE MUDGUARD

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-58020iAYH36,GGH31202001

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-58020iAYH36,GGH31202001

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-58010iAYH36,GGH31202001

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-58010iAYH36,GGH31202001

76871SPOILER, REAR

main76085-58900-A0iAYH36,GGH31202001

WHITE PEARL CS.,070

main76085-58900-C0iAYH36,GGH31202001

BLACK,202

76887SEAL, REAR SPOILER

main76887-58050iAYH36,GGH31202001

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iAYH36,GGH31202001

76889HSEAL, REAR SPOILER, NO.1

main76889-28020iAYH36,GGH31202001

76893COVER, REAR SPOILER, NO.1

main76893-58030iAYH36,GGH31202001

8117

8504

7681760030CLIP, BACK DOOR OUTSIDE GARNISH

main76817-60030

9010506333

main90105-06333

9015960625

main90159-60625

9017904001

main90179-04001

9018206011

main90182-06011

9018906155

main90189-06155

17 parts on this diagram · 2 diagrams in section
