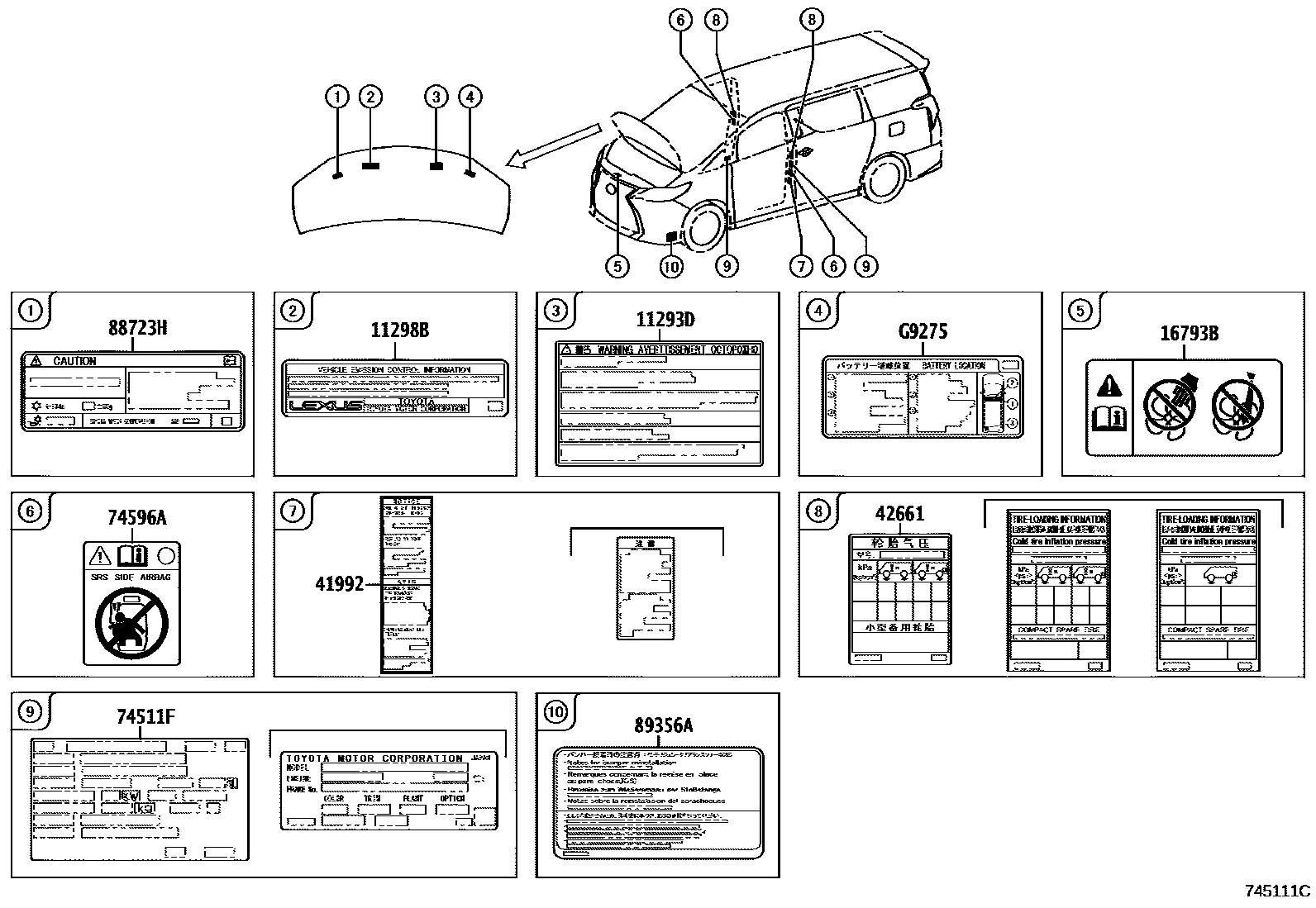

CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR 0002 1ENGINE ROOM & EXTERIOR 0003 1EXTERIOR 0004 1INTERIOR

11293DLABEL, ENGINE CAUTION

main11293-36070i2ARFXE..AYH36202001

11298BLABEL, EMISSION CONTROL INFORMATION

16793BLABEL, COOLING FAN INFORMATION

main16793-36050i2ARFXE,2GR#..AYH36,GGH31202001

41992LABEL, DIFFERENTIAL NOTICE

main41992-58010supersedes 41992-58030iAYH36..LHD202001

TAIWAN SPEC

42661LABEL, TIRE PRESSURE INFORMATION

main42661-58350iGGH31..RHD202001

TIRE & DISC WHEEL-225/60R17 ALUMINUM(SPUTTERING)

main42661-58410iGGH31202001

main42661-58490supersedes 42661-58440iAYH36..LHD202001

TAIWAN SPEC

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300supersedes 74511-50023iGGH31;AYH36..RHD202001

*111,TAIWAN SPEC

74596ALABEL, SIDE AIRBAG CAUTION

main74596-53012×2iAYH36,GGH31..V202001-202003

88723HLABEL, COOLER SERVICE CAUTION

main88723-58060supersedes 88723-58220iAYH36..LHD202001

TAIWAN SPEC

main88723-58200iGGH31202001

89356ALABEL, CLEARANCE WARNING INFORMATION

main89356-47020×2iAYH36..LHD202001-202111

TAIWAN SPEC

G9275LABEL, BATTERY CAUTION, NO.1

mainG927558010supersedes G927558020iAYH36..LHD202001

TAIWAN SPEC

10 parts on this diagram · 4 diagrams in section
