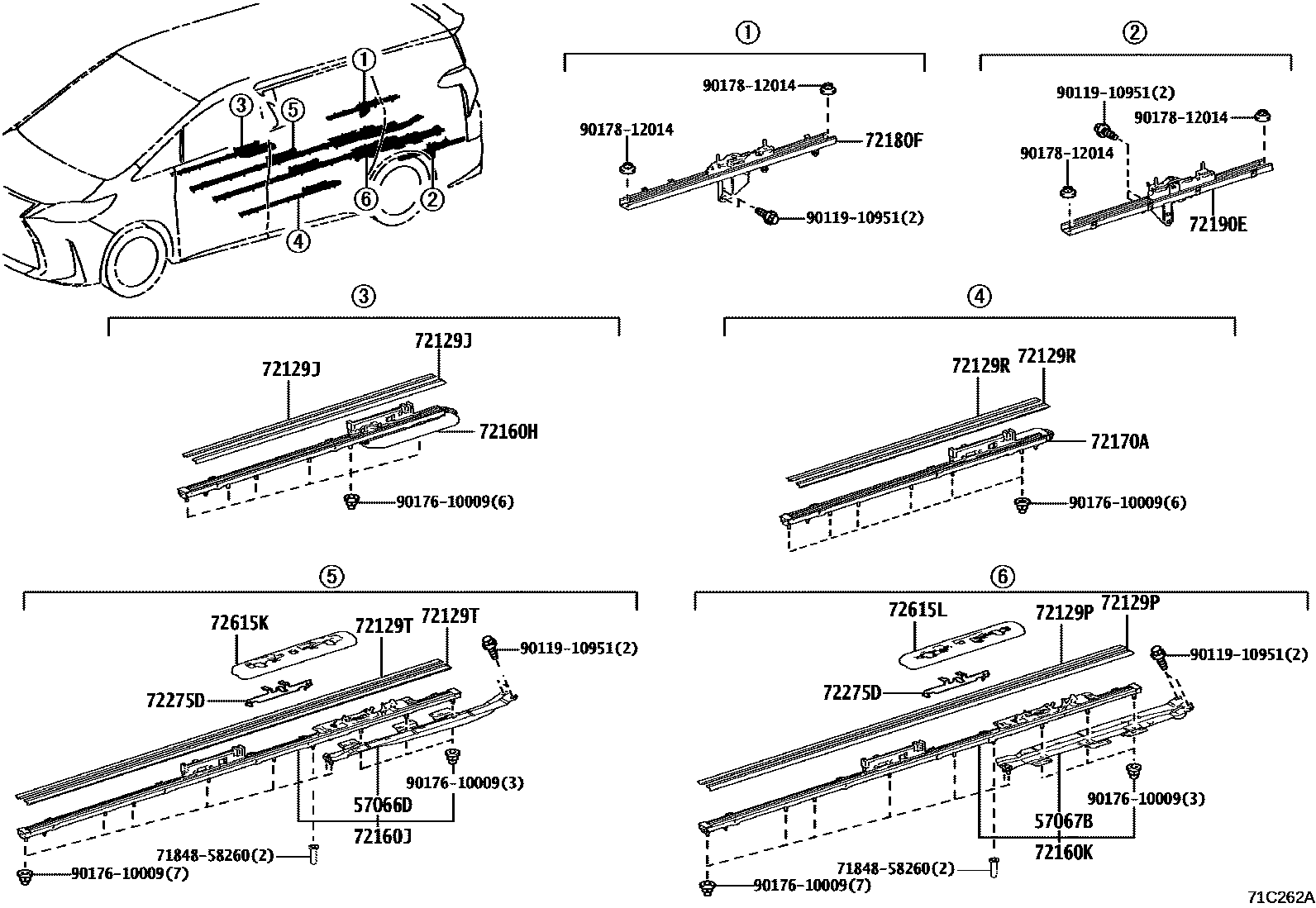

SEAT RAIL
57066DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57067BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
72129JPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
72129PPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
72129RPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
72129TPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
72160HTRACK ASSY, REAR SEAT, OUTER RH
72160JTRACK ASSY, REAR RH SEAT, INNER NO.1
72160KTRACK ASSY, REAR LH SEAT, INNER NO.1
72170ATRACK ASSY, REAR SEAT, OUTER LH
72180FTRACK ASSY, REAR SEAT, INNER RH
72190ETRACK ASSY, REAR SEAT, INNER LH
72275DSTOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72615KCOVER, REAR SEAT LOCK STRIKER, RH
BLACK,TRIM0#,2#
72615LCOVER, REAR SEAT LOCK STRIKER, LH
BLACK,TRIM0#,2#
7184858260ORNAMENT, FRONT SEAT BRACKET, LH
main71848-58260
9011910951
main90119-10951
9017610009
main90176-10009
9017812014
main90178-12014
19 parts on this diagram · 2 diagrams in section
