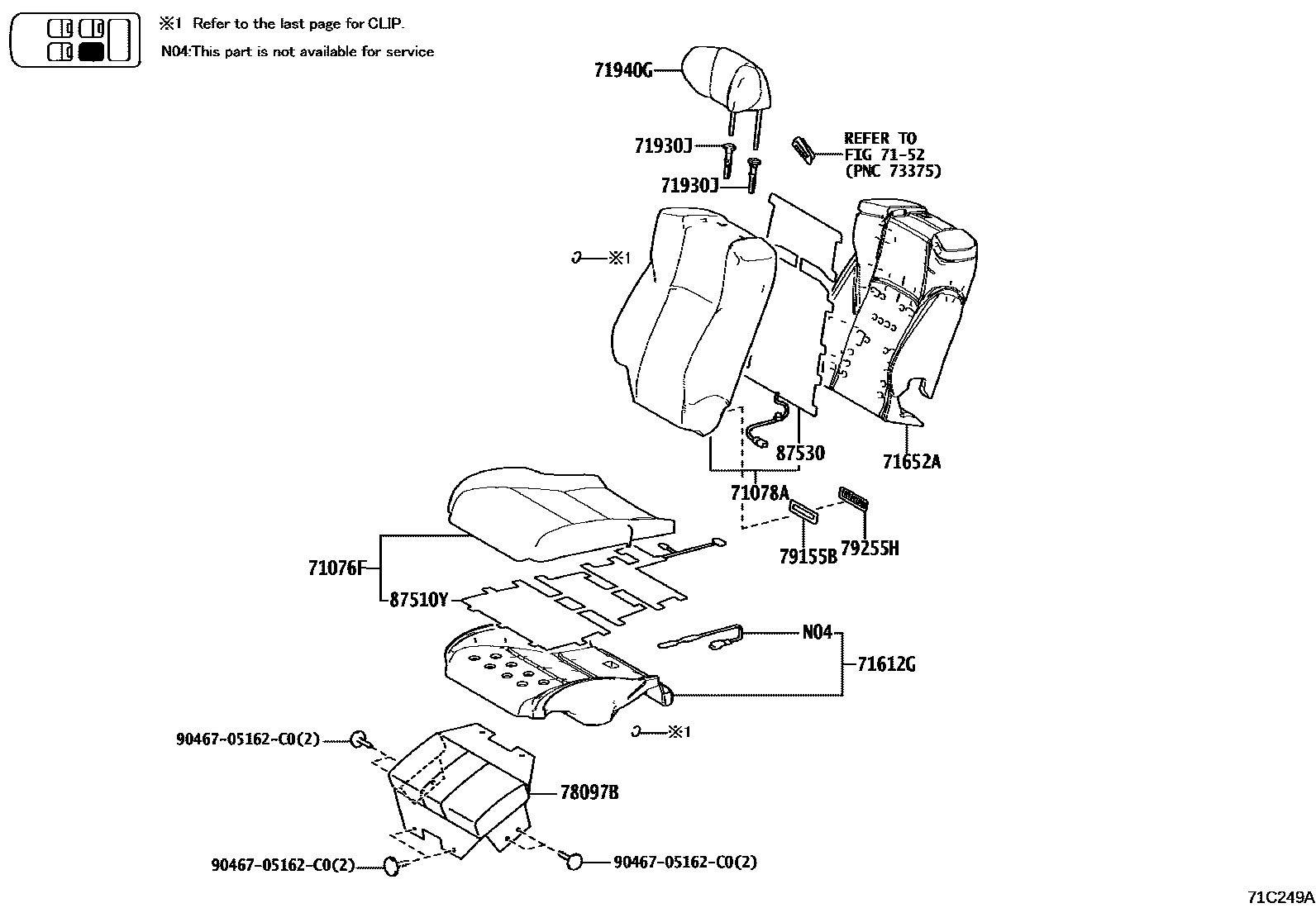

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT,LH 0002 1REAR NO.1 SEAT,LH 0003 1REAR NO.1 SEAT,LH 0004 1REAR NO.1 SEAT,LH 0005 1REAR NO.1 SEAT,LH 0006 1REAR NO.1 SEAT,RH 0007 1REAR NO.1 SEAT,RH 0008 1REAR NO.1 SEAT,RH 0009 1REAR NO.1 SEAT,RH 0010 1REAR NO.1 SEAT,RH 0011 1REAR NO.2 SEAT,LH 0012 1REAR NO.2 SEAT,LH 0013 1REAR NO.2 SEAT,RH 0014 1REAR NO.2 SEAT,RH 0015 1LH SIDE 0016 1LH SIDE 0017 1LH SIDE 0018 1RH SIDE 0019 1RH SIDE 0020 1RH SIDE 0021 1HOOK & STOPPER 0022 1SEAT EDGE WIRE & CLIP

71076FCOVER SUB-ASSY, NO.1 SEAT CUSHION, LH

main71076-58470-A4iAYH36,GGH31..V202112

WHITE,TRIM0#

main71076-58470-A5iAYH36,GGH31..V202001-202111

WHITE,TRIM0#

main71076-58470-C3iAYH36,GGH31..V202112

BLACK,TRIM2#

main71076-58470-C4iAYH36,GGH31..V202001-202111

BLACK,TRIM2#

main71076-58510-A0iAYH36,GGH31..X202112

WHITE,TRIM0#

main71076-58510-A1iAYH36,GGH31..X202001-202111

WHITE,TRIM0#

main71076-58510-C0iAYH36,GGH31..X202112

BLACK,TRIM2#

main71076-58510-C1iAYH36,GGH31..X202001-202111

BLACK,TRIM2#

71078ACOVER SUB-ASSY, REAR NO.1 SEATBACK, LH

main71078-58390-A5iAYH36,GGH31..V202001

WHITE,TRIM0#

main71078-58390-C3iAYH36,GGH31..V202001

BLACK,TRIM2#

main71078-58440-A0iAYH36,GGH31..X202002

WHITE,TRIM0#

main71078-58440-C0iAYH36,GGH31..X202002

BLACK,TRIM2#

7152

71612GPAD, REAR NO.1 SEAT CUSHION, LH

main71612-58100iAYH36,GGH31..V202001

71652APAD, REAR NO.1 SEATBACK, LH

main71652-58100iAYH36,GGH31..V202001

71930JSUPPORT ASSY, NO.1 SEAT HEADREST, LH

main71930-44020-21iAYH36,GGH31..V202001-202204

W(LOCK),BLACK,TRIM0#,2#

sub71930-44020

sub71930-02370

main71930-52030-C4iAYH36,GGH31..V202204

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

sub71930-52030

71940GHEADREST ASSY, NO.1 SEAT, LH

main71940-58600-A0iAYH36,GGH31..X202002

WHITE,TRIM0#

main71940-58600-C0iAYH36,GGH31..X202002

BLACK,TRIM2#

main71940-58630-A0iAYH36..LHD..V202001-202005

WHITE,TRIM0#,W(CCC MARK)

sub71940-58630

main71940-58630-A1iAYH36,GGH31..V202111

WHITE,TRIM0#

sub71940-58630

main71940-58630-A1iAYH36..LHD..V202005

WHITE,TRIM0#,W(CCC MARK)

sub71940-58630

main71940-58630-C0iAYH36..LHD..V202001-202005

BLACK,TRIM2#,W(CCC MARK)

sub71940-58630

main71940-58630-C1iAYH36..LHD..V202005

BLACK,TRIM2#,W(CCC MARK)

sub71940-58630

main71940-58630-C1iAYH36,GGH31..V202111

BLACK,TRIM2#

sub71940-58630

78097BCOVER SUB-ASSY, NO.1 SEAT FOOTREST(FOR LH SEAT)

main78097-58020-A1iAYH36,GGH31..V202001

WHITE,TRIM0#

main78097-58020-C0iAYH36,GGH31..V202001

BLACK,TRIM2#

79155BPLATE, NO.1 SEATBACK, NO.1(FOR LH SEAT)

main79155-58020-C0iAYH36,GGH31..V202001

BLACK,TRIM0#,2#

79255HPLATE, NO.1 SEATBACK, NO.2(FOR LH SEAT)

main79255-58020-C0iAYH36,GGH31..V202001

BLACK,TRIM0#,2#

87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH

main87510-58100iAYH36,GGH31..V202001

87530HEATER ASSY, REAR NO.1 SEATBACK, LH

main87530-58060iAYH36,GGH31..V202001

9046705162C0

main90467-05162C0

13 parts on this diagram · 22 diagrams in section
