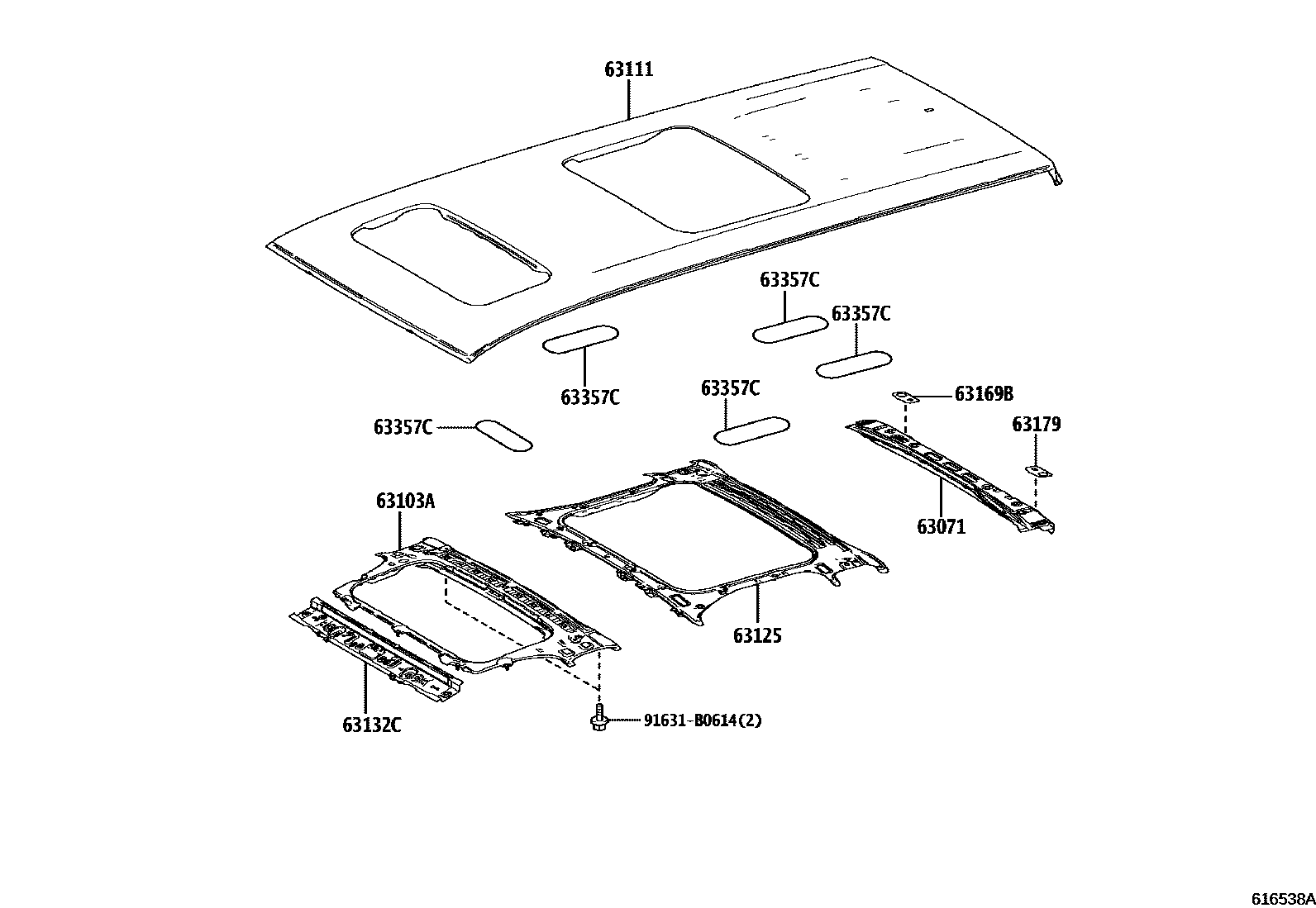

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF,FRONT 0003 1SLIDING ROOF,REAR

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-58030iAYH36,GGH31202001

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-58030iAYH36,GGH31202001

63111PANEL, ROOF

main63111-58070supersedes 63111-58080iGGH31;AYH36..RHD202001

TAIWAN SPEC

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-58030iAYH36,GGH31202001

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-58030iAYH36,GGH31202001

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iAYH36,GGH31202001

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iAYH36,GGH31202001

63357CSILENCER, ROOF

main63357-58010×5iAYH36,GGH31202001

91631B0614

main91631-B0614

9 parts on this diagram · 3 diagrams in section
