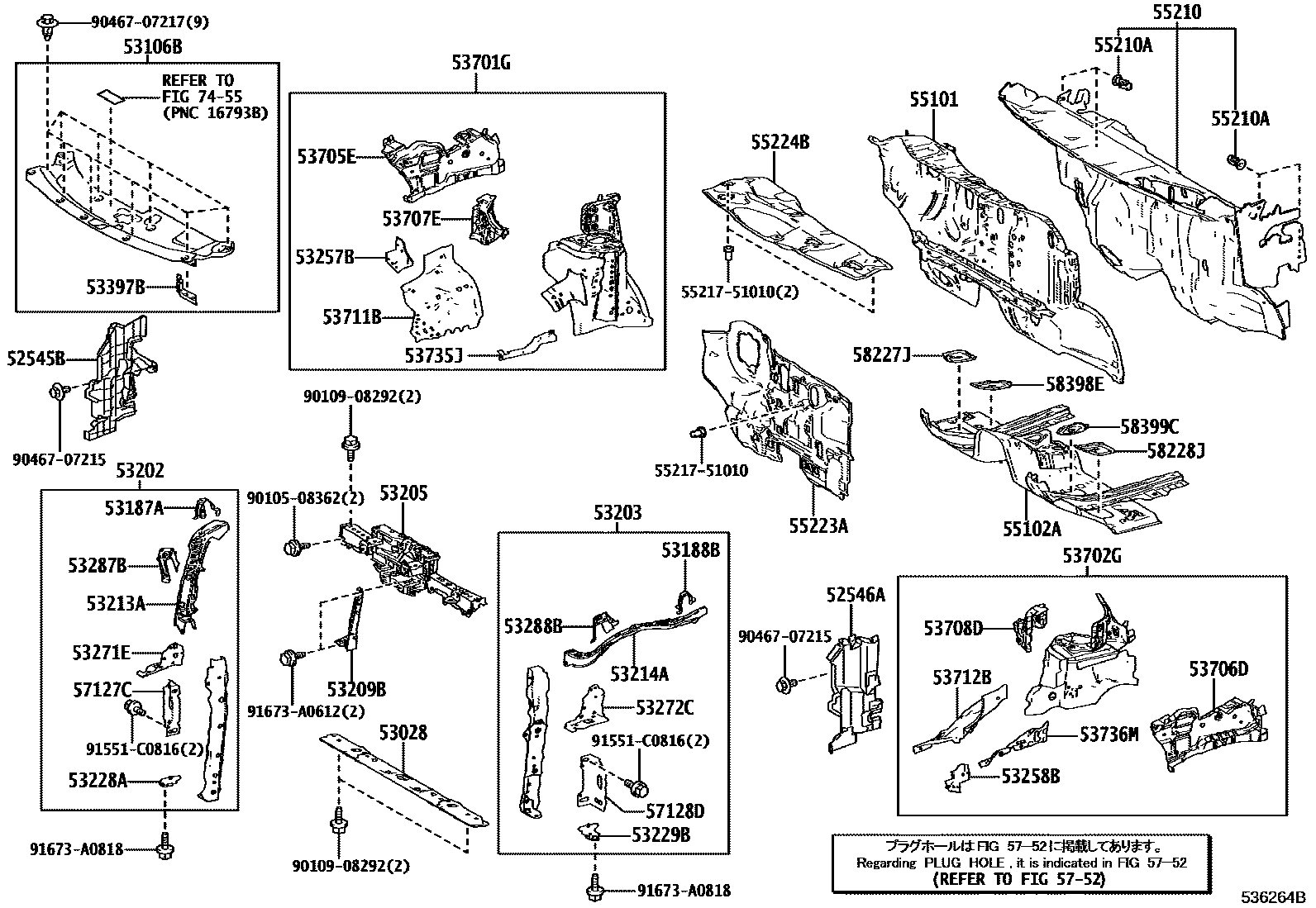

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52545BSEAL, FRONT BUMPER SIDE, NO.2 RH

main52545-58100iAYH36,GGH31202001

52546ASEAL, FRONT BUMPER SIDE, NO.2 LH

main52546-58100iAYH36,GGH31202001

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-28050iAYH36,GGH31202001

53106BCOVER SUB-ASSY, RADIATOR

main53106-58120iAYH36,GGH31202001

53187ASTAY, RADIATOR SUPPORT, RH

main53187-58020iAYH36,GGH31202001

53188BSTAY, RADIATOR SUPPORT, LH

main53188-58020iAYH36,GGH31202001

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-58050iAYH36,GGH31202001

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-58060iAYH36,GGH31202001

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-58080iAYH36,GGH31202001

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-58040iAYH36,GGH31202001

53213ASUPPORT, RADIATOR, UPPER RH

main53213-58030iAYH36,GGH31202001

53214ASUPPORT, RADIATOR, UPPER LH

main53214-58030iAYH36,GGH31202001

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-28040iAYH36,GGH31202001

53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-28030iAYH36,GGH31202001

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-58010iAYH36,GGH31202001

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-58010iAYH36,GGH31202001

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-58010iAYH36,GGH31202001

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-58010iAYH36,GGH31202001

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-58020iAYH36,GGH31202001

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-58020iAYH36,GGH31202001

53397BSEAL, RADIATOR, UPPER

main53396-58010iAYH36,GGH31202001

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-58070iAYH36,GGH31202001

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-58060iAYH36,GGH31202001

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-58030iAYH36,GGH31202001

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-58030iAYH36,GGH31202001

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-58030iAYH36,GGH31202001

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-58030iAYH36,GGH31202001

53711BAPRON, FRONT FENDER, FRONT RH

main53711-28100iAYH36,GGH31202001

53712BAPRON, FRONT FENDER, FRONT LH

main53712-28080iAYH36,GGH31202001

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-28020iAYH36,GGH31202001

53736MPATCH, FRONT FENDER APRON, NO.6

main53736-28030iAYH36,GGH31202001

55101PANEL SUB-ASSY, DASH

main55015-58051iGGH31..LHD202001

main55015-58070iGGH31..RHD202001

main55015-58080iAYH36..RHD202001

main55015-58090iAYH36..LHD202001

55102APANEL SUB-ASSY, DASH, LOWER

main55102-58040iGGH31202001

main55102-58050iAYH36202001

55210INSULATOR ASSY, DASH PANEL

main55210-58080iAYH36,GGH31..RHD202001

main55210-58090iAYH36,GGH31..LHD202001

55210ACLIP

main90467-13079iAYH36,GGH31202001

55223AINSULATOR, DASH PANEL, OUTER

main55223-58090iAYH36,GGH31..RHD202001

main55223-58100iAYH36,GGH31..LHD202001

55224BINSULATOR, DASH PANEL, OUTER NO.2

main55224-58050iAYH36,GGH31..RHD202001

main55224-58060iAYH36,GGH31..LHD202001

57127CREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57127-28110iAYH36,GGH31202001

57128DREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57128-28080iAYH36,GGH31202001

5752

58227JPLATE, FLOOR PANEL SIDE, RH

main58227-58010iAYH36,GGH31202001

58228JPLATE, FLOOR PANEL SIDE, LH

main58228-58010iAYH36,GGH31202001

58398ECOVER, FLOOR UNDER, NO.1

main58398-58040iAYH36,GGH31202001

58399CCOVER, FLOOR UNDER, NO.2

main58399-58030iAYH36,GGH31202001

7455

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

9010508362

main90105-08362

9010908292

main90109-08292

9046707215

main90467-07215

9046707217

main90467-07217

91551C0816

main91551-C0816

91673A0612

main91673-A0612

91673A0818

main91673-A0818

53 parts on this diagram · 2 diagrams in section
