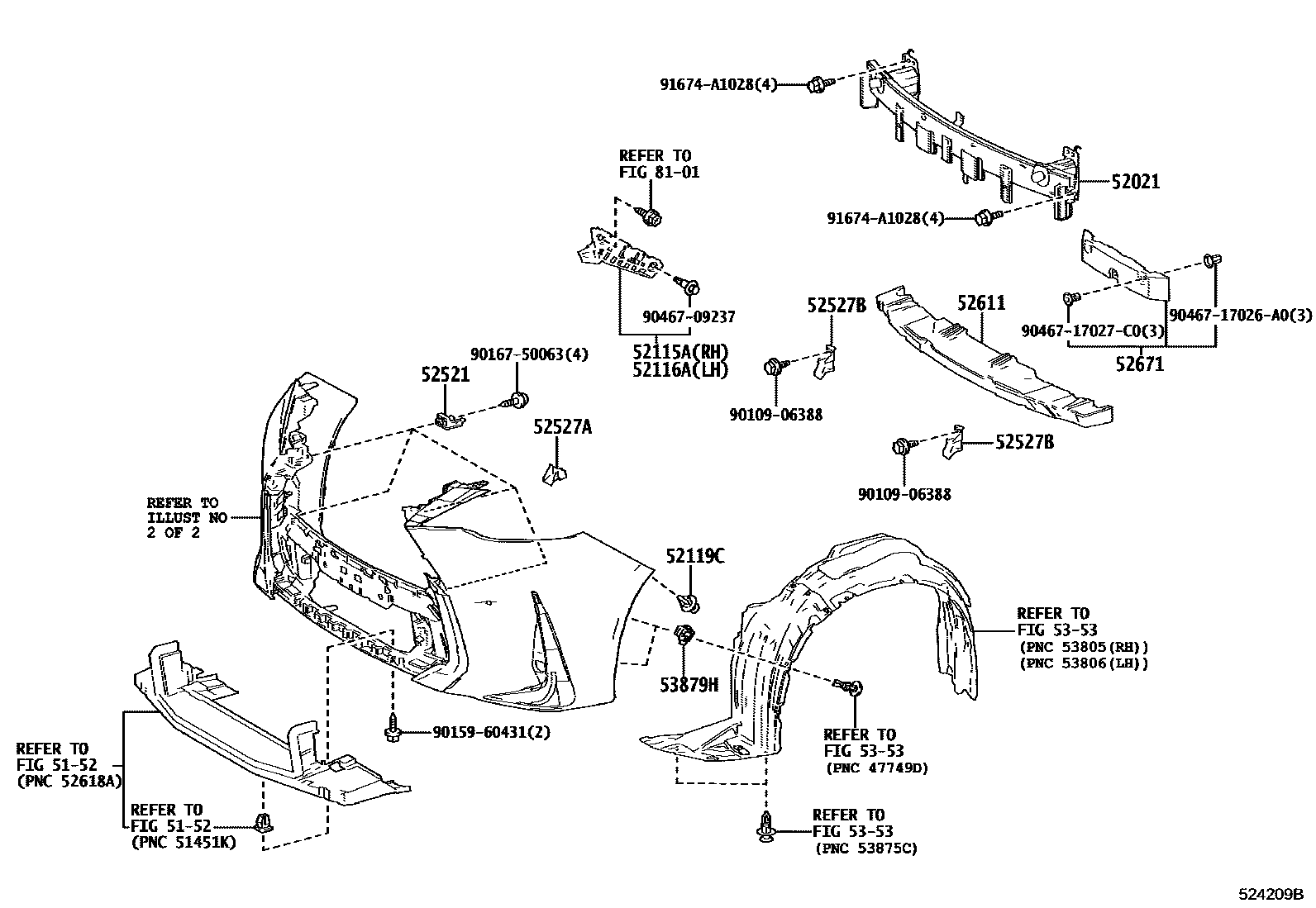

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-58040iAYH36,GGH31202001

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-58080iAYH36,GGH31202001

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-58080iAYH36,GGH31202001

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAYH36,GGH31202001

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52526-60040iAYH36,GGH31202001

52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2

main52527-58010iAYH36,GGH31202001

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-58020iAYH36,GGH31202001

52611ABSORBER, FRONT BUMPER ENERGY

main52611-58060iAYH36,GGH31202001

52671EXTENSION, FRONT BUMPER ARM

main52671-58010iAYH36,GGH31202001

5353

53879HRETAINER, FRONT FENDER LINER

main53879-30060iAYH36,GGH31202001

8101

9010906388

main90109-06388

9015960431

main90159-60431

9016750063

main90167-50063

9046709237

main90467-09237

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

91674A1028

main91674-A1028

20 parts on this diagram · 2 diagrams in section
