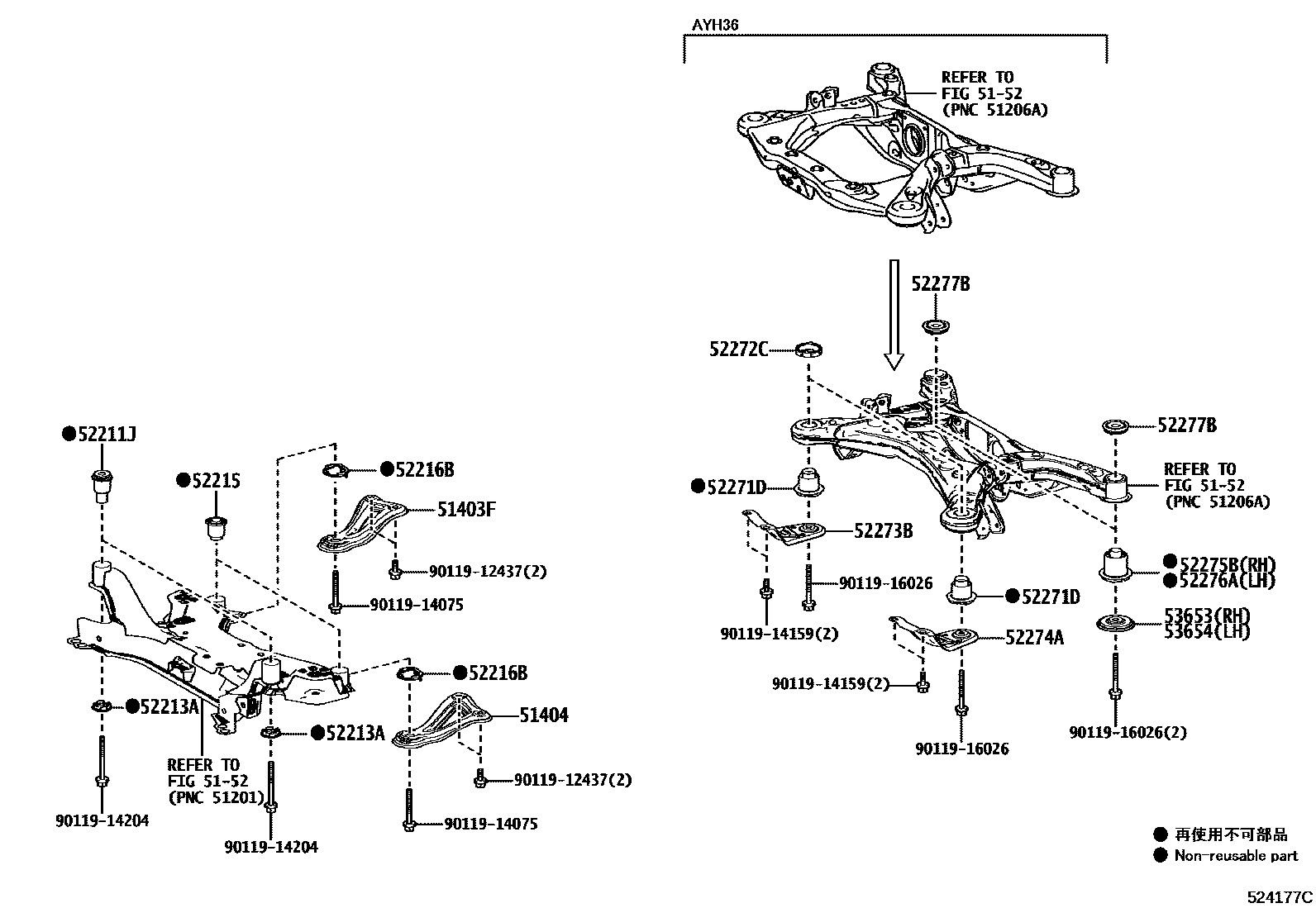

CAB MOUNTING & BODY MOUNTING

51403FBRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-58010iGGH31202001

main51403-58020iAYH36202001

51404BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-58010iGGH31202001

main51404-58020iAYH36202001

5152

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-58010×2iGGH31202001

main52211-58020×2iAYH36202001

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-58020×2iAYH36,GGH31202001

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-58010×2iGGH31202001

main52215-58020×2iAYH36202001

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-58020×2iAYH36,GGH31202001

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-58010×2iAYH36,GGH31202001

52272CSTOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-58010×2iAYH36,GGH31202001

52273BSTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-58010iAYH36,GGH31202001

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-58010iAYH36,GGH31202001

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-58010iAYH36,GGH31202001

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-58010iAYH36,GGH31202001

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-58010×2iAYH36,GGH31202001

53653BRACE, REAR SUSPENSION, LOWER RH

main53653-48010iAYH36,GGH31202001

53654BRACE, REAR SUSPENSION, LOWER LH

main53653-48010iAYH36,GGH31202001

9011912437

main90119-12437

9011914075

main90119-14075

9011914159

main90119-14159

9011914204

main90119-14204

9011916026

main90119-16026

21 parts on this diagram · 1 diagram in section
