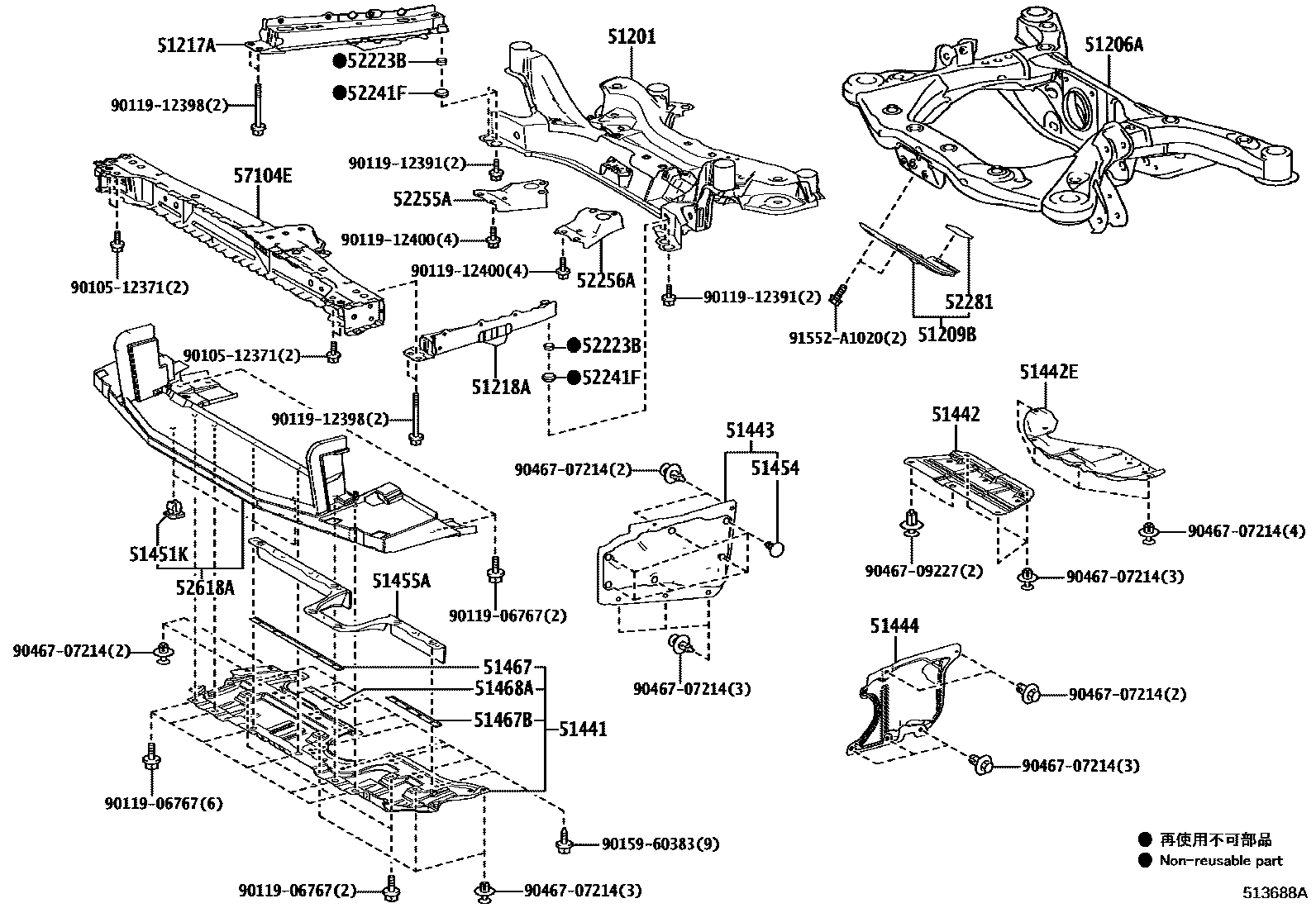

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER & UNDER COV0002 1SUSPENSION MEMBER & UNDER COV0003 1FLOOR COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28281iAYH36,GGH31202001

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-58020iGGH31202001

main51206-58040iAYH36202001

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-58010iAYH36202001

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-28020iGGH31202001

main51107-28030iAYH36202001

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-28030iAYH36202001

main51108-28040iGGH31202001

51441COVER, ENGINE UNDER, NO.1

main51440-58030iGGH31..6FC202001-202205

main51440-V2010iGGH31..6FC202205

51442COVER, ENGINE UNDER, NO.2

main51442-12270iAYH36,GGH31202001

51442ECOVER, ENGINE UNDER, NO.2

main51442-12210iAYH36,GGH31202001

51443COVER, ENGINE UNDER, REAR RH

main51443-58030iGGH31202001-202205

main51460-28050iAYH36202001

main51460-V2010iGGH31202205

51444COVER, ENGINE UNDER, REAR LH

main51444-58030iGGH31202001-202205

main51444-75010iAYH36202001

main51444-V2010iGGH31202205

51451KGROMMET, SCREW, NO.1

main90189-06237iAYH36,GGH31202001

51454CLIP

main90467-05161-C9iAYH36202001

BLACK

sub90467-05161

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-58010iAYH36,GGH31202001

51467RETAINER, ENGINE UNDER COVER

main51468-58010iAYH36,GGH31202001

51467BRETAINER, ENGINE UNDER COVER

main51468-58020iAYH36,GGH31202001

51468ARETAINER, ENGINE UNDER COVER, NO.2

main51468-58030iAYH36,GGH31202001

52223BSPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER

main52223-28010iAYH36,GGH31202001

52241FCUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR

main52241-28010iAYH36,GGH31202001

52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-28030iAYH36,GGH31202001

52256ABRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-28030iAYH36,GGH31202001

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-58010iAYH36202001

52618AABSORBER, FRONT BUMPER, LOWER

main52618-58050iAYH36,GGH31202001

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iAYH36,GGH31202001

9010512371

main90105-12371

9011906767

main90119-06767

9011912391

main90119-12391

9011912398

main90119-12398

9011912400

main90119-12400

9015960383

main90159-60383

9046707214

main90467-07214

9046709227

main90467-09227

91552A1020

main91552-A1020

32 parts on this diagram · 3 diagrams in section
