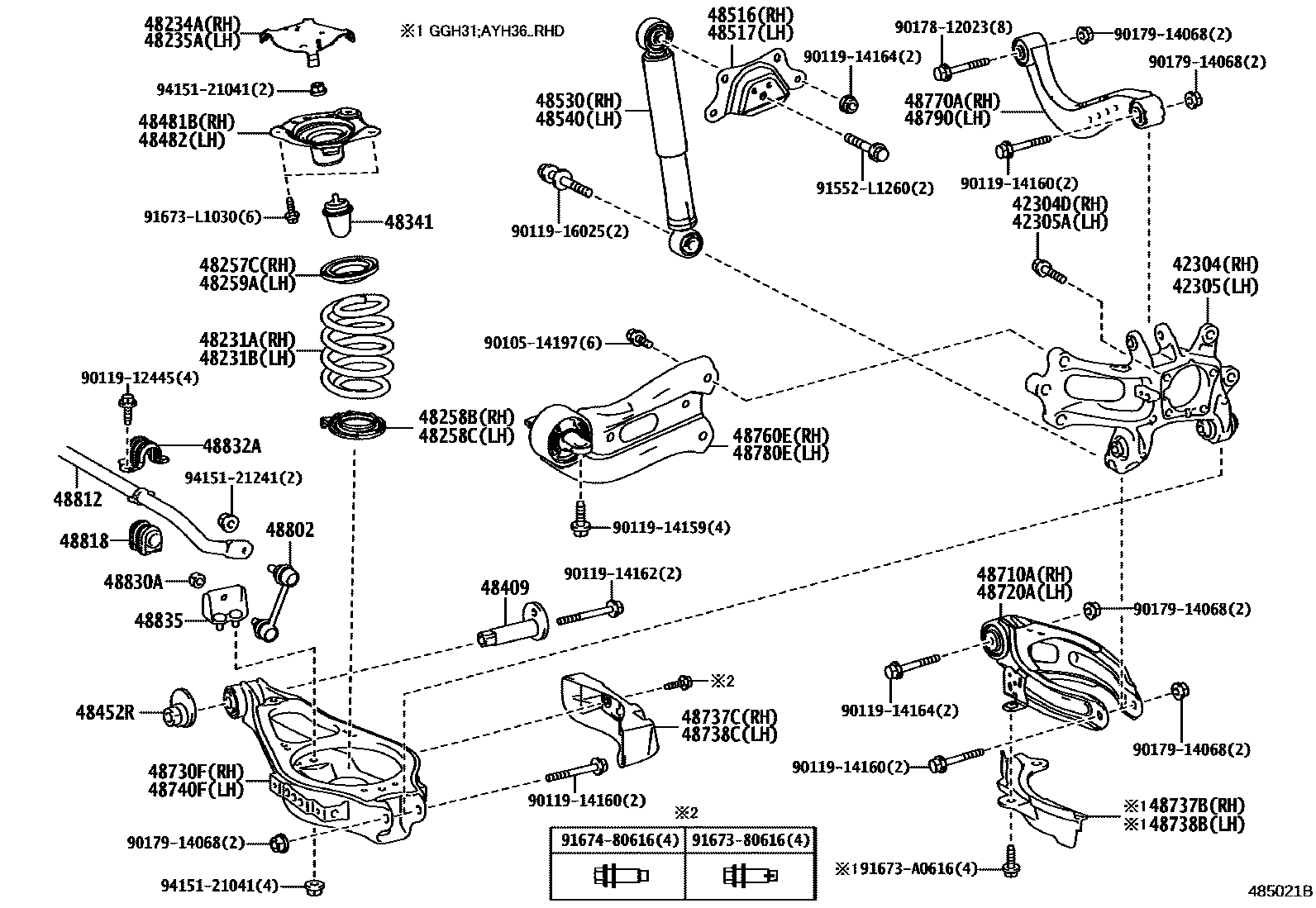

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304DBOLT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
42305ABOLT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48234ACOVER, SEAT COIL SPRING, REAR RH
48235ACOVER, SEAT COIL SPRING, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48481BSEAT, REAR SPRING, UPPER RH
48482SEAT, REAR SPRING, UPPER LH
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-58300
MARK 48530-58310
MARK 48530-58320
MARK 48530-58321
MARK 48530-58330
MARK 48530-58331
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-58300
MARK 48530-58310
MARK 48530-58320
MARK 48530-58321
MARK 48530-58330
MARK 48530-58331
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737BCOVER, LOWER CONTROL ARM, RH NO.1
48737CCOVER, LOWER CONTROL ARM, RH NO.2
48738BCOVER, LOWER CONTROL ARM, LH NO.1
48738CCOVER, LOWER CONTROL ARM, LH NO.2
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48802LINK SUB-ASSY, STABILIZER
LH
RH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48832ABRACKET, REAR STABILIZER BAR, NO.1
48835BRACKET, REAR STABILIZER, LOWER
9010514197
main90105-14197
9011912445
main90119-12445
9011914159
main90119-14159
9011914160
main90119-14160
9011914162
main90119-14162
9011914164
main90119-14164
9011916025
main90119-16025
9017812023
main90178-12023
9017914068
main90179-14068
91552L1260
main91552-L1260
9167380616
main91673-80616
91673A0616
main91673-A0616
91673L1030
main91673-L1030
9167480616
main91674-80616
9415121041
main94151-21041
9415121241
main94151-21241
55 parts on this diagram · 1 diagram in section
