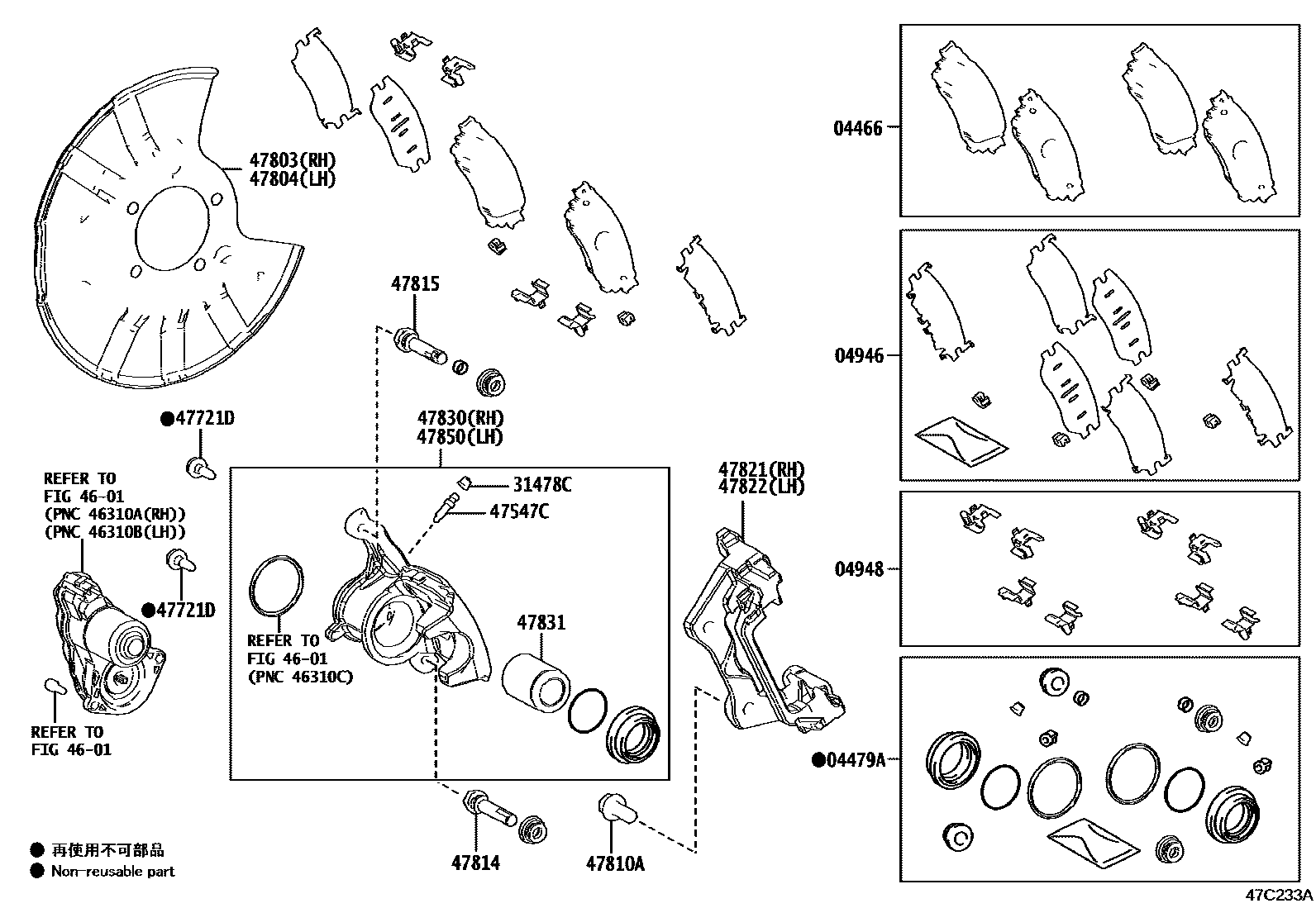

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-58022iAYH36,GGH31202001

MARK NS554-FG

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-58031iAYH36,GGH31202001

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-58010iAYH36,GGH31202001

04948FITTING KIT, DISC BRAKE, REAR

main04948-58010iAYH36,GGH31202001

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAYH36,GGH31202001

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAYH36,GGH31202001

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAYH36,GGH31202001

*8-1.00PX23-12.5

sub90016-AA614

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-58010iAYH36,GGH31202001

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-58010iAYH36,GGH31202001

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14196iAYH36,GGH31202001

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAYH36,GGH31202001

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAYH36,GGH31202001

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-58030iAYH36,GGH31202001

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-58030iAYH36,GGH31202001

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-58030iAYH36,GGH31202001

47831PISTON, REAR DISC BRAKE

main47831-58030iAYH36,GGH31202001

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-58030iAYH36,GGH31202001

18 parts on this diagram · 1 diagram in section
