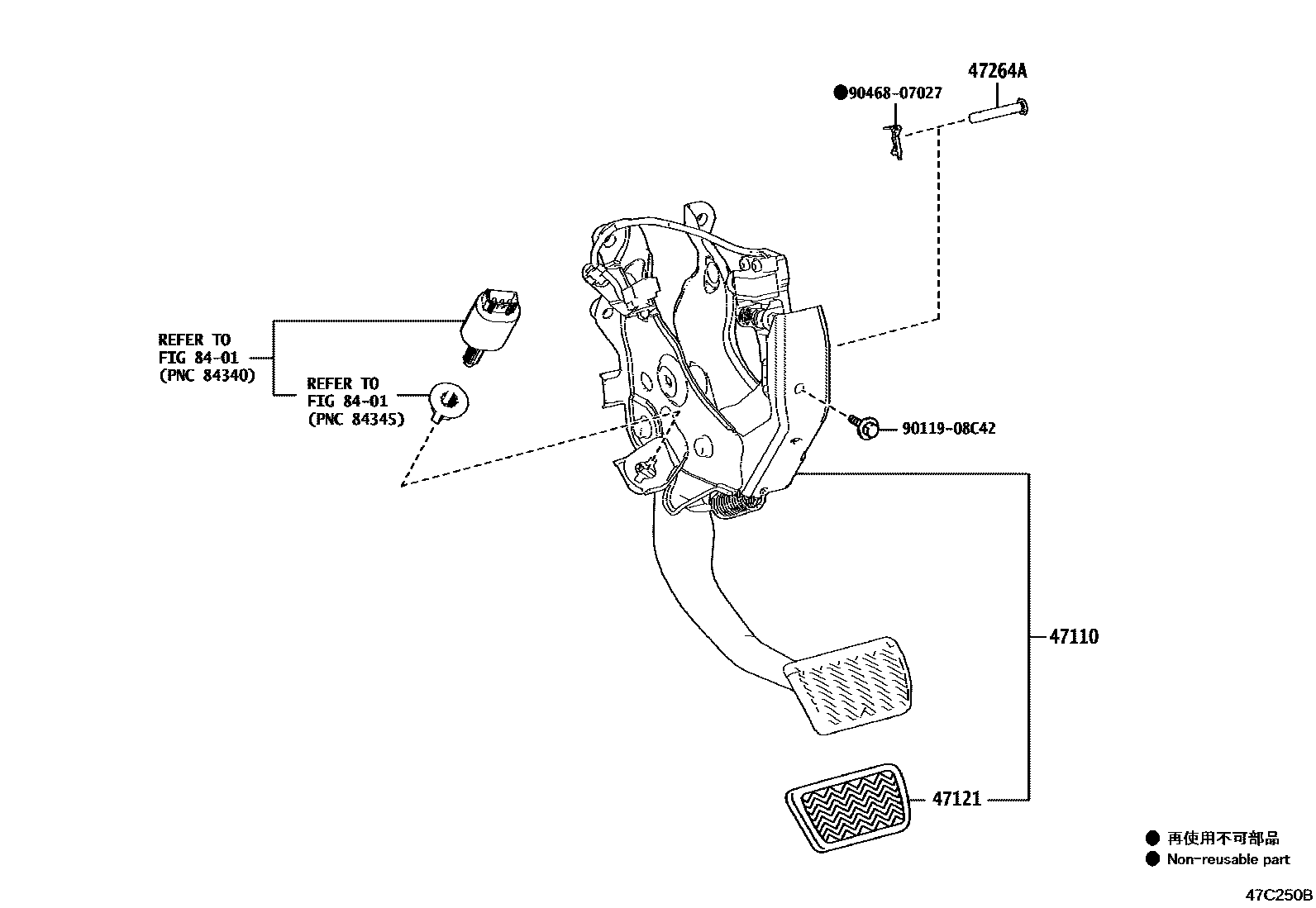

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47110SUPPORT ASSY, BRAKE PEDAL

main47110-58081iGGH31..RHD202001

main47110-58091iGGH31..LHD202001

main47110-58100iAYH36..RHD202001

main47110-58110iAYH36..LHD202001

47121PAD, BRAKE PEDAL

main47121-42020iAYH36,GGH31202001

47264APIN(FOR PUSH ROD)

main90240-06028iGGH31202001

main90240-08078iAYH36202107

main90240-08082iAYH36202001-202106

8401

9011908C42

main90119-08C42

9046807027

main90468-07027

6 parts on this diagram · 4 diagrams in section
