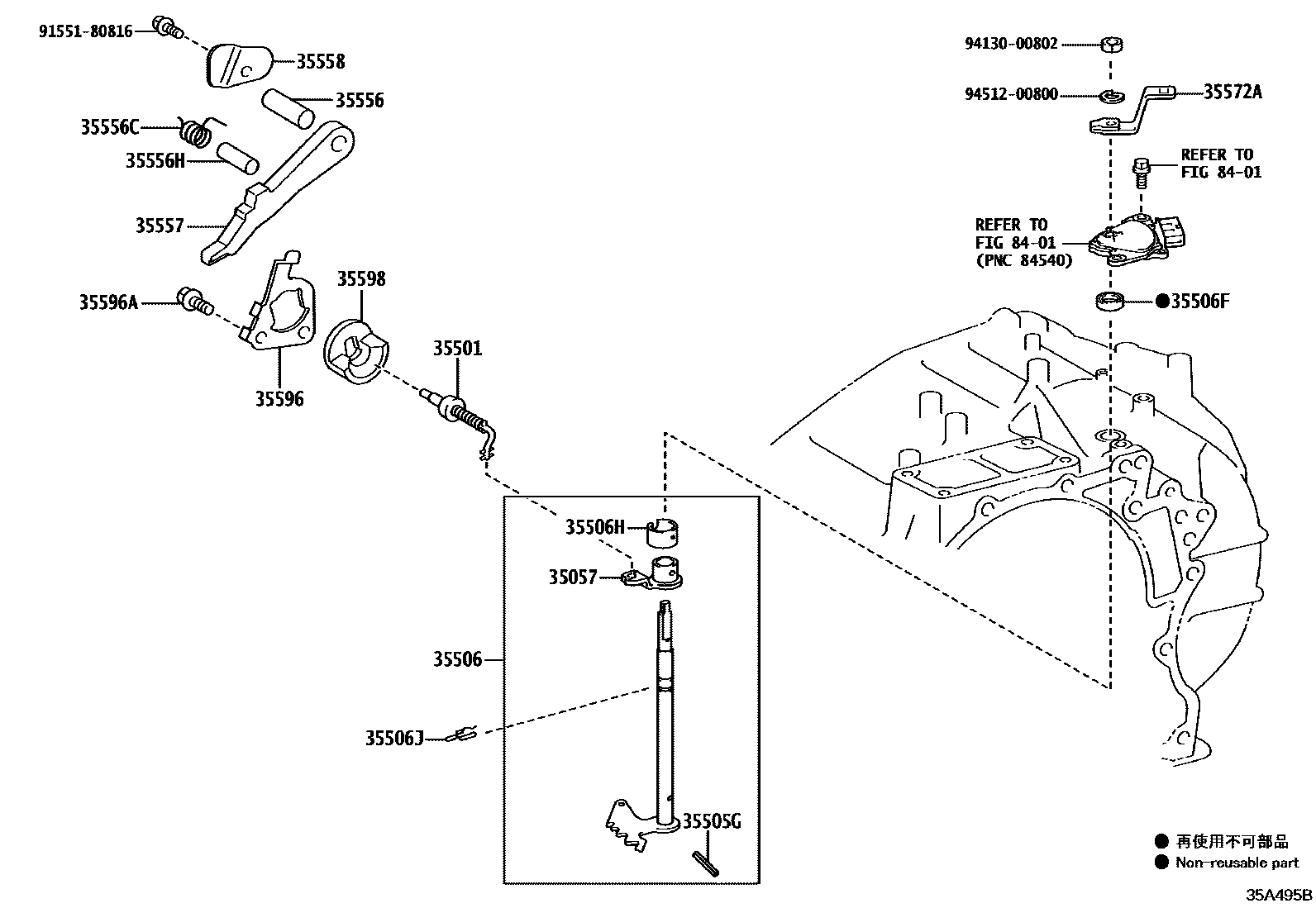

THROTTLE LINK & VALVE LEVER (ATM)
35057LEVER SUB-ASSY,PARKING LOCK
35501ROD SUB-ASSY, PARKING LOCK
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35505LEVER SUB-ASSY, MANUAL VALVE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
NO.2,AISIN:SEE 35-01
*229,NO.2:REF.ILLUST
*229,NO.1:REF.ILLUST
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35556SHAFT, PARKING LOCK PAWL
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
35556HSHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35558CLAMP, PAWL SHAFT
35572ALEVER, TRANSMISSION CONTROL SHAFT
AISIN AW:REFER 35-01
35596PLATE, PAWL STOPPER
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5
35598SLEEVE, PARKING LOCK
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
8401
9155180816
main91551-80816
9413000802
main94130-00802
9451200800
main94512-00800
21 parts on this diagram · 2 diagrams in section
