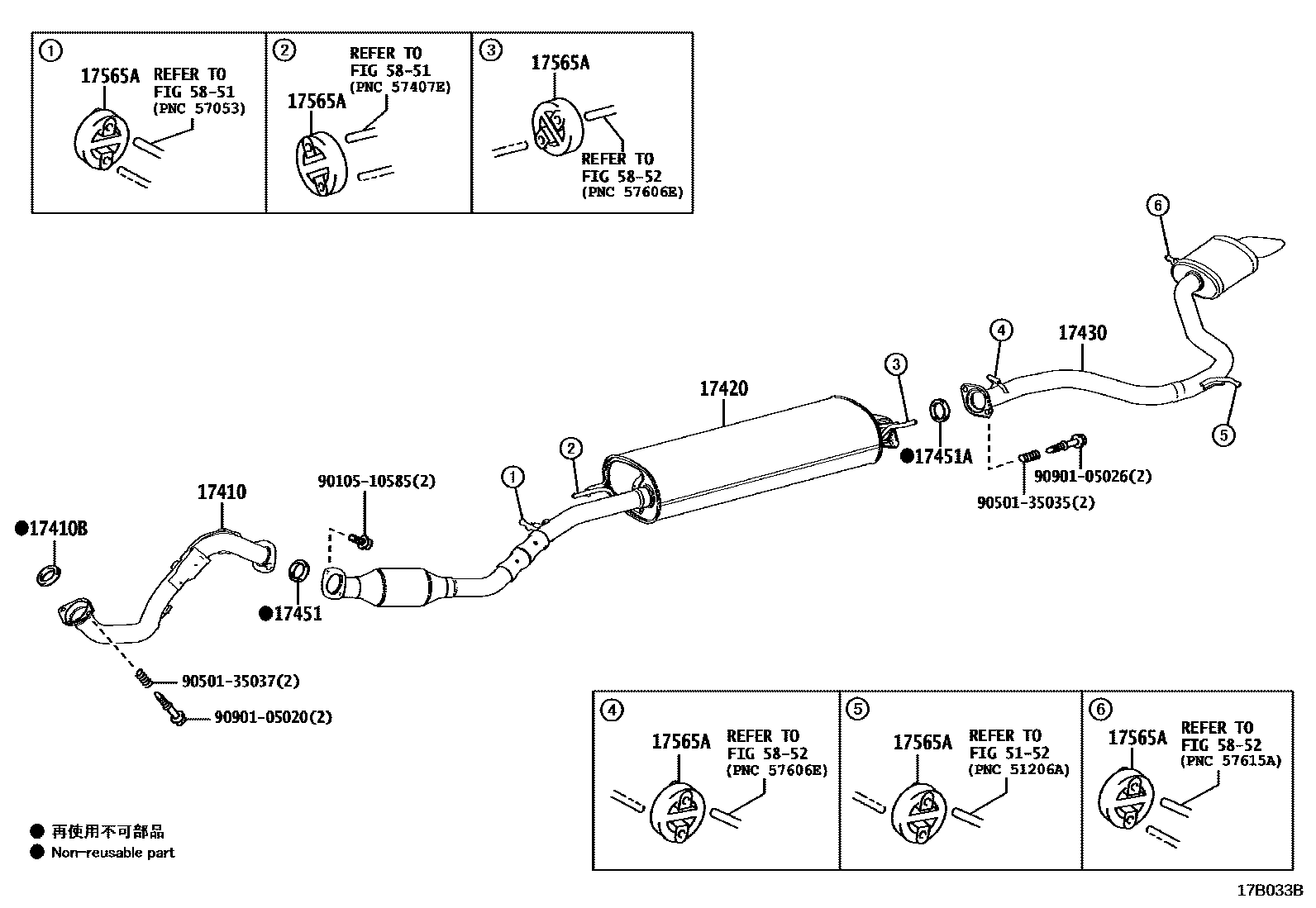

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31L00i2GRFE..GGH31202001

main17410-31L90i2GRFKS..GGH31202001

main17410-36470i2ARFXE..AYH36..RHD202001

TAIWAN SPEC

main17410-36580i2ARFXE..AYH36..LHD202001

17410BGASKET, EXHAUST PIPE

main17451-28040i2ARFXE..AYH36202001

sub17451-28041

main90917-06089i2GR#..GGH31202001

17420PIPE ASSY, EXHAUST, CENTER

main17420-36260i2ARFXE..AYH36..RHD202001

TAIWAN SPEC

main17420-36380i2ARFXE..AYH36..LHD202001

17430PIPE ASSY, EXHAUST, TAIL

main17430-31D71i2GR#..GGH31202001

main17430-36381i2ARFXE..AYH36..RHD202001

TAIWAN SPEC

main17430-36610i2ARFXE..AYH36..LHD202001

17451GASKET, EXHAUST PIPE

main90917-06078i2ARFXE,2GR#..AYH36,GGH31202001

17451AGASKET, EXHAUST PIPE, NO.2

main17451-28022i2ARFXE..AYH36202001

main17451-28040i2GR#..GGH31202001

sub17451-28041

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ARFXE,2GR#..AYH36,GGH31202001

5152

5851

5852

9010510585

main90105-10585

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

15 parts on this diagram · 2 diagrams in section
