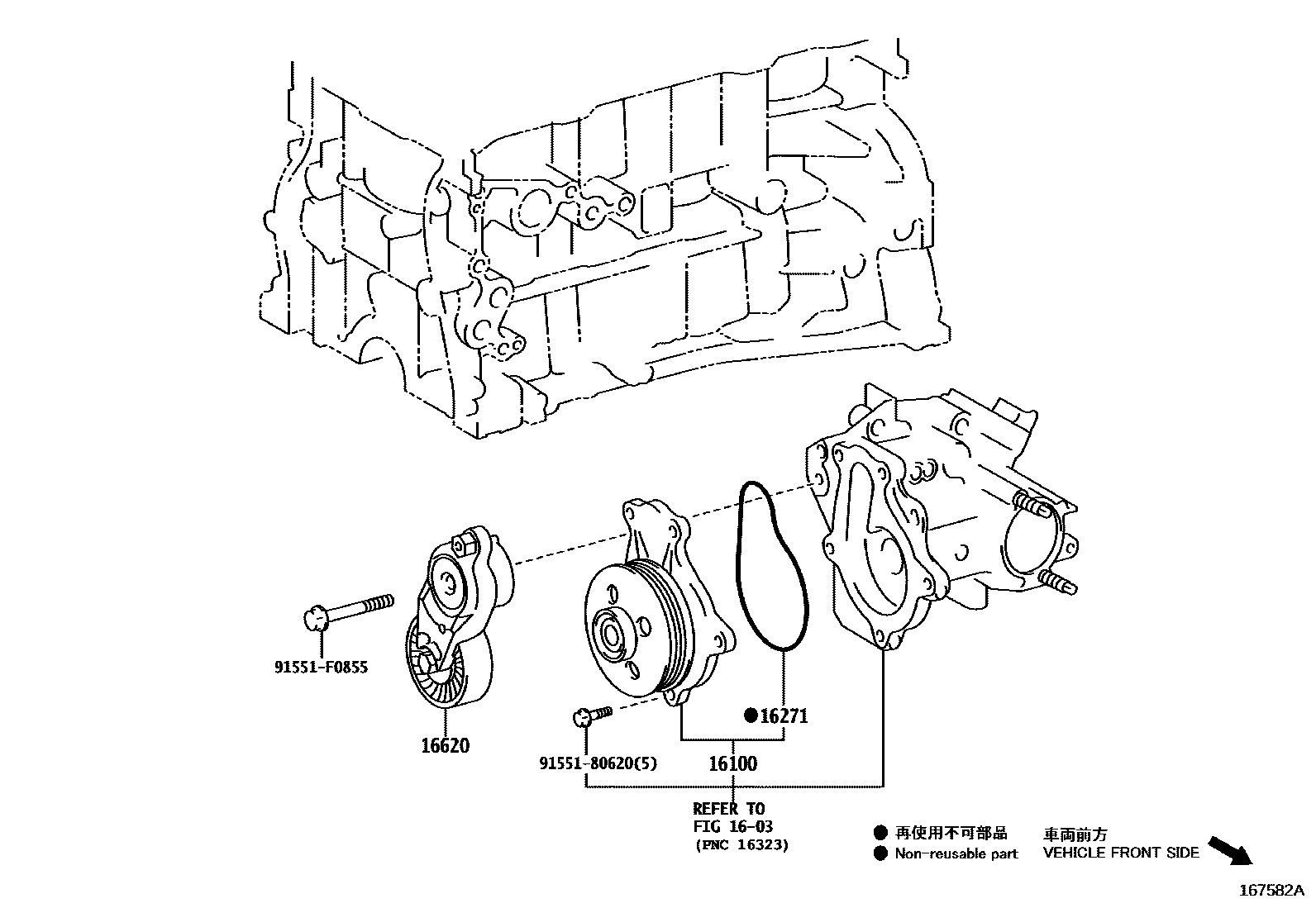

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39456i2GRFE..GGH31202001

main16100-39575i2ARFXE..AYH36202001

main16100-39615i2GRFKS..GGH31202001-202004

sub16100-39616

main16100-39616i2GRFKS..GGH31202004

16271GASKET, WATER PUMP

main16271-31030i2GRFE..GGH31202001

main16271-31050i2GRFKS..GGH31202001

main16271-36030i2ARFXE..AYH36202001

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GGH31202001

main16620-31090i2GRFKS..GGH31202001

main16620-36013i2ARFXE..AYH36202001

9155180620

main91551-80620

91551F0855

main91551-F0855

6 parts on this diagram · 3 diagrams in section
