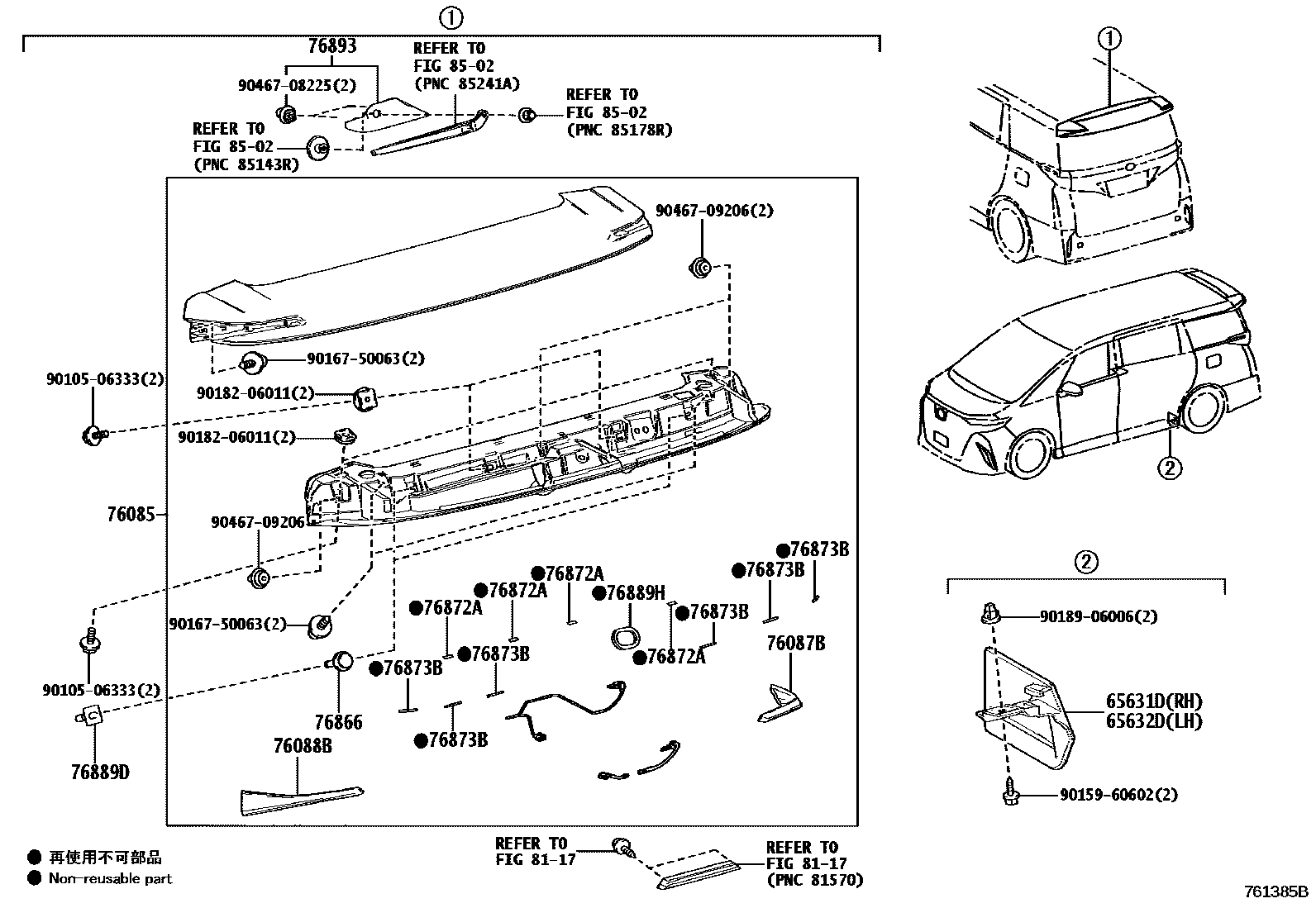

SPOILER & SIDE MUDGUARD

0001 1 0002 1W(DOOR OUTSIDE MOULDING) 0003 1W/O(DOOR OUTSIDE MOULDING)

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

76085SPOILER SUB-ASSY, REAR

main76085-V2901-A0iAAHH4#,AAHP45,AGH40,TAHA40202306

PLATINUM WHITE PEARL MC,089

main76085-V2901-B0iAAHH4#,AAHP45,AGH40,TAHA40202306

PRECIOUS METAL,1L5

main76085-V2901-C0iAAHH4#,AAHP45,AGH40,TAHA40202306

BLACK,202

main76085-V2901-E1iAAHH40..MA;AAHH45..RHD..(L,V);AAHH45..(L,V)..(CHI,TAIW);AAHH40,AAHP45,AGH40,TAHA40..(L,V)..(GEN,MA,TAIW)202306

PRECIOUS LEO-BLOND,4Y7

main76085-V2902-B0iAAHH45..Z202501

CHINA C.V VIP-HI PACKAGE,PRECIOUS METAL,1L5

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76093-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

main76093-V2020iAAHH45..Z202501

CHINA C.V VIP-HI PACKAGE

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76094-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

main76094-V2020iAAHH45..Z202501

CHINA C.V VIP-HI PACKAGE

76866RETAINER, REAR SPOILER, NO.2

main76866-48010iAAHH4#,AAHP45,AGH40,TAHA40202306

76872APROTECTOR, REAR SPOILER, NO.1

main76872-V1010iAAHH4#,AAHP45,AGH40,TAHA40202306

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-V1010iAAHH4#,AAHP45,AGH40,TAHA40202306

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iAAHH4#,AAHP45,AGH40,TAHA40202306

76889HSEAL, REAR SPOILER, NO.1

main76889-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

76893COVER, REAR SPOILER, NO.1

main76893-V2010iAAHH4#,AAHP45,AGH40,TAHA40202306

8117

8502

9010506333

main90105-06333

9015960602

main90159-60602

9016750063

main90167-50063

9018206011

main90182-06011

9018906006

main90189-06006

9046708225

main90467-08225

9046709206

main90467-09206

20 parts on this diagram · 3 diagrams in section
