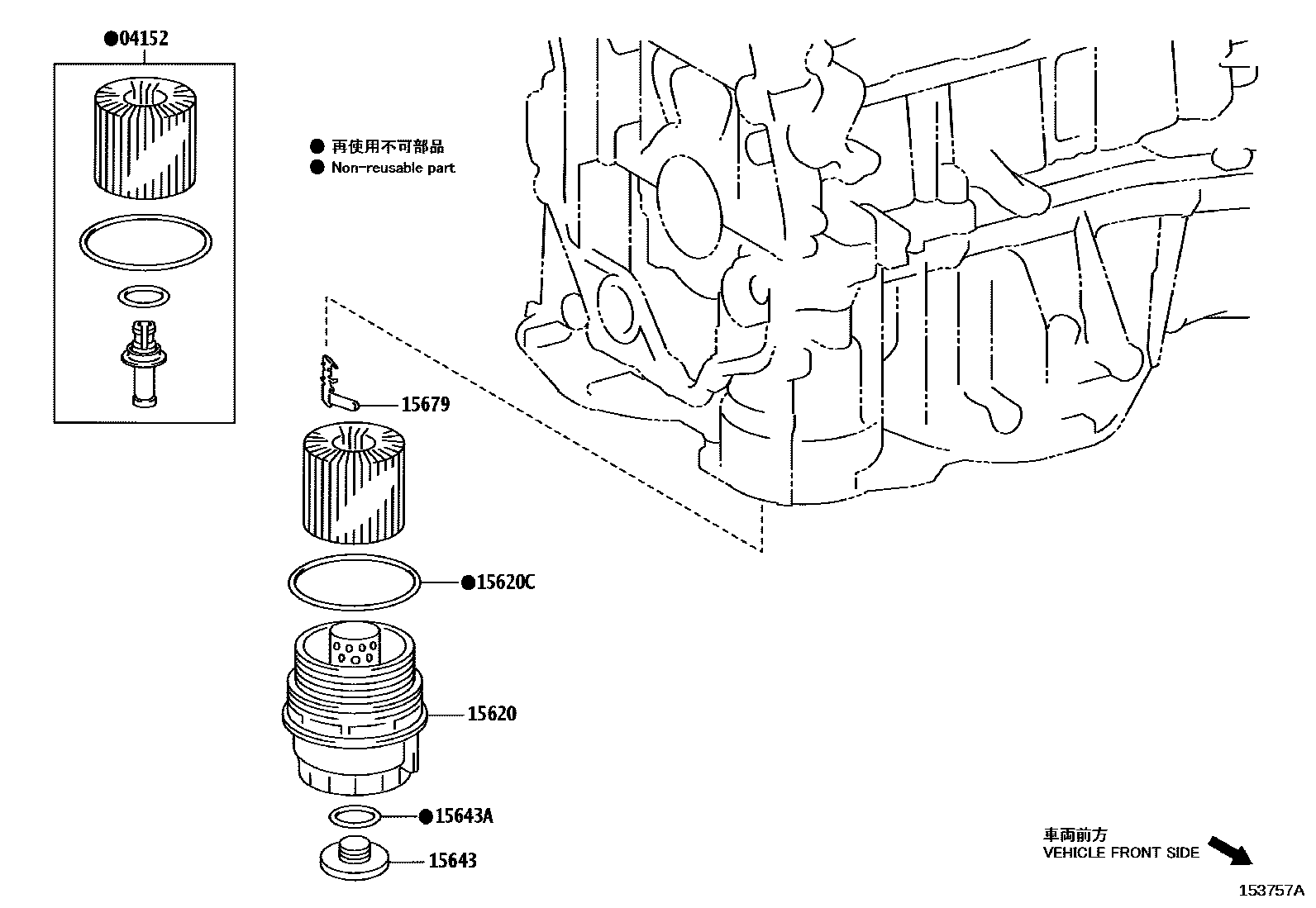

OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-31090i2ARFE..AGH40202306

15620CAP ASSY, OIL FILTER

main15620-31060i2ARFE..AGH40202306

ALUMINUM

main15620-36020i2ARFE..AGH40202306

PLASTIC

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2ARFE..AGH40202306

15643PLUG, OIL FILTER DRAIN

main15643-31050i2ARFE..AGH40202306

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i2ARFE..AGH40202306

15679CLIP, OIL FILTER BRACKET

main15679-37011i2ARFE..AGH40202306

6 parts on this diagram · 3 diagrams in section
