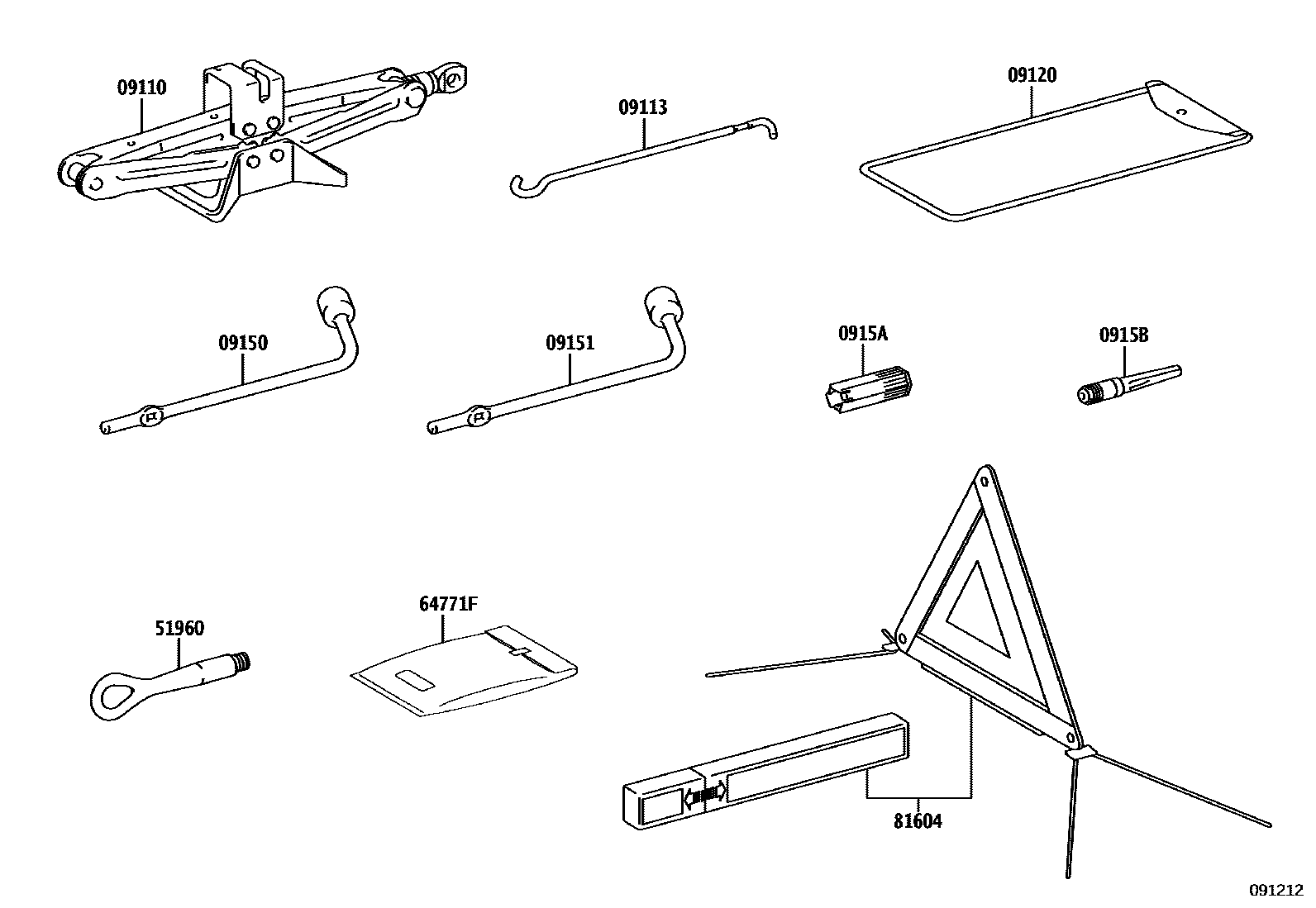

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

09113HANDLE, JACK

main09113-42030iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

09120BAG, TOOL

main09120-37030iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

09150WRENCH, HUB NUT BOX

main09150-V2010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

09151WRENCH, HUB BOLT BOX

main09151-78010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

0915BPIN, WHEEL GUIDE

main0915B-53010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

51960HOOK ASSY, FRONT

main51961-11030iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

64771FCOVER, SPARE WHEEL

main64771-44010iAGH40,TAHA40;AAHH4#..CHI,GEN,KRE,PH,TAIW202306

81604REFLECTOR SET, TRIANGLE

main81604-78010iAAHH45..CHI202306

10 parts on this diagram · 2 diagrams in section
