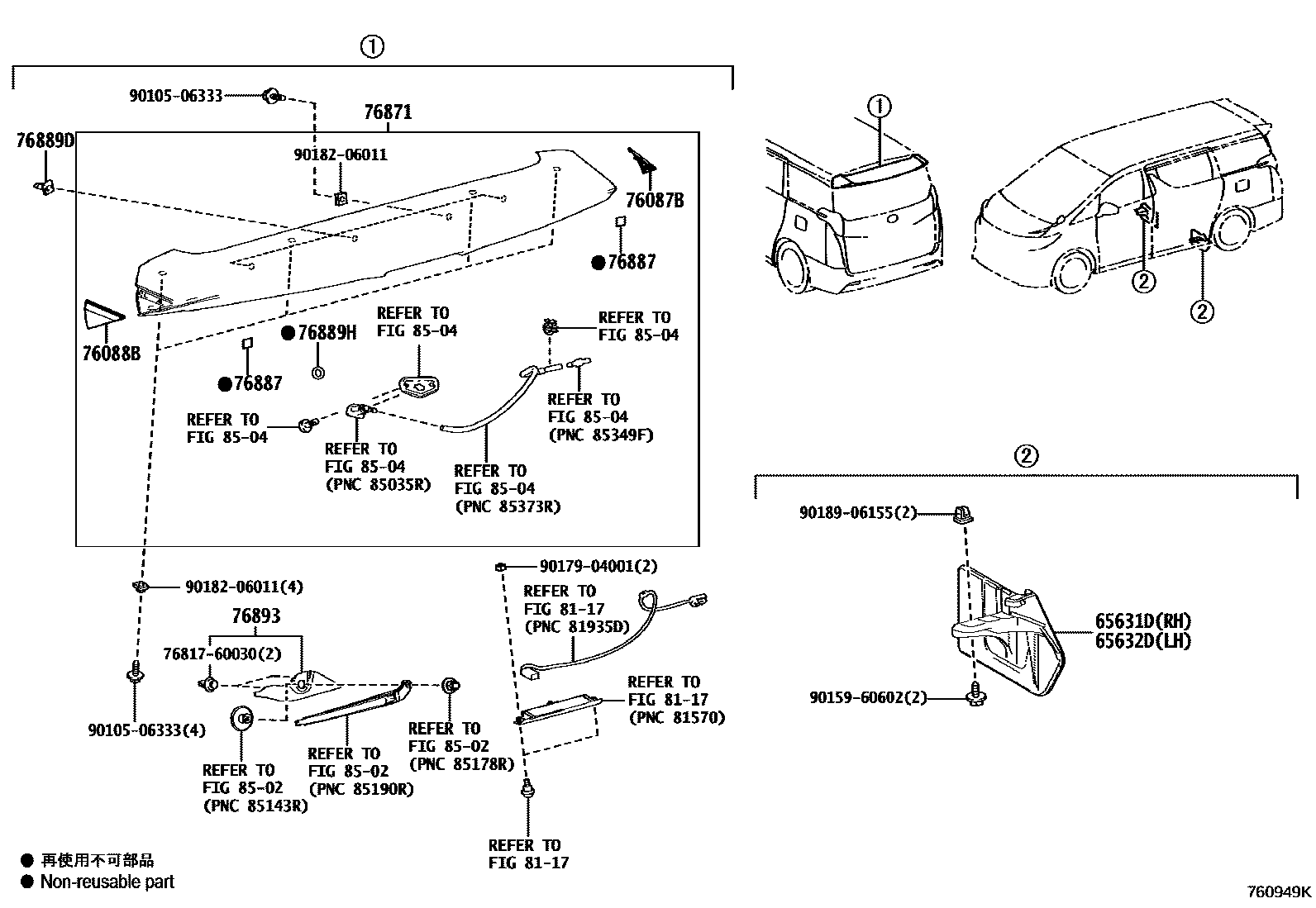

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-58020iGGH30..LHD..V201501-201801

PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)

main65631-58020iGGH30;AGH30,AYH30..RHD201801-202001

main65631-58020iGGH30..LHD..L201501-201801

TAIWAN SPEC&WITHOUT(COLD AREA SPEC)

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-58020iGGH30..LHD..V201501-201801

TAIWAN SPEC&WITHOUT(COLD AREA SPEC)

main65632-58020iGGH30..LHD..V201501-201801

PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)

main65632-58020iAGH30,AYH30,GGH30..RHD201801-202001

main65632-58020iGGH30..LHD201905-202001

RUSSIA SPEC&COLD AREA SPEC

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-58010iAGH30,AYH30,GGH30201501-201912

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-58010iAGH30,AYH30,GGH30201501-201912

76871SPOILER, REAR

main76085-58900-A0iAGH30,AYH30;GGH30..L,R,V201501-202001

WHITE PEARL CS.,070

main76085-58900-A1iAGH30,AYH30,GGH30..ALPHD201501-202001

LUXURY WHITE PEARL CS.GF.,086

main76085-58900-B0iAGH30,AYH30,GGH30201501-201801

SILVER ME.,1F7

main76085-58900-C0iAGH30,AYH30,GGH30201501-202001

BLACK,202

main76085-58900-C1iAGH30,AYH30,GGH30..R,S,Z201801-202001

SPARKLING BLACK PEARL CS.,220

main76085-58900-C2iAGH30,GGH30..VFIRE201501-202001

BURNING BLACK CS.GF,222

main76085-58900-D1iAYH30,GGH30..LHD..ALPHD201801-202001

DK.RED M.M,3Q3

main76085-58900-E2iAYH30..Q;AYH30..LHD..VFIRE;AGH30,GGH30..G,L,V201801-202001

STEEL BLONDE ME.,4X1

main76085-58900-E3iGGH30..ALPHD..8FC;AGH30,AYH30..G,L,V201801-202001

GRAPHITE ME.,4X7

main76085-58900-J0iGGH30..LHD201501-201801

GRAYISH BLUE M.M.,8V5

76887SEAL, REAR SPOILER

main76887-58050iAGH30,AYH30,GGH30201501-202001

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iAGH30,AYH30,GGH30201501-202001

76889HSEAL, REAR SPOILER, NO.1

main76889-28020iAGH30,AYH30,GGH30201501-202001

76893COVER, REAR SPOILER, NO.1

main76893-58030iAGH30,AYH30,GGH30201501-202001

8117

8502

8504

7681760030CLIP, BACK DOOR OUTSIDE GARNISH

main76817-60030

9010506333

main90105-06333

9015960602

main90159-60602

9017904001

main90179-04001

9018206011

main90182-06011

9018906155

main90189-06155

18 parts on this diagram · 3 diagrams in section
