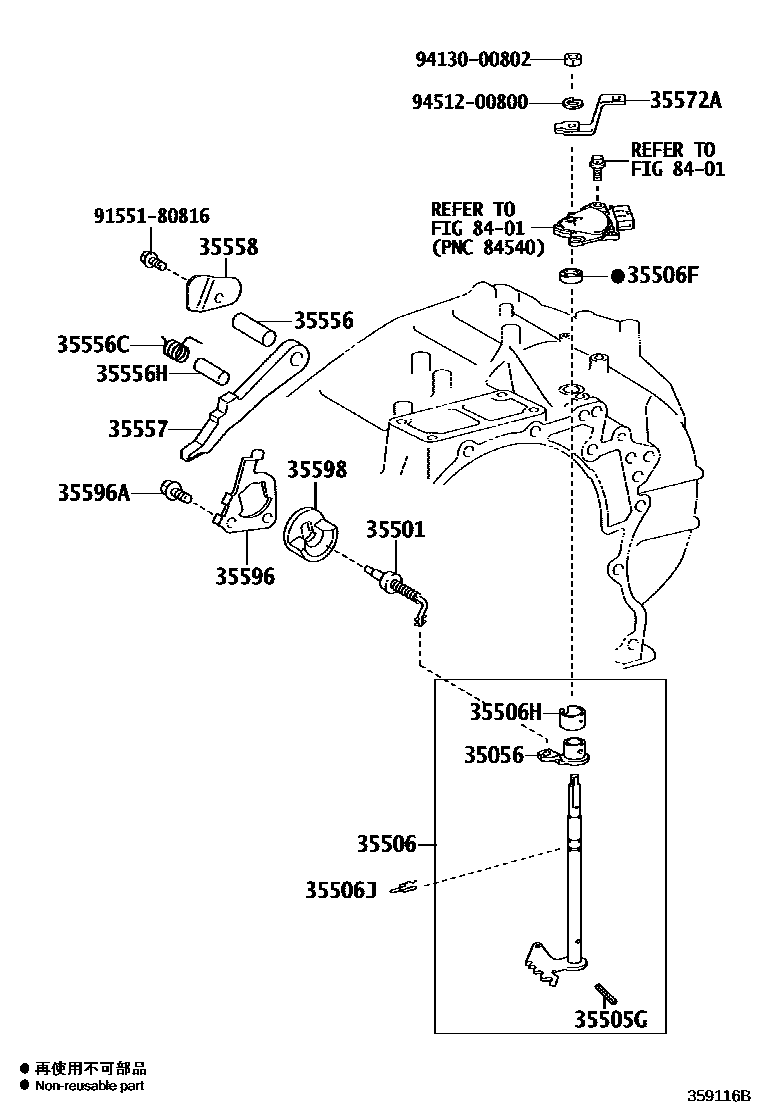

THROTTLE LINK & VALVE LEVER (ATM)
35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35501ROD SUB-ASSY, PARKING LOCK
35505LEVER SUB-ASSY, MANUAL VALVE
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
NO.2
NO.1
NO.1,TMC:REFER 35-01
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
TMC:REFER 35-01
AISIN AW:REFER 35-01
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
35556HSHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35558CLAMP, PAWL SHAFT
35572ALEVER, TRANSMISSION CONTROL SHAFT
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5
35598SLEEVE, PARKING LOCK
8401
9155180816
9413000802
9451200800
21 parts on this diagram · 2 diagrams in section
