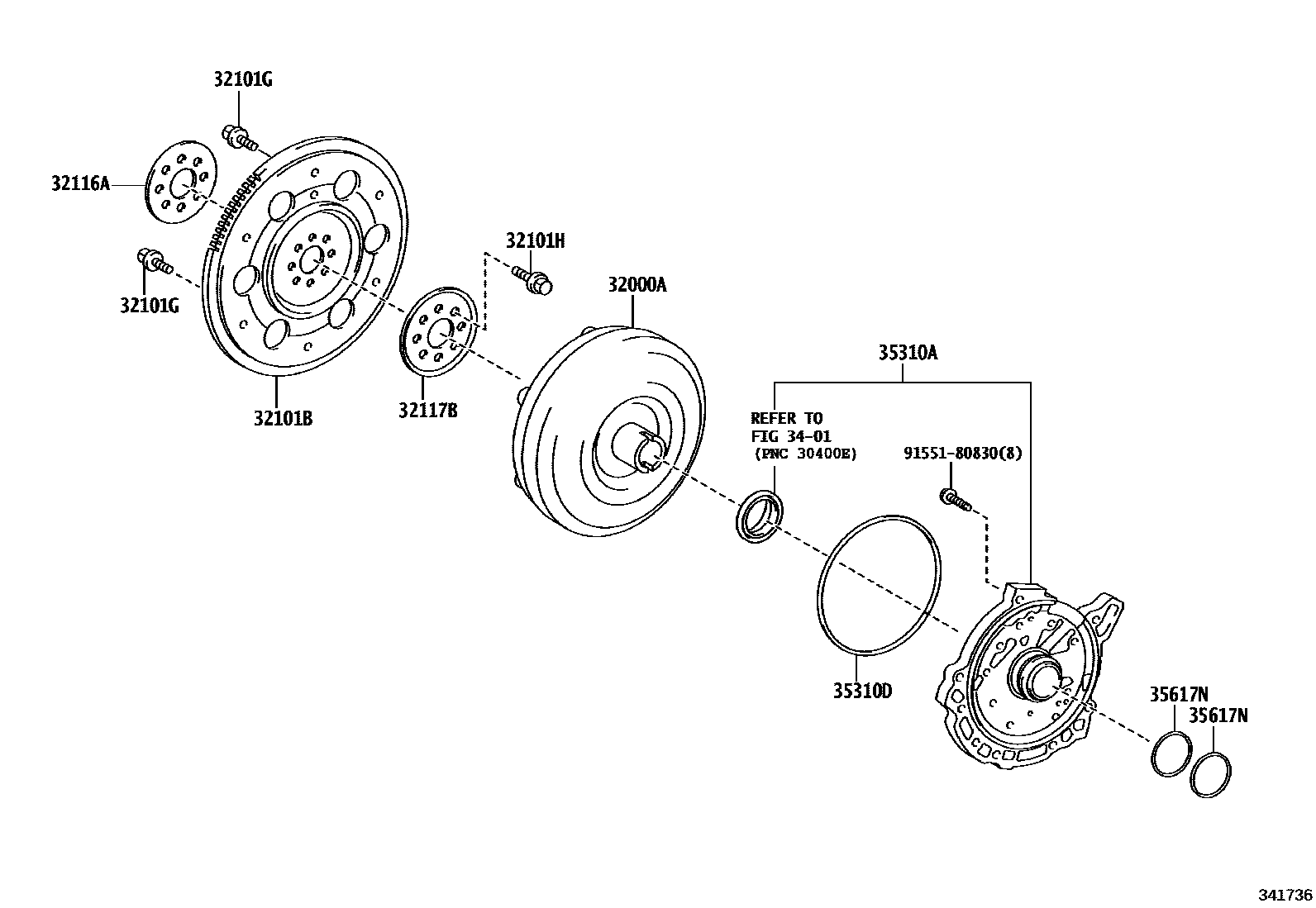

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-58010iAGH30201501-201601

sub32000-58011

main32000-58011iAGH30201601-202001

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-58011iAGH30201501-202001

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iAGH30201501-202001

*9-1.25PX12.4-7.3,BLACK

main90119-09025iAGH30201501-202001

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12384iAGH30201501-202001

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iAGH30201501-202001

32117BSPACER, DRIVE PLATE, REAR

main32117-06010iAGH30201501-202001

(L)

main32117-20060iAGH30202001

main32117-20060iAGH30201501-202001

(J)

3401

35310APUMP ASSY, FRONT OIL

main35310-28040iAGH30201501-201803

sub35310-28041

main35310-28041iAGH30201804-201912

35310DRING, O (FOR FRONT OIL PUMP)

main35697-28010iAGH30201501-201912

35617NRING, CLUTCH DRUM OIL SEAL

main35617-28020iAGH30201501-201912

9155180830

main91551-80830

11 parts on this diagram · 1 diagram in section
